The component was a burner buried inside the refinery’s gasifier, where residual heavy hydrocarbons, oxygen and water are reacted at temperatures around 1,100 degrees Celsius to produce the hydrogen required by the refining process. This part, supplied by the German original equipment manufacturer, was supposed to last thousands of hours.

A refinery could not economically operate around replacing a mission-critical component every two days. Without the gasifier, there was no hydrogen. Without hydrogen, the refinery could run on lighter feedstocks like synthetic crude but could not economically perform the job for which it had been built: converting Alberta bitumen into high-value products.

“You just wasted twelve billion dollars,” is how Ian McGregor remembers the stakes.

McGregor is an Alberta mechanical engineer, serial entrepreneur and industrial project developer who conceived the Northwest Sturgeon Refinery and helped develop the Alberta Carbon Trunk Line. When I visited him this summer at his Canadian Museum of Making in the foothills west of Calgary, we ended up talking about Sturgeon and the lessons it holds for nuclear power, an industry once again learning how to build large things.

Bitumen In, Diesel Out

Ian’s refinery began as four boxes drawn on a napkin to address one of Alberta’s longstanding goals: economic diversification. Alberta possesses one of the world’s largest petroleum resources but exports most of it as a raw material, bitumen.

At ambient temperatures, it is too viscous to flow through a pipeline and must first be blended with a much lighter hydrocarbon, called a diluent, at a near 3:1 ratio.

Thus, a relatively low-value raw material is made substantially larger in volume so it can be shipped thousands of kilometres to somebody else’s refinery, where the diluent is removed, and the high-value processing occurs.

McGregor’s napkin solution was essentially bitumen in and low-sulphur diesel out.

Subscribe now

The refinery he eventually built was considerably more complicated. Rather than use a conventional coker, which rejects the heaviest fraction of the bitumen barrel as petroleum coke, Sturgeon was designed around hydrogen addition, breaking large hydrocarbon molecules apart and adding hydrogen to produce lighter products.

The hydrogen itself would be made in the gasifier from the bottom of the bitumen barrel rather than from natural gas. This also produced a concentrated stream of CO2 which could be captured and sent down the associated Alberta Carbon Trunk Line for geological storage and enhanced oil recovery. The refinery was designed to capture around 4,000 tonnes of CO2 per day.

Seven Thousand Pieces of Equipment

Ian’s four boxes were becoming a fairly complicated machine.

McGregor estimates that roughly 100 million person-hours went into the refinery between fabrication shops and field construction. Some 1,434 large modules were assembled at site, many around 20 feet wide, 20 feet high and more than 100 feet long.

His favourite statistic is that the refinery contained roughly 7,000 individual pieces of equipment costing more than $100,000 each.

This helps explain why megaproject estimates have a habit of deteriorating as construction proceeds.

A conceptual design can be surprisingly compact. Engineering gradually reveals the thousands of pumps, valves, heat exchangers, electrical systems, control systems, structural supports, pipes and instruments required to make the boxes on a process diagram become a functioning industrial plant.

On Sturgeon, McGregor estimates around $100 million had been spent by the time the first serious project cost estimate was assembled. That sounds like an extraordinary amount of money. It was in fact nowhere near enough. The final engineering bill was closer to $1 billion.

Finishing all of that engineering before construction would have substantially improved project definition, but it would also have required investors to risk a billion dollars before knowing whether the project would ever proceed. McGregor’s experience was therefore similar to that of many large industrial projects: engineering continued while procurement and construction were already underway.

That creates a secondory problem. A module may be scheduled to leave a fabrication shop while a large heat exchanger destined for its interior is still somewhere in Italy. Thousands of workers at site are waiting for the module and delaying shipment can disrupt an entire construction sequence. So the module is shipped incomplete.

The heat exchanger, however, arrives three months later. By then the surrounding structure may be eight storeys high and the project team is left figuring out how to install equipment in a space that was intended to receive it when the module was still lying on the shop floor.

Looking back, McGregor thinks the expediting department may have been one of the most important organizations on the entire project.

Making Your Own Weather

Sturgeon employed around 7,000 people at peak construction. There were nowhere near enough electricians, pipefitters and other skilled trades sitting idle around Edmonton waiting for a call.

Workers were drawn from the neighbouring provinces of Saskatchewan, British Columbia, Manitoba and later Ontario and Newfoundland. They arrived capable of doing the work but unfamiliar with the site, the systems and the teams around them. By the time a worker became fully productive, the particular phase of construction that required him might already be approaching completion.

The sheer scale of a megaproject, in McGregor words “made its own weather,” by altering the labour market assumptions on which its original estimate had been based.

The same problem existed inside the organization managing it. A megaproject creates a temporary institution composed largely of people who have never worked together and then asks them to execute one of the most complicated activities undertaken by an industrial economy.

Systems for cost control, procurement, engineering and construction management were being developed at the same time that the project was advancing. McGregor had spent his career building industrial businesses, however, the major engineering, procurement and construction contractors across the table had decades of experience negotiating contracts and were very good at protecting their margins.

The Edmonton Manhattan Project

The German gasification technology Sturgeon purchased came from one of the most experienced suppliers in the world. Germany’s historical expertise was based on its struggles in the Second World War to alleviate chronic shortages of petroleum with coal-based synthetic fuels at industrial scale. Its technological lineage stretched back many decades and the process itself was well established.

Although rated for 2000 hours of service the burners failed in just forty. The refinery went off line and interest during construction kept accumulating at a rate of roughly one million dollars per day.

McGregor gathered half a dozen of the smartest engineers and technical specialists he knew and decided they would solve the problem themselves.

The effort lasted 279 days.

The team spent around $12 million running finite element analysis and computational fluid dynamics models, working through heat transfer, fluid velocities, materials and geometry.

The burner contained a narrow water jacket which had to keep cooling water moving at roughly 80 metres per second in a wafer thin hydraulic window: too slow and heat transfer failed; too fast and pressure losses risked local boiling. The geometry controlling that flow had to be held to around one tenth of a millimetre.

Then the engineers confronted the inconvenient reality that their drawings had to be manufactured. The final welding assembly caused roughly six millimetres of shrinkage.

McGregor brought in an experienced engineer/welder named Brett Jackson who he describes as the Leonardo da Vinci of his trade. During their twice daily meetings after the computer specialists finished presenting their latest design McGregor would look over and ask whether Brett could actually build it. Often the answer was no, and the engineers went back to work.

Eventually Brett developed a welding sequence that anticipated the distortion, alternating where heat was applied and gradually bringing the finished component into tolerance.

The lesson is familiar across advanced industrial technologies. Drawings, computer models and specifications capture an enormous amount of knowledge, but never all of it. The remainder lives as esoteric knowledge in experienced people who can sense for example how metal behaves under a welding torch.

The redesigned version of the part that failed in 40 yours now runs for 8,000 to 10,000 hours.

The Long Tail

Sturgeon became an irresistible target for the media during its troubled construction and commissioning. The project ran far over its original budget and the burner failures arrived after most of the capital had already been spent. McGregor turned off his hearing aids and kept working.

Today the refinery is operated by Canadian Natural Resources, one of the most experienced oil sands operators in the world. McGregor sold his interest in 2021 and no longer has access to its detailed operating data, but says that over the last five years the facility has matured into a highly productive asset running above its original design capacity.

With 7,000 major pieces of equipment, initial commissioning does not reveal the full capacity of a plant. Operators continuously learn through failures, maintenance outages, modifications and successive turnarounds.

That creates a peculiar mismatch between the economics of megaprojects and the institutions expected to build them. A refinery, railway or nuclear plant can operate for many decades. Its worst financial years are often concentrated near the beginning, when capital is being spent, interest is accumulating and the plant is producing little or nothing.

Those years also happen to overlap almost perfectly with the career horizon of the executive asked to approve it.

The CEO who is asked to spend several hundred million dollars advancing a project toward a final investment decision is aware that the worst problems will probably arrive four or five years from now. This while approaching the end of their tenure with a substantial portion of their compensation still tied to the company’s performance. There are safer ways to finish a career.

Discounted cash flow adds a second bias against the long-lived asset. At a 10 percent discount rate, revenues several decades into the future contribute very little to present value even when the physical plant may still have generations of useful life ahead of it.

The institution with the longest time horizon is ultimately the state. This is one reason railways, canals, power systems and other infrastructure central to national development have so often involved governments as financiers, customers, guarantors or owners. Their economics unfold over periods much longer than a corporate planning cycle.

The Canadian Pacific Railway, for example, was initially expected to cost roughly $100 million. By the time the last spike was driven in 1885, the main line and its equipment had cost closer to $150 million, repeatedly forcing Ottawa to rescue a company whose failure had become politically and economically unthinkable.

Railway politics had already brought down one Canadian government in the Pacific Scandal of 1873. A century and a half later, on the eve of its merger with Kansas City Southern, CP was worth roughly US$50 billion, and Canada itself was scarcely imaginable without the railway.

Back to Nuclear

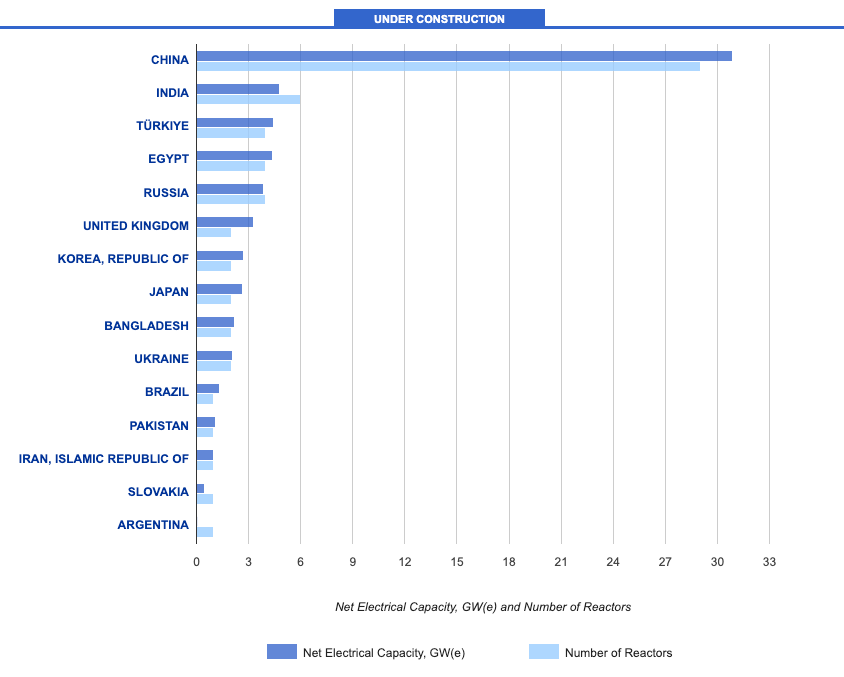

Canada is returning to nuclear construction after a long pause. Ontario is building the first BWRX-300 at Darlington while simultaneously preparing for large reactor projects and continuing the refurbishment of much of its existing CANDU fleet.

The nuclear industry already has spent insufficient time debating first-of-a-kind technology risk. McGregor’s experience suggests the category should be expanded further.

A project organization can also be first of a kind. So can a supply chain that has forgotten how to manufacture a component, a construction workforce assembled for the first time or an owner organization without recent experience delivering a greenfield megaproject.

None of this precludes large projects. Sturgeon was built and operates beyond expectations. The near catastrophe of its failed gasifier burners was resolved in an Edmonton machine shop by a combination of advanced computer modelling, experienced engineers and an unusually talented welder.

Canada once possessed a wealth of people with this kind of experience across mining, pipelines, refining, hydroelectricity and nuclear power. Many are now retired or approaching the end of their careers.

The next generation will acquire the same knowledge in much the same way the previous one did: by building things, discovering that some of their assumptions were wrong, fixing them and building again.

Megaprojects will continue to make their own weather. The countries capable of enduring the storm will be the ones that will learn how to build them again.

Like this post to mega-help the Decouple project

Westinghouse Electric Company has confidentially filed for an IPO. The nuclear business which was severed from its industrial parent the Westinghouse Electric Corporation nearly three decades after its transformation into CBS will have a tricky pitch to public markets.

That story will rest heavily on the promise of a nuclear revival, and on its ability to deliver some of the world’s most complex industrial projects on reasonable timelines and at reasonable cost.

That challenge, however, is unfolding in the context of the decades long deindustrialization of the United States, characterized in particular by the erosion of its manufacturing and construction capacity on which projects like nuclear power plants depend.

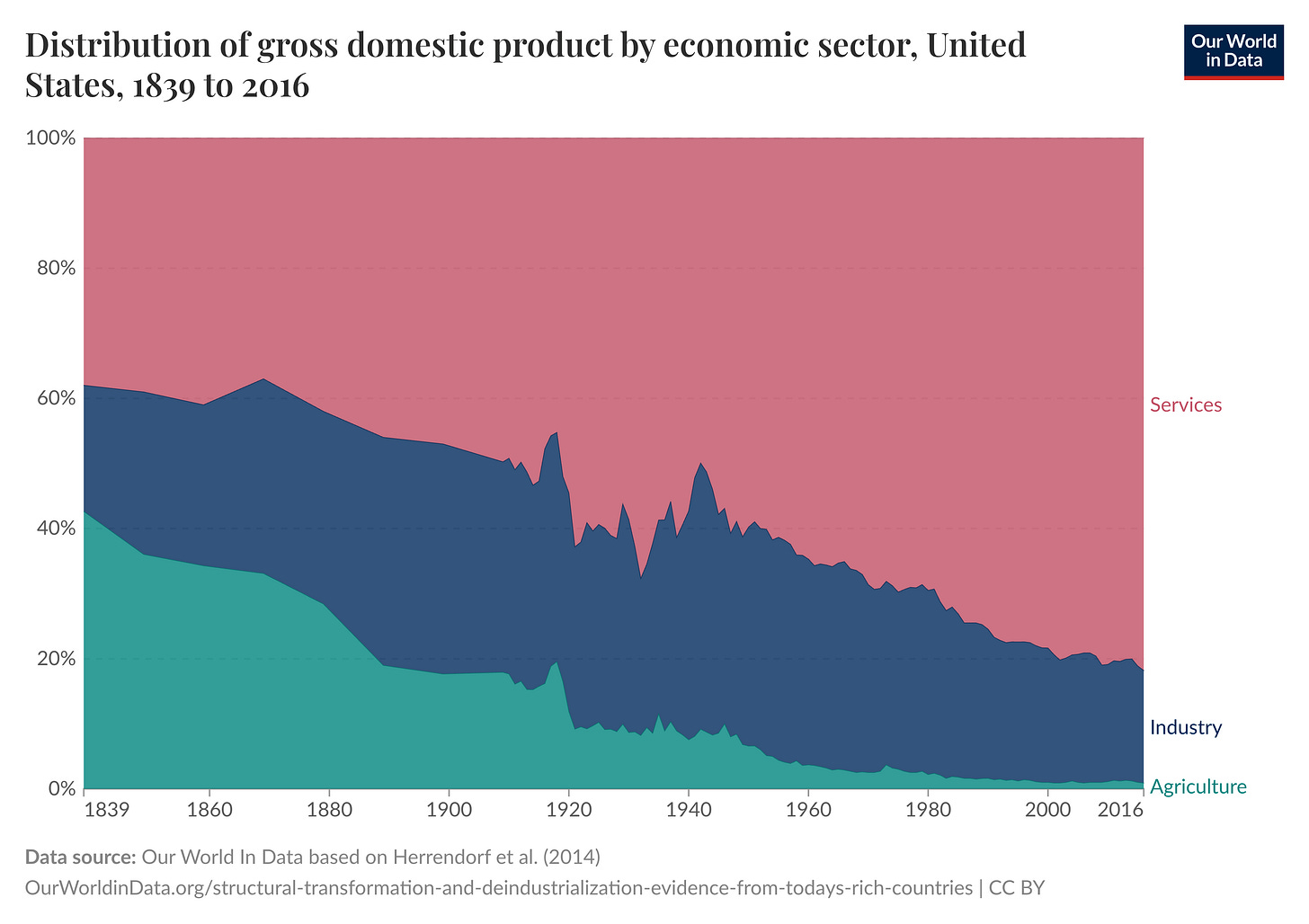

Few companies illustrate the economic transformation of the United States from industrial powerhouse to a service and finance dominated economy more vividly than the 111 year history of the Westinghouse Electric Corporation.

To understand the predicament facing the nuclear company that carries George Westinghouse’s name today, it is worth following what happened to the industrial empire from which it was cut loose.

From Industrial Giant to a Media and Entertainment Company

On December 1, 1997, the Westinghouse Electric Corporation’s ticker symbol WX vanished from the New York Stock Exchange, replaced by CBS, the symbol of the television network it had acquired just 2 years earlier. Corporate headquarters moved from Pittsburgh, the Iron City, to New York.

While the nuclear division, amputated from the parent company and sold in 1999, carried the founder’s name and survives as the Cameco and Brookfield owned Westinghouse Electric Company, the corporate lineage runs through legal succession.

By that test the true heir is Paramount Skydance, at the end of the chain from CBS through Viacom. Paramount’s 10-K still discloses roughly 18,000 pending asbestos claims from turbine and marine insulation sold before the early 1970s, and names Westinghouse as its predecessor.

The firm that once built much of the physical apparatus of an industrializing nation now reports its earnings as a broadcaster.

The Origin Story

George Westinghouse, the founder of over 60 companies including the Westinghouse Electric Company incorporated in 1886, made the commercial breakthrough that would become the springboard for his next endeavours with the railroad air brake he patented in 1869.

It was a revolutionary technology that replaced the brakeman, who ran along the roofs of moving cars to set each brake by hand, with a compressed-air line that let the engineer stop the entire train in one operation from the locomotive.

Playing with Fire

Although best known for his pioneering work in electricity and his victory in the war of the currents, the inventor first took on natural gas. In 1883 Westinghouse drilled for gas in the backyard of his estate in Point Breeze, the affluent East End district where Gilded Age coking coal and ketchup industrialists Frick and Heinz kept their mansions.

He struck a roarer estimated at 20 million cubic feet a day. The well escaped uncontrolled for nearly a week before Westinghouse devised a stopcock and brought it under control.

He then erected a sixty-foot pipe and staged evening illumination tests, sending a pillar of flame another hundred feet into the air. The demonstrations were reportedly bright enough for people a mile away to read newspaper print, but the noise soon prompted Westinghouse to end them.

He went on to invent the reduction valve that let his gas travel through pipes at high pressure and arrive at the home at low pressure, the meter that measured what each customer burned, and the automatic cutoff that shut the main when pressure dropped.

By 1887 his company operated 58 wells and 184 miles of distribution piping serving more than 12,000 homes and 582 industrial customers.

Subscribe now

Building the AC grid

The gas business gave Westinghouse direct experience with a networked energy system: production, long-distance transmission, pressure control, metering, leak detection and delivery to dispersed customers.

The reduction valve may have supplied Westinghouse with a useful analogy for AC distribution: carry energy efficiently at high pressure or voltage, then reduce it near the point of use.

Westinghouse financed William Stanley’s improvements to imported European transformers and generators, then licensed Nikola Tesla’s polyphase patents, which supplied AC with what it had lacked: practical motors capable of transforming electricity from a lighting system into a source of industrial power.

Westinghouse equipment illuminated the World’s Columbian Exposition in Chicago in 1893 and helped harness Niagara Falls two years later. The company supplied the full stack of turbines, generators, transformers, switchgear and motors that began to electrify American society.

George Westinghouse lost control of the company during the financial crisis of 1907 and died in 1914 at the age of 67. By then, Westinghouse Electric employed more than 50,000 people and ranked among the largest industrial corporations in the United States.

Creating Demand for Supply

As the American economy grew a middle class with disposable income, the demand side of electrification opened for business. Utilities of the era were desperate to flatten a load curve dominated by the evening lighting peak. Westinghouse had a double incentive to fill it: every appliance sold was a source of dual revenue as it also represented more electrical load, which meant more orders for the generators and transformers that were the company’s core product.

Radio was the breakthrough household electrical product. In 1920 the company launched KDKA in Pittsburgh, one of the first commercial broadcast stations in the world, in part to give people a reason to buy the Westinghouse receivers sitting in stores.

Household amenities followed, including refrigerators, washing machines, stoves, irons, air conditioners and heaters woven into its ultimate branding expression which would delight climate activists today: the “Westinghouse Total Electric Home.”

The Military-Industrial Complex

The state became the next great customer. During the Second World War the company turned its plants over to the war effort, and annual sales climbed from $239 million in 1940 to $835 million by 1944.

That relationship solidified into the postwar procurement structure and Westinghouse stayed inside it with a product catalogue of jet engines, radar, and defence electronics.

The same posture took the company into civilian nuclear power, where the federal government underwrote the early reactor program and absorbed much of its risk. Westinghouse’s Bettis Atomic Power Laboratory, run under contract to the Atomic Energy Commission, developed the pressurized water reactor (PWR) that drove the submarine Nautilus in 1955. When Admiral Rickover was handed the civilian demonstration project, he brought the same lab and the same design with him.

The result was Shippingport which began operating in 1957. The PWR went on to become the dominant commercial reactor design in the United States and around the world.

At its mid-century height the company employed over 100,000 people and was the largest private employer in the Pittsburgh region. Every phase of its growth was reflective of whatever the American economy was organizing itself around: railroads, gas, the grid, consumer durables, then the military-industrial complex and nuclear power.

Share

The Uranium Cartel that Nearly Broke the Business

The decline came in dribs and drabs. Nuclear power was one of the first casualties. To win reactor orders through the 1960s and early 1970s, Westinghouse had sweetened the sales pitch by promising to supply the uranium fuel at fixed prices of around $10 a pound, on the assumption that uranium would stay cheap.

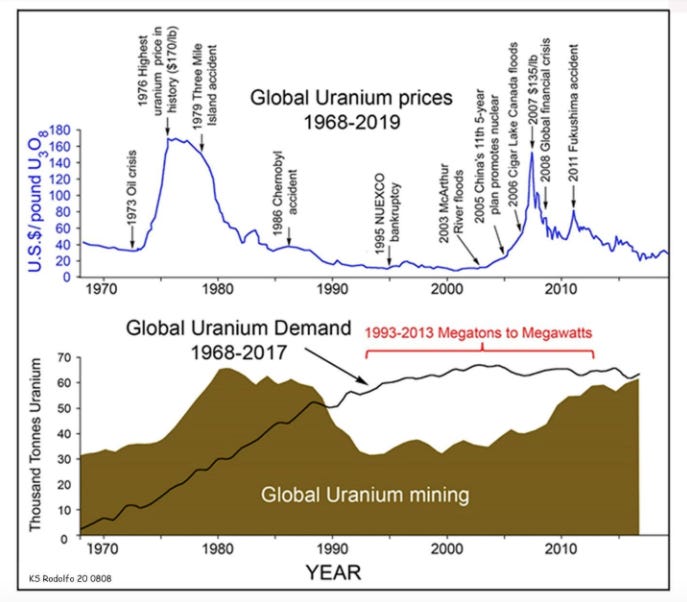

As a result of the 1973 oil embargo and the operations of the “Yellow Cartel,” a government-backed alliance of Canadian, French, Australian and southern African uranium producers, the spot price climbed past $40 a pound.

Westinghouse found itself committed to delivering tens of millions of pounds of uranium that it did not own at a small fraction of what it would now cost to buy. This ultimately resulted in a settlement of approximately $1 billion with 27 utilities paid in cash, uranium, and services.

Next came the downturn in electricity demand, which had been doubling every decade. Construction cost escalation and the regulatory ratchet before and after the Three Mile Island accident added insult to injury and reactor orders dried up.

Foreign and domestic competitors, particularly General Electric, began to take bites out of the heavy electrical equipment sector that had been the company’s core business. Industrial margins compressed across the American economy in the same decade. Westinghouse responded the way much of corporate America did, by reaching for easier returns in finance.

Financialization, Crisis and Rebirth

The Westinghouse Credit Corporation, originally a vehicle to finance purchases of the company’s own consumer products, moved into high-return ventures like hotels, shopping centers, and junk bonds that conventional banks avoided.

For most of the 1980s the financing arm supplied the earnings that its industrial base struggled to produce. When the commercial real estate market crashed in 1990, the company had to absorb more than $1 billion in bad loans, its worst loss since the uranium settlements.

Michael Jordan, president of Frito-Lay and PepsiCo, was brought in to rescue Westinghouse in 1993. He drew a similar conclusion to many managers across the country: manufacturing was a low-growth, capital-heavy business, and media carried higher earnings multiples.

From Yellowcake to Yellowstone

Between 1995 and 1997 Westinghouse spent more than $15 billion buying broadcasters, starting with the CBS television network for $5.4 billion and adding cable channels and radio groups ultimately rebranding as Paramount. It paid for the spree by selling the industrial company piece by piece.

The defence electronics unit went to Northrop Grumman in 1996. Thermo King refrigeration was sold to Ingersoll-Rand in 1997. The power generation business, the turbines that had lit American cities since the 1890s, was acquired by Siemens of Germany in 1998.

The last industrial asset to go was the nuclear business, sold to British Nuclear Fuels Limited (BNFL) in 1999 for $1.1 billion, and the Westinghouse Electric Company name went with it.

The remaining businesses that bore the great inventor’s name rings particularly hollow. The Westinghouse Licensing Corporation rents the trademark to outside manufacturers for royalties: Westinghouse TV is now part of China’s TongFang global portfolio. Westinghouse generators are designed in the USA but assembled in China and Vietnam.

The Nuclear Revival?

As for the amputated nuclear division, BNFL sold it to Toshiba in 2006 for $5.4 billion, a price that assumed a nuclear construction revival. The revival came eventually, but not in the United States.

That same year China chose Westinghouse’s flagship AP1000 as the technology base for its generation 3 reactor program. The price was the design itself. Toshiba, which had completed its purchase of Westinghouse weeks before the agreement was signed, handed some 75,000 technical documents to the State Nuclear Power Technology Corporation, a firm Beijing created for the purpose, and conceded Chinese intellectual property rights to any derivative above 1,350 MWe.

China absorbed the design across the four first-of-a-kind units, drove domestic content past 90%, and named the indigenized version the CAP1000. As of 2026, the four original AP1000s are operating, the first CAP1000s are in commissioning, roughly a dozen more are under construction on 5-year build schedules, and the CAP1400, the larger derivative China owns outright, is entering service.

Toshiba’s Westinghouse went bankrupt building four AP1000s in the USA. The fixed-price construction contracts it absorbed in 2015 coupled with an incomplete design during construction and poor module fabrication at a hollowed-out domestic supplier put the company into Chapter 11 bankruptcy in 2017. Only the two reactors at Vogtle were ultimately finished.

More recently, Brookfield Business Partners bought Westinghouse out of bankruptcy in 2018 for $4.6 billion and sold it in 2023 to Cameco and Brookfield Renewable Partners for $7.9 billion including debt.

The Metamorphosis and the Chinese Butterfly

Westinghouse engineered much of the gas network and the electric grid when the United States led the world in heavy industry and manufactured home appliances for a burgeoning consumer society. It armed the state and built reactors when federal procurement organized the postwar economy and it financialized when industry and manufacturing profits stalled. Finally, it liquidated its entire industrial stack to become a content creation and streaming company as the US economy offshored much of its industrial base.

Now 30 years after the Westinghouse ticker WX disappeared from the New York Stock Exchange its hived off nuclear division is returning into the public markets.

The irony of whatever valuation the Westinghouse Electric Company achieves is that a little over a century later the industrial ambition its namesake the great George Westinghouse embodied is practiced most successfully not by American private capital, but by the state-directed industrial capitalism of the People’s Republic of China.

Like this post! You don’t have to choose between entertaining writing and industrial literacy.

Fusion was experimentally demonstrated four years before nuclear fission, yet fission moved from laboratory discovery to a self-sustaining chain reaction, weapons, naval propulsion and commercial electricity within roughly two decades.

Almost a century after the first laboratory fusion reactions demonstrated in 1933 by Ernest Lawrence and his Berkley cyclotron team, there is still no fusion power plant.

Producing fusion reactions was never particularly difficult. The challenge is to make them self-sustaining, to produce more energy than the machines that produce the challenging conditions for fusion reactions consume and finally to surround them with machinery capable of reliably converting their energy into useful electricity.

The National Ignition Facility’s achievement in December 2022 marked a significant change in that history. Its 192 laser beams delivered just over two megajoules (MJ) to a tiny capsule of deuterium and tritium, producing 8 MJ of energy from fusion. The problem is that the lasers consumed 300 MJ of electricity and perhaps more importantly that the reaction lasted only a few trillionths of a second.

It was nevertheless the first laboratory demonstration of an ignited fusion reaction in which the energy released by fusion products, roughly 20% alpha and 80% neutrons, substantially heated the remaining fuel in order to drive additional fusion in a self-sustaining fashion.

The appropriate historical comparison is Chicago Pile-1, Enrico Fermi’s graphite and uranium assembly beneath the stands of the University of Chicago’s football stadium. Its first criticality in 1942 reached 28 minutes before operators shut it down having demonstrated the world’s first controlled fission chain reaction.

The Chicago Pile produced no useful power and the light bulbs in the building consumed far more electricity than the reactor released as heat, however, Its importance lay in demonstrating that a nuclear fission reaction could sustain itself.

NIF has now done something analogous for inertial fusion, although in a burst lasting picoseconds rather than a leisurely half hour chain reaction.

We are a long way from Fusion’s Shippingport moment.

The following essay is based upon my Decouple Podcast interview with Gerrit Bruhaug, Senior Experimental Target Physicist at Xcimer Energy Corporation.

Really hard fire

The basic idea of fusion is in one respect more intuitive and familiar than fission. After all, physicists in the 1930’s worked out that the Sun is powered by light nuclei releasing energy when combined into heavier ones. Fission, by comparison, resembles witchcraft: arranging the rocks in the correct geometry, introducing a neutron source, and unleashing nuclear reactions.

Fission, however, takes place at room temperature because an uncharged neutron can enter a heavy nucleus without having to overcome its positive electrical charge. The resulting instability and splitting releases additional neutrons which can continue the chain reaction if the geometry of the reactor is adequate.

Fusion requires positively charged nuclei to approach one another closely enough for the strong nuclear force to overcome their electrostatic repulsion. At nuclear distances, the electrical repulsion between just two protons can amount to hundreds of newtons, equivalent to the weight of tens of kilograms, acting between unimaginably small particles.

The fuel must therefore be heated until nuclei vibrate and move at extraordinary speeds. At the same time, the resulting plasma must be held together at sufficient density, and for sufficient duration, to generate and retain more heat internally than it loses to its surroundings.

These requirements are summarized by the Lawson criterion, which combines temperature, density and confinement time.

The Sun achieves fusion due to its immense gravity. Its temperature is very modest by terrestrial fusion standards, the volumetric power density at its core is surprisingly low, less than that of a human body, but gravitational pressure confines a colossal volume of fuel over astronomical time periods while the Sun’s size traps much of the radiation produced in its interior.

A terrestrial reactor must reproduce the necessary combination of heat, pressure and time inside an engineered machine rather than a star.

The two leading approaches occupy opposite ends of this trade-off.

Magnetic confinement heats a diffuse plasma to temperatures well beyond those in the solar core and attempts to hold it using powerful magnetic fields.

Inertial confinement compresses a tiny amount of fuel to extreme density for a fraction of a billionth of a second. The first is an attempt to hold an impossibly hot fire in a magnetic bottle; the second is closer to a microscopic internal combustion engine whose laser spark plugs ignite microscopic hydrogen bombs rather than gasoline.

A diamond capsule in a gold oven

The National Ignition Facility illustrates both how far fusion physics has advanced and yet how much engineering separates an experiment from a viable power plant. At the centre of its target chamber sits a hollow diamond capsule fuel element only a few millimetres across, filled with deuterium and tritium and cooled to approximately 18 kelvin so that the fuel freezes into a precise layer along its interior. The capsule is mounted inside a small gold cylinder known as a hohlraum, the German word for a hollow space.

NIF’s lasers do not directly strike and heat the fusion fuel. They enter the hohlraum and hit its gold lined inner wall, converting laser light into X-rays. Those X-rays ablate the outer surface of the diamond capsule, sending material outward and driving the rest of the capsule inward in accordance with Newton’s third law.

The arrangement functions like a rocket firing spherically toward its own centre. If the implosion remains sufficiently symmetrical, the compressed core reaches fusion conditions and a burn wave begins moving into the surrounding fuel.

The capsule’s surface must be manufactured to extraordinary tolerances and the frozen fuel layer must be highly uniform. The target must be positioned precisely at the centre of a large chamber and struck almost simultaneously from many directions. Slight imperfections in the capsule, ice layer, laser pulse or X-ray field can amplify during compression and prevent ignition.

NIF performs approximately 400 individual experimental shots per year using equipment designed around national-security science rather than electricity generation. A power plant would have to produce targets cheaply in large quantities, inject them several times per second, track their position, hit each one accurately, clear the chamber and repeat the process continuously. To run at a 90% capacity factor that would require more than 85 million shots per year.

The scale of each event would also increase. NIF has deliberately been built near the minimum size believed capable of ignition, which leaves it operating close to the threshold where small imperfections can determine success or failure.

A commercial inertial-fusion machine would probably use larger drivers and targets to obtain far higher gain. Individual pulses could release gigajoules of energy, the equivalent of hundreds of kilograms of TNT, inside the reaction chamber. The chamber would have to absorb the resulting X-ray and neutron pulse without eroding rapidly, while delivering the heat into a working fluid and remaining clear enough for the next target to arrive.

Magnetic fusion avoids the need to manufacture and detonate precision targets, but substitutes a different group of problems. Its plasma must remain stable despite a range of instabilities that cause heat and particles to escape confinement. Helium produced by the fusion reaction must be removed while fresh fuel is added.

The exhaust is directed toward a divertor whose surfaces can experience heat fluxes comparable to those encountered during spacecraft re-entry. Superconducting magnets must operate near absolute zero temperatures close enough to confine the plasma while being protected from high-energy neutrons that damage materials and degrade electrical insulation.

Fusion has taken so long because the reaction occurs under conditions that destroy the machine producing it. Gas turbines waited for alloys, cooling passages and manufacturing precision capable of allowing turbine blades to operate in gas hotter than the metal’s melting point.

Fusion faces an analogous materials challenge, but with plasma temperatures measured in millions of degrees, intense neutron bombardment and components that may have to be replaced remotely from inside an neutron activated radioactive structure.

Breakeven’s moving boundary

The word “breakeven” obscures these distinctions by applying the same label to several different development milestones.

The lowest threshold is sometimes called scientific breakeven: the fusion energy released equals the energy delivered directly to the target or plasma. This is a deliberately narrow accounting boundary.

Ignition describes the physical character of the reaction rather than the overall energy balance. In deuterium-tritium fusion, the reaction produces a helium nucleus, or alpha particle, and a high-energy neutron. The charged alpha remains within the fuel long enough to deposit its energy, raising the temperature and causing more fusion. When that internal heating becomes sufficient to sustain or propagate the burn, the fuel has ignited. Scientific breakeven and ignition are related, but one is an accounting threshold and the other describes the onset of substantial self-propogation of the fusion reaction.

Engineering breakeven expands the boundary to the whole facility. The plant must produce enough usable energy to operate its plasma heaters or lasers, superconducting magnets, cryogenic systems, vacuum pumps, cooling circuits, fuel-processing equipment and other auxiliary loads. It must then overcome the losses involved in converting heat into electricity through a rankine or brayton cycle. NIF is nowhere near this threshold. Magnetic confinement has not yet achieved an ignited plasma, although several proposed machines intend to move directly toward facilities with much more integrated engineering objectives.

Commercial breakeven lies further away again. A machine could produce more electricity than it consumed while remaining economically useless because its targets, magnets or internal components were too expensive, its maintenance outages too long or its capital cost too high.

A commercial plant must be sufficiently profitable, while competing against mature, established forms of power generation, to recover its construction and financing costs while providing reliable output over decades. It is the difference between an engine that turns over on a test stand and one that can be manufactured, certified, maintained and operated profitably across a fleet.

Fusion has therefore remained early in the technology-development cycle. It has demonstrated individual fusion reactions for many decades, achieved target-level gain and ignition in inertial confinement, but has not yet achieved engineering breakeven, closed its fuel cycle or operated an integrated pilot plant.

The reactor as fuel factory

The fuel cycle is a particularly important example of the distance between the physics experiment and the power plant. Fusion is commonly described as burning hydrogen extracted from water, creating an impression of almost effortless fuel abundance.

Deuterium is indeed present in seawater in a 1:6420 ratio and there are a variety of commercial processes by which to concentrate it. The most favourable fusion reaction available on Earth, however, combines deuterium with tritium, a very rare radioactive isotope of hydrogen with a half-life of roughly twelve years.

Tritium exists naturally only in trace quantities. Heavy-water reactors, including Canada’s CANDU fleet, produce it as a by-product and could provide startup inventories for early fusion machines, but not enough to fuel a large global industry.

Indeed it is estimated that if the world’s entire existing heavy water reactor tritium production were entirely diverted to fusion it could support about 20MW of power.

Therefore, a deuterium-tritium reactor must ultimately breed its own tritium by capturing fusion neutrons in lithium surrounding the reaction chamber. The newly created tritium must then be extracted from the blanket, separated chemically, purified and fed back into the machine.

This turns the breeding blanket into one of the reactor’s most heavily burdened components. It must capture neutrons efficiently enough to replace every tritium atom consumed after allowing for leakage, processing losses and radioactive decay.

It also must absorb fusion heat, protect magnets and other equipment from radiation, retain structural integrity under neutron bombardment and permit the tritium to be removed continuously. Tritium itself readily permeates metals and becomes trapped in components, making the total inventory and processing time important constraints on how rapidly a fleet could expand.

Unlike fission where fissile uranium is abundant and breeder reactors are a long term hedge against eventual depletion, fusion depends on a breeder cycle. Compared to other forms of fusion reactions like deuterium-deuterium, the deuterium-tritium reaction is comparatively easy to ignite, but it transfers complexity into the fuel cycle.

This means that a practical fusion plant must simultaneously be a plasma device, neutron source, heat engine, lithium breeder and radioactive hydrogen processing facility.

From early confidence to engineering reality

The slow timeline was not anticipated by fusion’s pioneers. The rapid progress from fission discovery through the Manhattan Project encouraged a belief that controlled fusion would follow on a similar schedule. Early magnetic programs were initially classified because governments expected the technology to arrive quickly enough to carry strategic value. Once researchers began encountering the depth of plasma instabilities, secrecy became less useful than international collaboration.

Laser fusion passed through its own early period of exuberance. KMS Fusion, founded in 1969, was the first private fusion startup and emerged shortly after the first major proposals for laser-driven inertial confinement. Its backers believed the approach might achieve useful fusion within a decade and overtake the magnetic programs that were already struggling with plasma confinement.

The history is strikingly modern: private capital, ambitious timelines and the expectation that a novel technical approach could leapfrog slow government laboratories. The principal difference is that this occurred more than half a century ago.

Those researchers were not necessarily dishonest about the promise of their work. They were operating before experiments had exposed the full set of coupled constraints. Producing a compressed plasma did not by itself solve implosion symmetry, target fabrication, driver efficiency, chamber survival, tritium breeding or repetitive operation. Each advance revealed the next system that had to be developed, tested and integrated.

The present fusion boom rests on a stronger scientific and industrial foundation than its predecessors. Ignition has been demonstrated. High-temperature superconductors permit stronger magnetic fields. Lasers, pulsed-power systems, simulation and precision manufacturing have advanced substantially.

Private companies are testing a much wider range of approaches with levels of capital unavailable to earlier programs. The field is no longer asking whether controlled fusion reactions are possible, but which machine architecture can turn them into an energy system.

This remains, however, a long-term industrial wager rather than a near-term electricity solution.

The engineering work to get to commercial power production, much like space programs, will produce valuable secondary capabilities in magnets, lasers, materials, computation and high-energy-density physics. These benefits justify serious public and private investment even if the first plants are expensive and arrive later than their developers predict.

What fusion should not provide is an excuse to neglect existing sources of firm, low-carbon electricity. Germany’s willingness to fund fusion research while dismantling operating fission reactors is a bizarre paradox. The prospect of eventually burning hydrogen isotopes competitively does not compensate for destroying one of the world’s best operating nuclear fleets.

NIF’s ignition result deserves celebration but also should generate humility. A decisive physics threshold has been crossed in inertial confinement. The work now moves outward from the fuel capsule into the chamber walls, breeding blanket, coolant system, turbine hall, maintenance program and supply chain.

That may well take twenty more years.

The economic damages resulting from sanctions alone have been estimated by experts to be roughly equivalent to those of the Iran-Iraq war, running into the hundreds of billions of dollars.

The result of that investment and sacrifice are shockingly modest. Its power fleet consists of a single Russian-built VVER-1000 reactor at Bushehr, supplying about 1.7% of national electricity. Iran also operates several small research reactors, most notably the 5MW Tehran research reactor.

Its enrichment capacity, the program it has defended and paid most dearly for in punishing sanctions, has never been more than a rounding error when benchmarked against the global industry. At its peak it runs several tens of thousands of separative work units (SWU) per year. For comparison Rosatom runs about 28 million SWU and Urenco and Orano combined run another 20 million SWU.

The quantities are insufficient to fuel any power reactor of consequence. They are, however, enough to build a bomb.

Today’s essay is a comprehensive history of Iran’s nuclear program which will provide historical context and insights into the future of Iran’s nuclear ambitions. It draws on my Decouple Podcast interview with Dr. Farzan Sabet, an Iran expert and historian at the Geneva Graduate Institute.

Origins

Iran’s nuclear program stretches to 1957 beginning under the auspices of Eisenhower’s Atoms for Peace. In 1967 the United States delivered the Tehran Research Reactor, a 5 MW pool-type unit, along with its fuel: roughly 5kg of “bomb grade” highly enriched uranium.

This of course raises eyebrows in today’s non-proliferation environment, however, the quantities involved were far below IAEA estimates of the 25kg of 90% enriched uranium required for a crude nuclear weapon.

For a decade the reactor mostly sat idle. Iran lacked the trained physicists to run it, and the program was small and underfunded, consisting of a smattering of research projects.

Oil for Atoms

The 1973 oil shock changed everything. The price of oil quadrupled just as Shah Mohammad Reza Pahlavi successfully wrested control of Iran’s oil industry back from Western oil companies and the treasury was flooded with petrodollars. The result was huge current account surpluses.

.

The Shah’s “Oil for atoms” program was multifaceted.

First, it was an opportunity for economic diversification and techno-nationalism, a bid to plant Iran, an ancient civilization with a long memory of its own greatness, at the cutting edge of the era’s most advanced technology.

Second, Oil, whose value had reached new heights, was now seen as too precious to burn at home for electricity when it could be exported or refined into higher value products. Reactors which in the 1970s were assumed to be coming down a cost curve would therefore carry domestic electricity load to free up lucrative petroleum exports.

Lastly, it offered a mutually advantageous recycling of petrodollars. France, battered by the rising cost of imported oil, could recover hard currency by exporting reactors and nuclear expertise, while Iran converted its oil surpluses into advanced technology and industrial capabilities.

The Nuclear Energy Program

The resulting 1974 Nuclear Energy Program was breathtaking. The Atomic Energy Organization of Iran planned for the construction of 20 reactors targeting some 23,000 MW of capacity.

The organization quickly became the third largest body in the Iranian state, behind only the state oil company and the armed forces. It reached 7,000 staff and broke the civil service pay scale in order to poach the country’s best engineers.

The ambition extended past electricity generation and included sovereignty over the entire fuel cycle. Iran bought uranium in southern Africa, took a stake in the French Eurodif enrichment consortium, and set its sights on one day exporting reactors and nuclear services.

The Bushehr nuclear power station was begun under contract with the German firm Kraftwerk Union and excavations for the French supplied Darkhovin nuclear power station were begun.

The option of Iran pursuing a nuclear weapon under the Shah was considered but kept on the back burner due to the certainty of diplomatic and financial blowback. As a regional bulwark against the Soviet Union, Iran was at the time the largest purchaser of American weapons. Iran simply had too much to lose from pursuing a bomb although the Shah later signalled a nuclear weapon would be considered should a regional rival like Iraq or Libya develop a bomb of their own.

Revolution, War, and Nuclear Deterrence

The 1979 revolution slammed the breaks on the Shah’s nuclear aspirations. To the Revolutionaries the nuclear program was a white elephant, a monument to Pahlavi extravagance in a country wrestling with deep rural poverty.

Nuclear construction was halted at Bushehr and Darkhovin. However, Nuclear technocrats managed to convince Ayatollah Khomeini to resume the Bushehr project which was 80% complete. Kraftwerk Union however had no intention of staying. The company fully withdrew from Iran in July 1979, rendering the technocrats’ internal victory a dead end.

Then Iraq invaded, and the eight year war that followed shifted the Islamic Republics position on the future role of nuclear technology.

Around 750,000 Iranians died in the conflict. Saddam used chemical weapons while the United States supplied him battlefield intelligence and diplomatic cover at the UN. The world mostly looked the other way.

Although it received arms from China and North Korea, Iran had no reliable great-power protector and faced an opposing coalition with far greater diplomatic and financial backing.

The Gulf monarchies bankrolled Baghdad, Both the Soviet Union and America armed Saddam. Kissinger is reported to have summed up America’s position in the following words: “It’s a pity they can’t both lose.”

In a surprising twist Israel, which read Saddam as the greater danger, sold arms to Iran and eventually played a role in the Iran-Contra deal.

The lesson the Islamic Republic drew from this conflict was that no treaty or international body could be counted upon to come to its rescue. It could only depend on itself and needed its own deterrent.

The AMAD Plan

After the war, Iran began clandestine nuclear weapons related work under a succession of military-linked organizations. By the late 1990s, much of this activity had been consolidated under physicist Mohsen Fakhrizadeh into the AMAD Plan: a structured program examining the technologies required for an implosion-type nuclear weapon and reportedly aiming to produce five missile-deliverable warheads with yields of roughly ten kilotons each, slightly smaller than the bomb dropped on Hiroshima.

The program’s scale and organization were reconstructed through years of IAEA investigation and intelligence supplied by multiple countries, then illuminated further by the Iranian AMAD Plan archive itself. In January of 2018 Israeli Mossad agents managed to seize it carrying away 1000lbs of documents from a warehouse in south Tehran.

Iran’s enrichment program received crucial early assistance from the clandestine network built by Abdul Qadeer Khan. A Pakistani metallurgist who had worked during the 1970s for a contractor to the British-German-Dutch URENCO consortium, Khan illicitly obtained European gas-centrifuge designs and used them to establish Pakistan’s nuclear weapons program.

Khan later transformed the procurement network created for Pakistan into an international proliferation enterprise. Iran was one of the network’s earliest customers.

At a meeting in Dubai in 1987, Iranian representatives obtained drawings and sample components for Khan’s P-1 centrifuge, a machine derived from European URENCO technology, together with information needed to establish an enrichment program. The P-1 became the basis of Iran’s IR-1 centrifuge, thousands of which were eventually installed at Natanz and Fordow.

According to the IAEA, Iran separately investigated several technologies relevant to an implosion-type nuclear weapon. Researchers conducted experiments using surrogate materials to study the conversion and casting of uranium metal. They developed exploding-bridgewire detonators capable of firing with the near-simultaneous timing required for an implosion nuclear device, and worked on a multipoint high-explosive initiation system. They also studied how a spherical payload could be integrated into the re-entry vehicle of a Shahab-3 missile.

What Iran lacked was sufficient fissile material.

Scaling Enrichment, Sanctions, and the JCPOA

In 2002, an Iranian dissident group publicly exposed the existence of Iran’s hidden underground enrichment facility at Natanz. In 2003 the presence of US troops on its eastern and western borders following the US invasions of Afghanistan and Iraq is thought to have led to the halting of the AMAD program.

Enrichment, however, was expanded under a civilian banner justified in part by Iran’s need to fuel its research and power reactors. In 2006, under President Mahmoud Ahmadinejad, Iran expanded its centrifuge halls and pushed enrichment levels up.

The discovery in 2009 of a secret enrichment plant burrowed into a mountain at Fordow, a site with roots in the AMAD program, hardened world opinion against Iran. The sanctions that followed were backed by both Russia and China at the UN Security Council. The impact on the Iranian economy was severe.

With the Supreme Leader’s blessing, a moderate government under Hassan Rouhani negotiated the 2015 Joint Comprehensive Plan of Action which provided sanctions relief in exchange for real, physical concessions.

Iran removed two-thirds of its centrifuges, shipped almost all of its enriched-uranium stockpile to Russia, capped its maximum enrichment level at 3.67% and ceased enrichment at its deeply buried Fordow mountain site.

In 2018, under Donald Trump, the United States unilaterally walked away from the deal.

In the subsequent years after initially keeping to its JCPOA committments Iran ratcheted up its enrichment activities and eventually developed a stockpile of 440kg of 60% enriched Uranium, enough for approximately ten small nuclear devices.

After a decades long campaign of cyber attacks and sabotage against its enrichment facilities as well as assassinations of many senior scientists including Mohsen Fakhrizadeh, Iranian nuclear sites came under aerial bombardment and have been heavily degraded by US and Israeli bombs over the last 13 months.

Nuclear Breakout as Anti-Deterrent

One only has to look at the contrast in the fortunes of Saddam, Gaddafi and Kim Jong-Un to see how nuclear weapons capabilities can serve as the ultimate deterrent to external regime change efforts.

Iran’s conventional deterrents are in a fragile state. While its Houthi allies threaten the Bab el-Mandeb strait strengthening their chokehold on the worlds oil supply, the remainder of its proxy network has been significantly degraded.

Hezbollah has been weakened, Hamas is in tatters, the Assad government is gone, and Iraqi militias are being pressed toward disarmament. In addition, Iran’s grip on the Strait of Hormuz, while currently a major threat to the global economy, is a diminishing threat whose leverage will fade as the Gulf states build export pipelines around it.

Seeking deterrence via a breakout dash towards a nuclear weapons capability is not, however, as simple as it seems. One or two crude weapons with an unreliable delivery mechanism are not enough to deter an adversary.

On the contrary they could provoke a first strike before an Iranian arsenal has time to mature. Israel holds an undeclared nuclear monopoly in the region and an Israeli nuclear response to an Iranian test is not unimaginable.

An effective nuclear deterrent involves serialized warhead production, reliable missiles, and a second-strike capability. Iran is thoroughly penetrated by Israeli intelligence networks and such an effort would require enormous resources and many years during which Iran would remain vulnerable.

Curtailing Iran’s Nuclear Options

Iran has paid a huge price for a nuclear program that has delivered very little and yet despite enormous economic and now military costs it still clings to its asserted right to enrich.

Enrichment is difficult for Iran to abandon because it simultaneously represents security, sovereignty, prestige, bargaining leverage, institutional interests and revolutionary identity as well as an enormous sunk cost.

A durable agreement to limit Iran’s nuclear latency is likely to resemble the JCPOA by preserving the formal principle of enrichment while severely constraining its strategic usefulness: very low enrichment levels, tiny stockpiles, strict centrifuge limits, imported fuel guarantees and exceptionally intrusive verification.

Iran could present that domestically as retaining its sovereign right; the other side could obtain a program incapable of rapidly producing weapons material.

A demand for permanently abandoning enrichment asks Iran not merely to make a technical concession but to acknowledge strategic defeat. That may be achievable in the case of regime transformation or outright military capitulation. It is much harder, however, to obtain through an agreement that Iran’s leaders must voluntarily sign, defend and implement.

Its timbers were the skeletons of our housing and ships. As charcoal it was the reducing agent and heat source that pulled iron out of rock. It was also the feedstock for a pre-industrial chemicals industry that produced, for example, the tar and pitch that kept ships watertight.

About 200 years ago the buried fossil forests of the carboniferous era stole centre stage.

In today’s essay, which accompanies my interview with Decouple fan favourite Mark Nelson, we perform a sweeping deepdive of humanity’s symbiosis with trees and wood.

An Arboreal Ancestry

Our co-evolution with trees predates our dependence on wood as fuel and material. Primates are an arboreal order, and the anatomy that gives modern day humans some of our unique capabilities evolved in the canopy.

Amongst those, the grasping hand, the opposable thumb and binocular, trichromatic colour vision that helped us judge distance and find red and orange fruit in a sea of green foliage. The two legged animal that would later slash, burn and build from the forest was itself moulded by it.

The controlled combustion of wood further refined our bodies and boosted our capabilities. Cooking externalizes much of the work of digestion which enabled Homo sapiens to develop a shorter gut, a smaller jaw and spend the energy surplus on a larger brain.

As wise as we are, we might more accurately be called the fire ape, Homo ignis.

The Wooden Battery

What makes wood special among the products of photosynthesis is a biochemistry that enables long term energy storage. Plants are less than 1% efficient at converting sunlight into biomass and for non-woody plants most of that carbon based material is recycled to the atmosphere through rapid decomposition.

A tree, however, can hold a century of energy conversion in a form that can be harvested, transported in bulk by water, stored and burned releasing significant quantities of energy on demand.

This attribute is enabled by a unique biochemistry. In a close parallel to rebar and concrete, cellulose carbon fibres, strong in tension, are set in lignin, a rot-resistant cement that is responsible for 15% to 30% of the tree’s mass.

In the case of the California Redwood this biological composite can stand 100 metres in the air and endure for centuries.

Energy = Land Area x Growth Rate

While the wooden battery can stretch photosynthetic constraints slightly the pre-industrial energy equation: Energy = Land area x Growth rate, imposed unforgiving limits. Forested land is finite, sunlight arrives at a fixed rate determined by geography and weather. Growth rate varies by close to an order of magnitude based on species, precipitation and latitude.

Wood acts like savings in a bank account but the balance refills only as fast as the sun allows. This becomes the ceiling in the story that follows whether it’s one of wood as fuel or the products it enables like iron, ships and even maritime empires.

Charcoal and Metals

Preindustrial metallurgy is illustrative of the limits of photosynthesis and lignin. Smelting iron demanded charcoal, both as the fuel and as a reducing agent. Charcoal is made by pyrolysis: heating wood without air to drive off its volatiles and leave carbon behind. The purer the carbon, the better the metal. Every pre-industrial furnace therefore had a forest standing behind it.

Foresters managed the fuel supply through coppicing: cultivating species that resprouted after cutting and allowing the new shoots to mature over roughly twenty years. A woodland could be divided into twenty lots, with one cut each year, creating a theoretically perpetual supply of fuel for the furnace.

This system however imposed a hard economic limit on growth. A larger furnace required charcoal from an ever-wider ring of forest, and charcoal was a poor freight: bulky, fragile, and low in value by weight.

It could be hauled from farther away, but each added mile raised its delivered cost until expansion ceased to be profitable. Iron output was therefore capped by the productive woodland within an economically cartable radius of the furnace.

Deforestation and Agriculture

While forests provided fuel, materials and process heat they competed with human caloric needs. Clearing forest for farmland has therefore been the greatest driver of global deforestation.

The European medieval warm period saw a particularly rapid era of deforestation. The combination of a solar maximum and uncharacteristically low global volcanic activity raised temperatures across Europe and the North Atlantic.

This expanded the growing season by 3 to 4 weeks and made previously agriculturally unviable land across northern Europe cultivable. Vineyards sprung up in England, the Vikings spread across the North Atlantic into North America and a group of forest clearing monks spread like wildfire transforming the European landscape.

The Cistercians were a reform order. They wanted a stricter reading of the Rule of St. Benedict than the wealthy Cluniac houses of the day, which meant austerity, self-sufficiency, and a return to manual labor as a form of prayer.

The order’s ideal demanded remote sites far from existing towns and tillage, so its houses took the marginal ground nobody else wanted: woodland, moor, and marsh. The monks then set about clearing and draining it.

What turned a spiritual preference into a continental clearing operation was the labor model. A class of lay brothers, the conversi, men bound by vows but dedicated to toil rather than the Divine Office, consolidated farms of anywhere from 30 to over 2,000 hectares. This arrangement concentrated labor and animals on a single block of land under a single owner, which made felling, stumping, and drainage worth the outlay at scale.

The order replicated this model with an efficiency no secular institution of the period could match. Its network of daughter houses worked something like a franchised joint venture fused with an ant colony. From 26 abbeys in 1124 they reached roughly 700 across Latin Europe by the 13th century, from Ireland to Poland and Sweden to Sicily.

Forests the Enablers of Maritime Empires

At sea building materials were also determined by Land Area x Growth Rate and this set the size of navies. A single 74-gun ship of the line consumed on the order of 50 acres of mature oak.

Shipwrights wanted high quality compass timber, curved oak whose grain had grown into the shape of a knee or a rib, so that structural loads ran along the fibres rather than across them.

Above the hull came the naval stores and the running consumables of a wooden fleet: tar, pitch, rosin, replacement beams, and above all masts, which had to be tall, straight, and close to flawless.

Britain had deforested itself of sufficient quantities of these high quality timbers well before it reached for a truly global empire, so the supply came from abroad.

The 18th Century Strait of Hormuz

The old Hanseatic axis ran from London to Novgorod, drawing timber, iron, and naval stores out of the forests of Scandinavia, the Baltic, and Russia, which funnelled the entire system through the Øresund, a four kilometre wide strait between Denmark and Sweden.

During the French Revolutionary Wars, Britain was attempting to starve France of maritime trade using its superior navy to stop, search and confiscate the goods of its trading partners.

These countries, including Denmark and Sweden, banded together into the League of Armed Neutrality and threatened to close the Oresund to British trade if their shipping continued to be harassed.

In 1801 a British fleet under Sir Hyde Parker, with the legendary Admiral Nelson leading the attack, forced the Sound and destroyed much of the Danish navy at anchor off Copenhagen.

The Industrial Fruit of the Subterranean Forests

The fossilized forests of the Carboniferous eventually broke the pre-industrial energy equation. Coal is accumulated lignin and cellulose that refused to rot. A single seam holds the stored photosynthesis of forests that grew and fell across the same ground for millions of years, energy a coppiced woodland could release only one 20-year rotation at a time. Tapping it severed human energy constraints from the fixed rate at which sunlight arrives and the finite acreage available to catch it.

This did not mean the end of humanity’s marriage to trees. As documented by French historian Jean Baptiste Fressoz in 1750 Britain consumed roughly 3.6 million cubic meters of fuel wood per year. In 1900 it used more than 4 million cubic meters just as pit props to hold open the shafts of its coal mines and now in 2025, Drax, a British wood pellet burning power plant, consumes 10 million cubic meters per year.

In an upcoming part two with Mark Nelson we will pick up the story of our ongoing post industrial symbiosis with wood and take a closer look at the broad arc of deforestation and reforestation.

Stay tuned.

Ernest Moniz was US Secretary of Energy from 2013 to 2017 and was the lead technical negotiator of the Iran Nuclear Deal, the JCPOA.

Before his political career he ran the physics department at MIT, where his eventual Iranian negotiator counterpart, Ali Akbar Salehi, had earned a PhD under a colleague during an earlier era of US-Iranian nuclear cooperation prior to the Islamic Revolution.

In 2023 I had the pleasure of interviewing Secretary Ernie Moniz on the sidelines of the COP 28 Climate conference in Dubai at the Net Zero Nuclear Summit hosted by the Emirates Nuclear Energy Corporation.

As the Iran war rages on into its fifth month with no end in sight I thought it would be interesting to explore his reflections on the diplomatic path once taken to rein in Iran’s nuclear ambitions.

We recorded the accompanying interview one day after the 11th anniversary of the signing of the JCPOA.

The agreement signed on July 14th 2015 and endorsed by UN Security Council Resolution 2231 was designed to hold Iran 12 months away from enough fissile material for one weapon.

Perhaps more importantly it insisted upon a gruelling inspection protocol which would make any sprint toward a bomb visible and give ample time for a diplomatic or military response.

The approach was to triage and deal with the nuclear issue before further negotiations on the thorny issues of Iran’s missile program and its proxy forces throughout the Middle East.

Under the JCPOA uranium enrichment was capped at 3.67%, and the stockpile limited to 300 kg of UF6. Iran shipped about 11 tonnes of low enriched uranium out of the country.

Its stock of installed centrifuges fell from roughly 19,000 to 6,104 and were limited to its earlier IR-1 design, 10 times less productive than its third generation IR-6 machine.

Enrichment activities at the deeply buried Fordow mountain site ceased, and the Arak Heavy Water Reactor calandria was filled with concrete so the reactor could not be used for plutonium production.

In return Iran got sanctions relief.

The IAEA provided continuous monitoring that ran from Iranian mines and mills through centrifuge manufacturing to the enrichment halls, with a 24-day ceiling on any dispute over access to non-declared sites. The agency verified Iranian compliance in every report it issued until the American withdrawal in May 2018.

Much has changed since then. Iran’s nuclear and missile sites have been heavily bombed, IAEA inspectors are out of Iran, and more than 440 kg of 60% enriched uranium, enough for ten nuclear weapons, lies somewhere inside Iran.

We know from Israel’s daring extraction of the archive of Iran’s former nuclear-weapons program, Project AMAD, from a Tehran warehouse that, between 1990 and 2003, Iran acquired centrifuge technology and nuclear-weapons designs through the A. Q. Khan network with a goal of building five devices by 2004.

During this period it prototyped and developed much of the technical knowledge required to assemble a nuclear weapon. What was missing at the time was fissile material.

As Secretary Moniz makes clear in our interview, while bomb-grade Uranium is defined as being >90% enriched, the “Little Boy” bomb dropped on Hiroshima in 1945 was not bomb-grade and it was never tested prior to its use in Japan.

We find ourselves in a perilous moment with seemingly irreconcilable positions between the belligerents, a regime facing an existential threat and most of the technical and fissile prerequisites for a bomb available to it.

Secretary Moniz still believes that the ultimate resolution of this Gordian knot will come through negotiations but after two surprise attacks by US and Israeli forces during prior negotiations trust is at an all-time low.

In America, despite eye watering subsidies and incentives, utilities just aren’t biting. The question that dogs future nuclear projects is not just how to raise substantial amounts of capital: it is who will absorb the risk of construction overruns.

Like hydroelectric dams, nuclear reactors take the better part of a decade to build, and across that whole period consume enormous amounts of capital while generating no revenue.

The interest accumulated during construction compounds on itself year on year. As a result, depending on the cost of capital and adherence to schedule, by the time first electricity is sold, the financing cost can dominate everything else.

Subscribe now

A combined-cycle gas turbine serves as a useful counterpoint and explains why one technology attracts private money and the other repels it.

A gas plant is predictably constructed in 18-30 months, drawn from a module supply chain that reliably ships hundreds of units a year. Interest during construction doesn’t have time to balloon, and as long as there is demand to serve the asset begins earning revenue quickly.

As a result fixed-price contracts have been commonplace, which is why merchant developers finance gas plants privately without a second thought.

A nuclear megaproject carries two major financial risks. The first is construction risk: will the plant be built on time and on budget? The second is offtake risk: once the plant exists, will a customer pay enough across 60 to 80 years to service the debt?

Nuclear financing structures are fundamentally arrangements for distributing those two risks among a fixed cast of parties that includes the reactor designer, the construction firm, the utility, the government, the ratepayer, the taxpayer, and the industrial offtaker.

Initially, to launch the industry in the USA in the early 1960s GE and Westinghouse took on all construction risk and delivered 13 loss-leading plants under fixed price contracts.

They successfully scaled reactors to sufficiently viable economies of scale that regulated monopoly utilities, confident after a building spree of conventional thermal plants, took on the construction risk. Offtake risk was minimal as electricity demand was skyrocketing in the 1960s.

They financed projects against a captive ratepayer base which offered a low cost of capital. Prudent costs could be passed on to the ratepayer and there was little downside to shareholders.

Elsewhere around the world the answer to the question of who takes on the risk lay with government-owned utilities backed by ratepayers and ultimately taxpayers.

France’s EDF, Ontario Hydro, and Korea Hydro & Nuclear Power could borrow at or near sovereign rates because the lender was, in effect, lending to a government. In these scenarios, nuclear power was being built and financed like infrastructure rather than merchant generation.

In the fizzled “Nuclear Renaissance” of the early 2000s Europe and America tried a variety of approaches to finance EPR and AP1000 reactors.

In the accompanying Decouple Podcast interview with Michael Seely we analyze the evolving state of nuclear construction finance with a deep dive into EPR projects in Finland, France and the UK and look towards what optimal arrangements will look like in the nuclear builds of the future.

These unique design features are the consequence of a single unifying design choice: the use of natural uranium.

The decision to avoid enriched uranium was set in motion during the Second World War. The British atomic bomb program, codenamed “Tube Alloys,” relocated to Canada alongside the world’s entire supply of heavy water which had been spirited out of Norway by a French spy under the noses of the invading Wehrmacht.

The Americans, having found graphite the easier moderator to scale for plutonium production, left heavy water research largely to the British and Canadians, with their laboratory at Chalk River. Work there progressed quickly and ZEEP, a heavy water/natural uranium reactor, was the first reactor to go critical anywhere outside the United States.

Post war politics decisively limited Canada’s options. On January 1st 1947, the McMahon Act cut Britain and Canada off from American nuclear technology, including uranium enrichment. In this context Canada decided to go it alone, developing its own sovereign power reactor technology based on its strengths in natural uranium and heavy water research.

The following essay is based upon my Decouple Media podcast interview with Navid Badie, Chief Nuclear Engineer at Candu Energy Inc.

Subscribe now

The Neutron Economizer

Natural uranium is 0.711% fissile U-235 by weight. The remaining 99.3% is mostly U-238, which absorbs neutrons without fissioning. A reactor running on this fuel starts with almost no margin. With so little fissile material in the core, you cannot afford to lose neutrons to parasitic absorption, and you cannot afford to let them escape.

That rules out ordinary light water as the moderator. Heavy water, in which the hydrogen is replaced by deuterium, absorbs far fewer neutrons. The tradeoff is weaker moderation per collision, so you need more of it to slow neutrons to thermal energies.

More moderator means more volume, and more volume would mean a larger, thicker walled reactor pressure vessel which Canada did not have the capability to forge. Rather than import an oversized reactor pressure vessel and surrender supply chain sovereignty the early designers distributed the pressure boundary.

A Container Full of Microreactors

Because a narrow pressure tube can hold the same pressure with a 4.2mm wall that a conventional light water reactor vessel could only contain with a 21cm thick wall, CANDU designers elected to modularize the core of the reactor into several hundred individual pressure tubes.

These 10cm diameter tubes run six meters horizontally through a large tank of low pressure heavy water called the calandria. Twelve log shaped fuel bundles each 50cm long sit inside each tube with pressurized heavy water coolant circulating around them.

A useful way to conceptualize CANDU reactor anatomy is as a collection of hundreds of tubular 5MWt microreactors.

While a standalone microreactor leaks neutrons from every surface, requires its own costly shielding, refueling apparatus, security perimeter, and spent-fuel handling the CANDU places hundreds of microreactors together inside of a single 7 meter by 6 meter cylindrical calandria vessel. As a result they share a neutron population, radiation shielding, fueling system, and spent fuel bay dramatically reducing costs and simplifying logistics.

The Fueling Machine with a Reactor Attached

A natural-uranium core holds little excess reactivity, so it cannot be loaded with a year or two of fuel at a time the way an enriched core can. If a CANDU were shut down for batch refueling it would sit idle for outages every few weeks. The answer to this challenge is to refuel without shutting down at all.

Online refuelling has led CANDU to dominate the charts in setting run time records and achieving world class capacity factors. For over three years from January 2018 to February 2021, Darlington Unit 1 ran continuously for 1106 days, setting a world record for all thermal generators.

Monday to Friday at every CANDU plant across the globe, two robotic fuelling machines exchange on average 10 fuel bundles. They clamp onto opposite ends of a pressure tube, one pushing fresh fuel bundles in while the other receives the spent ones. This occurs at full power and full pressure.

International operators unfamiliar with the technology are often stunned that Canadians routinely open the primary pressure boundary of their operating reactors.

However, this is routine; with more than 1000 reactor years under their belts, CANDU operators have performed this maneuver almost one million times, becoming the world’s experts in online nuclear refuelling.

Pressure Tube Refurbishment

The same neutron flux the fuel channels are built to share also wears them out. An LWR concentrates its pressure boundary in a single steel forging set outside the core, shielded by the surrounding water, where fast neutron fluence accumulates slowly enough that embrittlement is a 60-80 year concern. CANDU pressure tubes are surrounded by a hard neutron field which causes them to deteriorate more quickly over the course of 30 years.

End of life arrives when rising hydrogen, falling toughness, and dimensional change together leave too little margin, at roughly 30 years. Refurbishment is the reset. The reactor is opened and its pressure tubes, the calandria tubes around them, and the feeder pipes that carry coolant to the boilers are cut out and replaced, returning the core to good-as-new condition for another 30-year run.

The technique has matured across three generations of refurbishment. Each cycle has shortened the outage through better tooling and tighter logistics. The Darlington stations lessons are being carefully filed for the day these reactors return for a second refurbishment, one that would carry them toward 90 to 100 years of service.

The Thermal Sink Safety Margin

One of the most challenging accident scenarios reactor designers plan for is the station blackout, made famous by the Fukushima accident, in which grid power and emergency back up diesels are unavailable. This means that the massive pumps that circulate coolant and remove heat are unavailable.

Thankfully, seconds after a reactor is tripped with control rods or neutron poison injection, power levels drop to 6-7% of full thermal power, reducing further to around 1% within a day. That 1% is still a substantial amount of heat.

In both a CANDU and a pressurized light water reactor it is buoyancy that moves the coolant once the pumps power down. Hot water rising from the core to the steam generators which sit above it, gives up its heat and sinks back, creating a thermosiphon that runs on gravity for as long as the loop stays full of water.

The heat passes into the steam generators, boils their secondary-side water, and leaves as steam through the relief valves. If that secondary side is kept fed and vented, which an Enhanced CANDU 6 does from an elevated reserve tank with no grid power, the reactor cools itself for around three days before stored water runs out. Three days is a very long time to find a fire truck and a hose to refill the reserve tank.

The CANDU adds a second safety margin in the unlikely scenario where thermosiphoning fails. Each pressure tube microreactor is surrounded by a huge inventory of water already prepositioned to provide cooling by simple conduction from one tank to another.

Each fuel channel sits in 230 tonnes of cool, low-pressure heavy water inside the calandria tank. If a pressure tube overheats it sags until it touches its calandria tube, conducting its decay heat straight into that water. Around the calandria, in direct contact with it, another 520 tonnes of light water sits in the shield tank, ready to soak up heat one layer further out.

Finally, the reserve tank, larger than all of these inventories combined, is capable of refilling the calandria and the shield tanks as they boil off. This buys operators ample time to reconnect to the grid or start up backup diesel power sources which restore flow to heat exchangers. The latter definitively rejects decay heat to the ultimate heat sink the reactor uses to condense its steam in routine operations such as a large river, lake or ocean.

Fuel Sovereignty and Isotopes

Fuel sovereignty is a strong value proposition of the CANDU. Uranium enrichment is a very complicated technology which, due to weapons proliferation concerns, is tightly guarded and limited at commercial scale to the USA, several European nations, Russia, China and Japan.

Whereas the CANDU “enriches” its heavy water moderator only once, at the time that the moderator inventory is produced for the reactor, light water reactors depend on enriched uranium fuel to be produced for refuelling intervals every 18-24 months.

In addition, light water fuel elements, which this podcast has referred to as the Swiss watch of fuels, are highly complex engineered products that few countries and companies have the capacity to fabricate.

In contrast, every single country that runs CANDUs fabricates their own far simpler fuel bundles under license. Canada, the only country in the world that mines sufficient uranium to fuel its own nuclear fleet, controls its fuel production from mine mouth to reactor fuel.

The low pressure calandria enables access to a high neutron flux environment during operation with a variety of isotope targets. This makes the CANDU reactor the world’s workhorse for bulk production of medical isotopes like Cobalt-60 and an increasing number of more bespoke cancer treatments like Lutetium-177 which my father received as part of his prostate cancer treatment. CANDU provides the vast majority of the global supply of Cobalt-60, which is used to sterilize most of the world’s single-use medical devices.

Canada’s Choice: CANDU vs. AP1000

The future of Canada’s nuclear sector hangs in the balance with Ontario’s technology selection teetering between CANDU and the American Westinghouse AP1000 reactor technology.

While the AP1000 reactor, covered previously on Decouple, is the world’s most advanced pressurized light water reactor, it has proven difficult and expensive to construct outside of China.

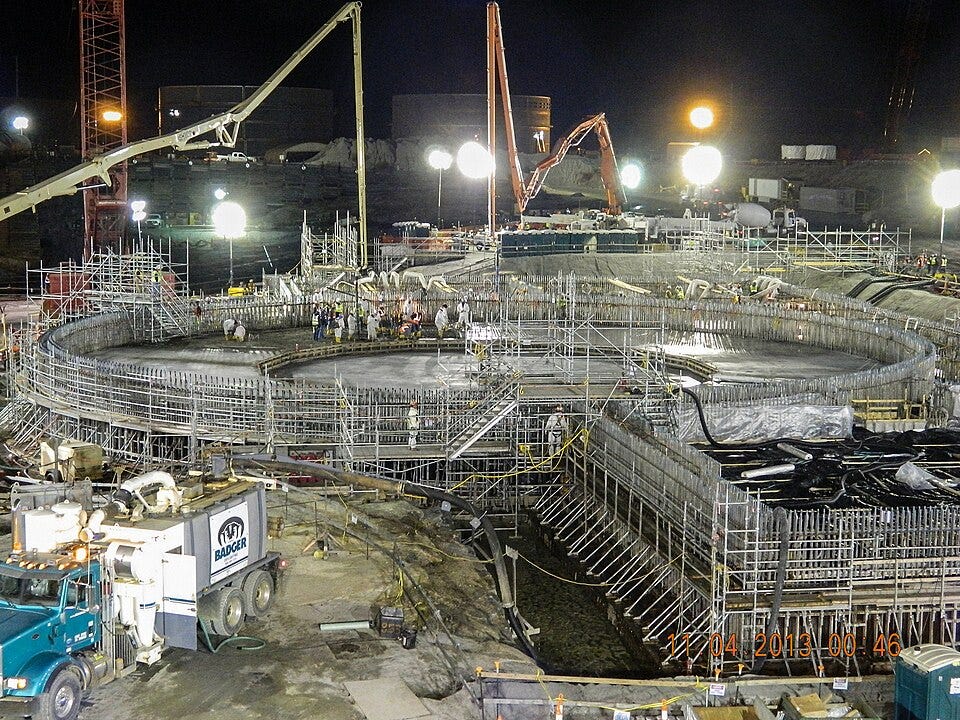

The Vogtle AP1000 units came in at over $25 billion CAD each, more than double their anticipated original cost. The next Western deployments, a three-pack of AP1000s planned for construction in Poland is now estimated at $73 billion CAD, or $24 billion CAD per unit. This price tag is barely better than that of the Vogtle fiasco (and that is the cost estimate, not the final cost).

CANDU benefits from a supply chain that has been energized by successful under budget, ahead-of-schedule refurbishments, meaning greater supply chain certainty regarding reactor components, a workforce and regulator intimately familiar with its inner workings, and unparalleled Canadian content.

The future of CANDU got a boost this week with the Canadian federal government releasing its nuclear industrial strategy and committing to supporting the development of a modernized Gigawatt scale CANDU.

This would complement the Gen 3+ Enhanced CANDU 6 at 750 MW and help build on the success of Canada’s previous CANDU 6 exports. The industrial policy document also declares a strong preference for Canadian technology to maximize local supply chain benefits.

CANDU fits that bill like no other.

My goal is to get half of the North American nuclear industry subscribed to this substack. Please share and recommend to a nuclear friend or nuclear family member.

In the early 1960s the U.S. nuclear industry went from stagnation to the fastest sustained growth for any major industry in the country’s history.

Throughout the mid 1950s to early 1960s attempts by the Atomic Energy Commission to kickstart a power reactor industry through fuel subsidies, R&D support and even reactor ownership in the form of the Power Reactor Demonstration Program (PRDP) disappointed.

The economics and performance of these experimental reactors: SMR sized light water reactors and a smattering of what have come to be called “advanced reactors,” were so unconvincing that in 1961 there wasn’t a single reactor order placed by a US utility.

Philip Sporn, the CEO of American Electric Power and among the most respected utility executives in the country, put the consensus plainly in the early 1960s: a nuclear plant would cost 50% to 100% more than a coal plant.

However from 1962-1976 installed nuclear power capacity grew 40% year on year, doubling roughly every two years going from 200MW in 1960 to more than 50GW in 1977.

The Extraordinary Turnaround

Between 1962 and 1966 Westinghouse and General Electric offered 13 turnkey reactors to utility partners at fixed prices competitive with coal. They sold those plants at roughly half of what they cost to build, kept the books closed, and ate losses that in several cases exceeded the entire sale price.

The “nuclear cheaper than coal” golden-age benchmark referenced by advocates that anchors decades of nuclear cost commentary was perhaps the most consequential marketing campaign in the history of American infrastructure.

What is amazing is that when Westinghouse and GE ceased offering these fixed price contracts in 1966 orders exploded. Utilities were convinced that they could build reactors for even less.

This deep dive of the American Nuclear industry’s origin story, inspired by my interview with James Krellenstein on the Decouple Podcast, explains why.

The Context of the Turnkey Era

The two firms that decided to crack open a struggling market were unlike anything in the modern financialized American economy.

General Electric and Westinghouse had electrified the United States. In the 1960s, as the grid continued to double every 10 years, they manufactured almost every component from generation to consumption of electric power: steam turbines, generators, switchgear, transformers as well as washers, dryers, and stoves.

They also financed power plants through their credit arms, ran broadcasting operations, built locomotives and jet engines, and sat at the center of the military-industrial complex. Nuclear was a small fraction of their revenue, and almost all of it was defense work on the rapidly increasing bomber, submarine and nuclear deterrent forces during the missile-gap years.

The commercial logic for offering turnkey fixed price contracts was straightforward. Both companies had deep relationships with every utility in the country. They knew that utilities wanted to diversify away from coal as fuel costs were projected to rise and urban air pollution was becoming a hot button issue.

GE and Westinghouse believed that a single credible demonstration of nuclear power at coal parity could open the floodgates.

Nuclear Power Cheaper than Coal?

In December 1963 they made it so. Sort of.

General Electric signed a contract with Jersey Central Power & Light to deliver Oyster Creek as a turnkey project. Realizing that economies of scale had the greatest chance of improving the disappointing economics of the PRDP era, this BWR was designed to be 650 MW, three times larger than the Dresden 1, the largest reactor then operating. It was a firm fixed price of $132 per kilowatt in 1963 dollars, with GE acting as designer, constructor, and guarantor, handing over a finished plant no matter what it cost to build.

For that site, the price beat coal. Jersey Central said so publicly, and emphasized that it had selected nuclear on economics alone, with no AEC policy considerations attached.

These orders cascaded. GE followed up with six further large boiling water reactors. Westinghouse, unwilling to cede the market, answered with five large pressurized water reactors all on firm fixed prices.

What the buyers did not see was the gap between price and cost. The AEC’s own estimates, assembled later, are stark. Jersey Central paid $90 million for Oyster Creek; GE spent an estimated $170 million building it.

Point Beach sold for about $145 million and cost Westinghouse an estimated $329 million, a loss of $184 million that exceeded the entire purchase price.

Across roughly a dozen turnkey plants, the combined losses came to about $1 billion in 1960s dollars, north of $10 billion today.

The end of an era

By the summer of 1966 the losses had become intolerable, and General Electric and Westinghouse stopped offering fixed price contracts. From the vantage point of 2026 the reaction was puzzling.

Electrical World, the trade publication of record, ran an editorial on July 4 1966 where the editors predicted that returning control to the utilities would deliver lower costs than the vendors’ fixed prices ever could.

The reasoning was that GE and Westinghouse must have been padding their bids with contingency, and a utility with active ongoing experience competently running large projects with a large rate base could self-insure that risk and build even cheaper.

The rate base did more than absorb risk. Under cost-of-service regulation, a utility earned its guaranteed return on capital invested, with little or no margin on fuel and operating expenses, and prudent cost overruns could be passed through to ratepayers.

A nuclear plant, maximally capital-intensive and minimally fuel-dependent, was the most attractive object a regulated utility’s profit-and-loss statement had ever encountered. The incentive structure that would later prove ruinous looked, in 1966, like alignment.

The order book exploded. From 1962 to 1976 almost the entire American fleet, still the largest in the world in 2026, was built or under construction.

For a brief window, some utilities did build genuinely cheap plants. Palisades, Peach Bottom 2 and Browns Ferry had experienced architect-engineers, a hot supply chain and economies of scale which pushed the capital cost of the best-run plants low enough that, once fuel costs were factored in, were competitive with coal not on a capital cost but on a total-cost basis.

The Cost Plume

However, between 1966 and 1974, the nominal cost of building a nuclear plant rose roughly five-fold. The first leg of that increase, before 1969, came from rising labor costs, falling construction productivity, and economy-wide inflation that doubled coal plant costs at the same time.

Regulation then compounded cost increases from the early 1970s. The 1971 Calvert Cliffs decision forced full NEPA compliance and environmental review into licensing, and the 1972 Giambusso letter imposed high-energy line break and pipe whip analysis. The plants ordered in the boom absorbed these requirements mid-construction.

Then load growth slowed and stalled. Utilities discovered they had ordered plants they no longer required and the cancellation wave of the late 1970s and early 1980s followed. The cost-plus structure that had made nuclear attractive to utility balance sheets now meant ratepayers were funding abandoned reactor projects.

Lessons for our time

The context of the turn key era shares some similarities with our current moment. In 1962, nuclear faced cheap coal, skeptical utilities, and an empty order book despite recent incentives. In 2026 swap in cheap gas, utilities scarred by Vogtle and Summer, generous tax credits and one gets a sense of deja vu.

In some ways we sit in a better position than 1962. We have refined operating “nth” of a kind designs like the AP1000 which has reversed some of the material bloat imposed by earlier regulations. In addition, nuclear regulation is more stable than in the post-Three Mile Island era. Part 52 reduced one of the major cost drivers of that period: late-stage regulatory ratcheting, where plants could be redesigned while already under construction.

However, after the fallout of Westinghouse’s substantially fixed price contracts for Vogtle and Summer and Areva’s fixed price self-destruction at Olkiluoto 3 the days of western reactor vendors offering these kind of contracts seem to be decisively over.

The industrial behemoths of the 1960s that could purposefully price their turnkey plants below cost and shrug off billion-dollar losses as a customer acquisition expense are gone.

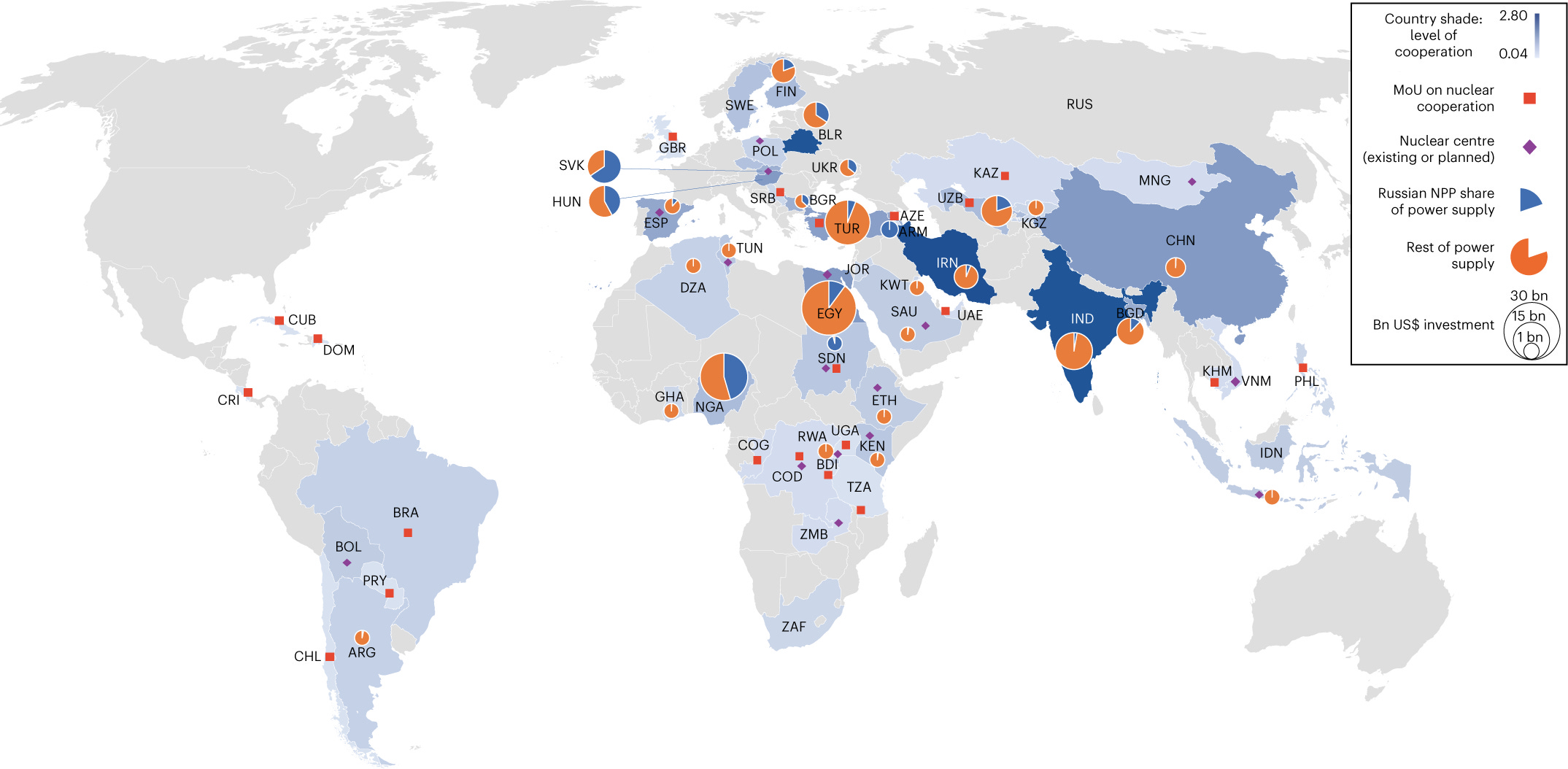

Russia, China and South Korea continue to offer fixed price contracts. The West, however, lacks an entity with the demonstrated skills to reliably deliver projects and the enormous balance sheet capable of offering a guaranteed price.

Who will take the risk to enable a renaissance?

The hyperscalers are sometimes nominated for the role, but their nuclear deals so far are power purchase agreements. These lock in demand at a price and leave the construction overrun risk with the developer. In the United States, awash in shale gas, the hyperscalers have cheaper, faster, and above all lower-risk ways to power a data centre.

For the last decade the 50 to 300 MW small modular reactor paradigm was thought to be the way out of this impasse. The vision borrowed from the combined-cycle gas turbine: a largely factory-fabricated set of modules, shipped and assembled on site quickly, at a price low enough, on the order of a billion dollars, that a utility or even a private buyer could carry it on its own balance sheet.

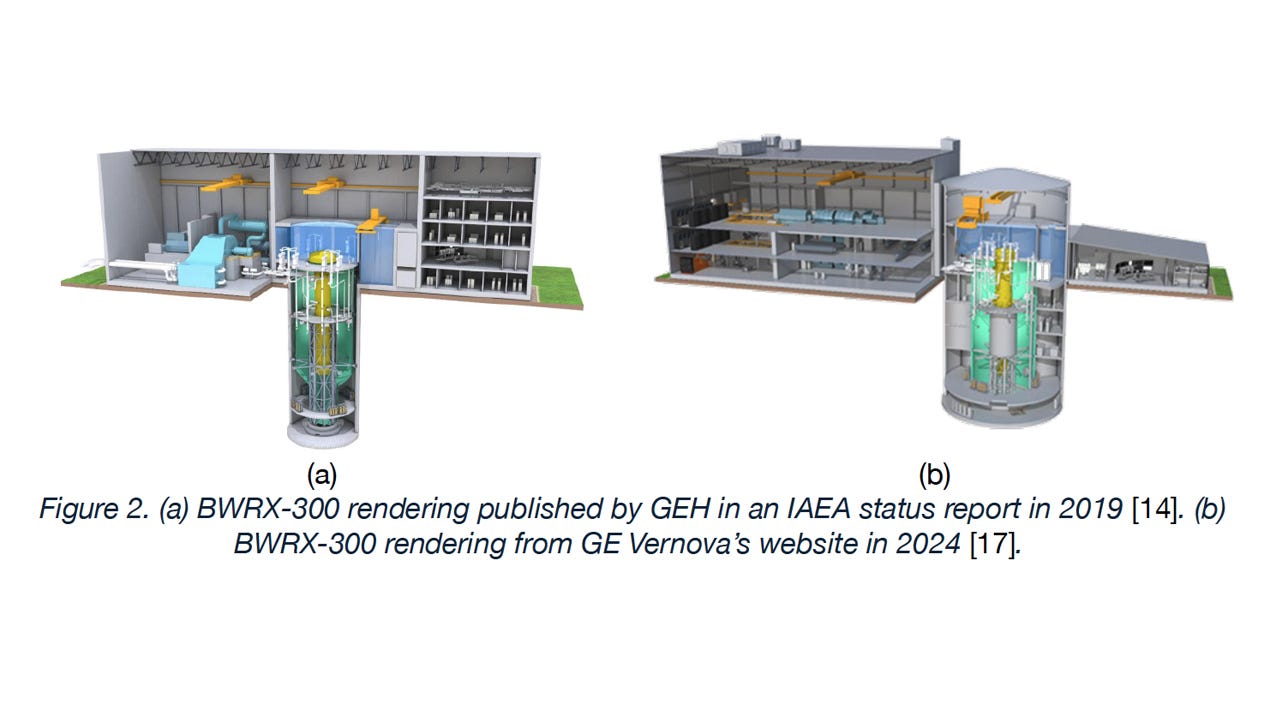

The trouble is that as SMRs moved from slide decks to firm cost estimates, the obvious reasserted itself. A nuclear reactor is not a gas turbine. The inherent costs of a seismic category-I foundation, radiation shielding, bespoke components, spent fuel handling infrastructure and security rivaled large plants like Vogtle on a per kW basis.

The most recent move is to retreat even further from economies of scale towards 1-10 MW micro reactors. Perhaps this scale could enable a new turnkey era at a smaller quantum of capital, one where a micro reactor vendor could credibly guarantee a price because the downside is survivable. The problem is of course that small scale nuclear has always been expensive nuclear. Those arguing that the future will be different are under an enormous burden of proof.

The first turnkey era was the escape from small reactors. Together Westinghouse and General Electric’s race towards GW scale reactors spawned the largest nuclear fleet in the world. If, as some governments have claimed, we want to triple nuclear energy by 2050 construction risk needs to be managed. In the absence of the industrial champions of the past government looks at this point like it will have to take a dominant role.

Like this post to help Decouple hit economies of scale

This achievement described by the DOE as “the rebirth of America’s nuclear industry” is part of a broader effort by the Trump administration to achieve its Nuclear Energy Dominance agenda.

Energy Secretary Chris Wright used the following words on April 15th of this year to describe this milestone.

“We can have reactors critical, meaning running their full nuclear systems. They’re not turning it into electricity, but that’s the simple part… We will have multiple small modular reactors running… in the next three months.”

Wright’s enthusiasm is contagious but his framing of criticality needs some interrogation as it inverts where the real engineering difficulty lies.

Subscribe now

Achieving criticality is an important milestone, but the engineering involved is comparatively straightforward. We have understood how to assemble fissile material into a self sustaining chain reaction for more than 80 years.

In just over two weeks in 1942, Italian-American physicist Enrico Fermi and his team arranged 42,000 bricks of ultra pure graphite and 40 tons of natural uranium into a spherical “pile” propped up by a massive wooden timber framework in an underground squash court at the University of Chicago. This was the world’s first man-made criticality.

The Antares test reactor used significantly more sophisticated materials: The fuel, HALEU containing TRISO fuel elements manufactured by BWXT, was arranged within a graphite moderated test core and if true to Antares conceptual design was regulated by control drums. Make no mistake though this was a barebones reactor.

The sodium heat pipes and heat exchanger that Antares intends to use to remove heat from the core and the closed nitrogen Brayton cycle turbine to convert that heat into electricity were absent from the experiment. The framing of this flash in the pan as having “reactors running” is a stretch.

So what’s the best way to understand the significance of achieving criticality in such a pared down system?

The combustor of a jet engine offers an illustrative analogy. Energy release is real but the combustor in isolation does not move an aircraft.

Without the precisely machined compressor feeding it air, the single crystal turbine blades extracting work from its exhaust alongside the multitude of systems and controls coordinating fuel delivery, lubrication, cooling and thrust management the combustor is simply a sophisticated flame thrower.

To run with the reliability required for commercial aviation these systems require years if not decades of design iteration, prototyping and testing.

A commercial reactor is fundamentally a heat engine, and the challenge lies in controlling, moving and converting significant quantities of heat into electricity.

Every component in that chain: fuel, cladding, pumps, valves, turbines, generators, control systems, instrumentation and safety systems, must function together with extraordinary precision under high temperatures, radiation fields, thermal cycling, and demanding operating conditions for years on end.

The June 4th criticality was an essential milestone to gather data validating reactor physics, fuel performance, and control system behaviour in the Antares core but it was a baby step on the long tedious march ahead towards a power producing reactor, let alone an economic one.

Nothing about this event has the ring of “dominance” about it. In the context of the Chinese approving 10GW of new large nuclear reactors per year and being responsible for 50% all new nuclear reactors currently under construction worldwide it was a footnote.

An empty vessel does however make the most noise.

The fact that a VC funded start-up got to this stage so quickly is certainly a regulatory breakthrough, but much less a technological one.

The company’s challenge now is traversing the valley of death that has claimed many a reactor venture before. It must prove that it can engineer the remainder of the reactor’s systems, satisfy regulators, operate its full systems on a Project Janus military base deployment, and finally attract commercial customers.

The latter may be the most challenging of all given the extreme diseconomies of scale of microreactors, but that analysis is for another time.

Like this post to keep us going critical

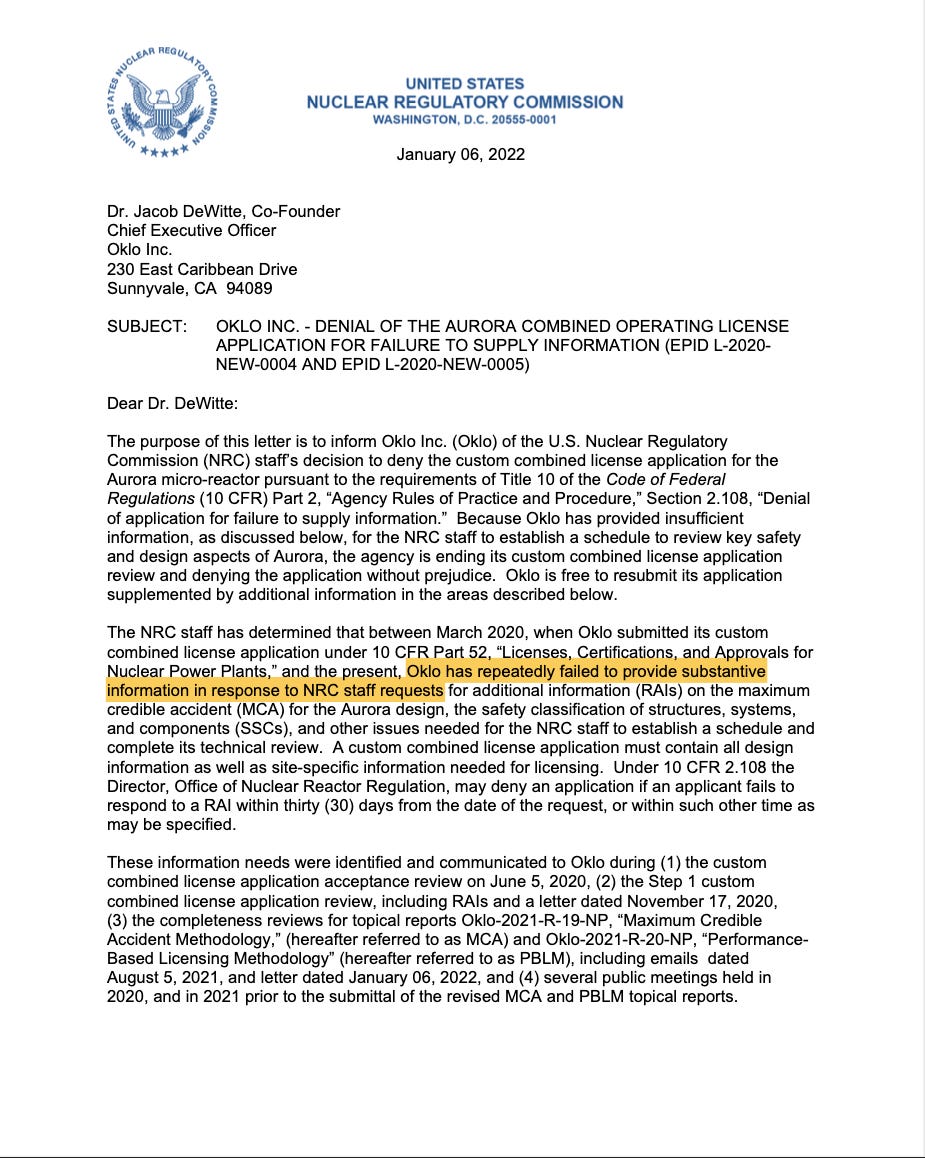

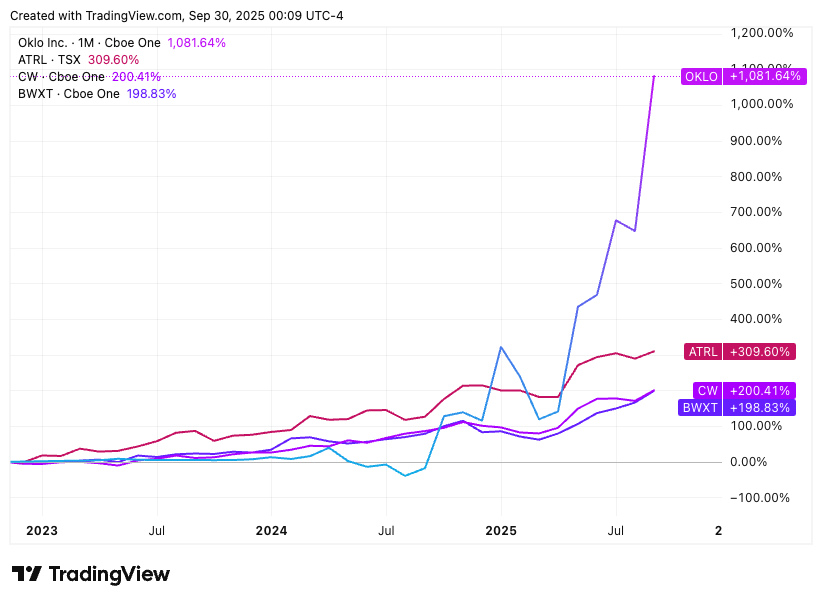

Oklo, which merged with Sam Altman’s SPAC in 2024 at an $850 million valuation, reached a peak market cap above $30 billion in 2025, largely on AI electricity demand expectations. Microsoft is reportedly paying $115/MWh for the revived Three Mile Island’s output under a 20-year contract, roughly double historic PJM wholesale prices.

The nuclear sector should not bite the hand that feeds it, but it should examine its palm lines very carefully, because there are now serious reasons to believe the AI demand narrative rests on questionable economics and over investment in an LLM-centric approach. While the technology has seduced many and has genuinely important use cases, limitations are emerging that may be intrinsic to LLM architecture itself.

The exploration of the evidence indicating an AI bubble is inspired by the accompanying podcast interview with returning guest David Helmer founder and managing partner at NTTW consulting. Stick around for the conclusion where I share my thoughts on which nuclear players get hit hardest.

Symptoms of an AI Bubble

Frontier labs have been reporting annualized run-rate revenues of $25 to $30 billion. These murky figures are calculated by multiplying a single strong month by twelve, often at a moment when a product launch like Claude Code can distort numbers well beyond their representative averages. Even accepting those numbers, they sit against enormous training and inference costs, in the case of OpenAI, roughly $600 billion through 2030. All of these compute costs pale in comparison to the supporting infrastructure investments in chips, server racks, datacentres, power and cooling which McKinsey projects to reach 6.7 trillion in capital expenditure by 2030.

Three years after 100 million users were collectively wowed by the Eliza effect of a purposefully designed human-like GPT3 chatbot, subsidized use is still the rule. It is the same playbook Silicon Valley used to underwrite cheap Uber rides and discounted DoorDash deliveries to upend traditional incumbents and establish market share. Sam Altman acknowledged in January 2025 that OpenAI was losing money on every $200/month ChatGPT Pro subscriber, with heavy users consuming an estimated $5,000 in compute: a 25-to-1 subsidy ratio.

The glitch with the LLM subsidy strategy is that the per-user cost of frontier AI is an eye wateringly expensive data centre, not a low wage driver’s time and unlike taxi rides and takeout food no one has yet demonstrated that the users who showed up for the subsidized LLM product will follow it to true market price.

In the absence of organic revenue what is propping up these investments is in part what technology analyst Azeem Azhar has called a “financial ouroboros:” the same capital cycling through chipmakers, cloud providers, and frontier labs in a closed loop. A single point of demand failure could now propagate through every balance sheet in the chain simultaneously.

The agentic era was supposed to be where the economics finally worked. However, early deployments are raising questions. Uber deployed Claude Code to roughly 5,000 engineers in December 2025 and exhausted its entire 2026 AI token budget by April, with heavy users burning $500 to $2,000 per month. The COO subsequently admitted the company could not draw a clear line between that spending and improvements in consumer products. Global research and advisory firm Gartner projects that enterprise AI bills will rise through 2030 even as per-token costs fall, because agentic workflows consume between 5 and 30 times more tokens per task than standard chatbot interactions. While still early in the technology’s deployment, a July 2025 MIT study of 300 enterprise AI deployments found that 95% delivered no measurable P&L impact.

Willingness to pay significantly more depends on products which are truly economically transformative. The obvious prize is white-collar labour displacement, a 5 to 10 trillion dollar opportunity. However, the predictions of Microsofts AI CEO, Mustafa Suleyman, in February of this year that most tasks that involve “sitting down at a computer” will be fully automated by AI within the next year or 18 months is looking increasingly outlandish. While there has been a junior white-collar slowdown brewing over the last few years it is largely explained by the extraordinary numbers of people hired by tech companies between 2020 and 2022 on the assumption that pandemic-era growth was permanent. ‘We are restructuring toward an AI-first workforce’ lands better with investors than ‘we hired 40,000 people we did not need during a zero interest rate frenzy,’ and CFOs have not been shy about exploiting the ambiguity.

LLM architecture a dead end?

Despite our hardwired tendency to anthropomorphize coherent language production stretching all the way back to Joseph Weizenbaum’s primitive ELIZA chatbot, Large language models are at their core next-token predictors: highly sophisticated auto-complete. They generate confident outputs that sound correct by pattern-matching against a vast training corpus but outside of domains like coding and mathematics, where outputs can be tested against an external ground truth, the model has no equivalent check on whether a fluent sentence happens to be a true one.

The resulting hallucinations and reliability problems appear not to be a temporary deficiency that more training data or compute will resolve. Initially scaling impressed researchers with emergent properties like multi-step reasoning and in-context learning such that it was informally codified into a scaling law. However the phenomenon seems to have plateaued with focus shifting to post training optimization. OpenAI cofounder Ilya Sutstever has stated that the age of scaling is ending and we’re back in the age of research. Yann LeCun, who spent 12 years as Meta’s chief AI scientist, departed in late 2025 to found AMI Labs on the explicit thesis that hallucinations are intrinsic to the LLM architecture rather than fixable with more data. “LLMs are too limiting,” LeCun stated. “Scaling them up will not allow us to reach AGI.”

These comments should raise skepticism about all in bets on a massive infrastructure and compute spend to support a technology that may not be able to meet expectations sufficiently to earn the revenues necessary to pay back the extraordinary investments.

The Fallout of an AI meltdown

If the AI bubble deflates, the nuclear sector absorbs collateral damage in proportion to how closely a given project was tethered to that capital.

Uranium fundamentals remain intact regardless of what happens to Nvidia’s valuation. Commercial inventories are thin. The secondary supply sources that suppressed prices for 30 years are gone. A projected gap of more than 1 billion pounds between utility requirements and currently visible supply over the next 20 years looms over slow but steady demand growth from China, India, and Russia’s export program.

A speculative correction will likely push uranium spot prices down, as financial buyers exit and risk-off sentiment dominates. This however could worsen the structural deficit heading into the 2030s as lower prices could delay investment in new mines that must come online quickly to narrow the supply gap.

The advanced reactor companies that tech giants chose as partners occupy a more precarious position. The logic behind those choices reflected what might charitably be called disruption bias: a narrative driven tendency to reach for what are being portrayed as “advanced” reactors held back by overzealous regulation while an inferior conventional reactor fleet failed to make good on the promise of electricity too cheap to meter.

Each tech giant has chosen its own distinct advanced reactor darling, a pot pouri of technologies that have frustrated previous efforts to commercialize them. Meta chose the sodium fast reactor vendor Oklo, Google chose a TRISO fueled molten salt cooled reactor concept being developed by Kairos and Amazon chose the recently IPO’d pebble bed high temperature gas reactor start-up X-Energy.

All of these companies are in the protoype stages. None have a licensed, operating commercial reactor design. Each one is asking its “Magnificent Seven” patron to co-finance the creation of industrial supply chains, regulatory precedents, and fuel fabrication infrastructure that does not yet exist at commercial scale.

Uprates are the most defensible position in a correction scenario. The construction risk is lower, the grid interconnection is already built, and the incremental capacity comes online on a timeline measured in years rather than decades. See my interview below with James Krellenstein and Robb Steward of Alva Energy Inc. for the bulls case for this kind of “boring nuclear” additions.

If demand projections are revised significantly downward as the AI data centre buildout slows, stranded baseload generation becomes a genuine utility-sector fear and the business case for large new builds weakens materially. Demand certainty is the foundation beneath every capital-intensive, long-duration, high-risk energy project, and that AI driven demand certainty looked considerably more solid in 2023-2025 than it does today.

The projects most likely to survive a bursting AI bubble are the ones that were least dependent on AI demand projections or venture-capital patience: refurbishments, uprates, and the least technologically speculative new build reactors, those that already have a licensed design, an operational history and a utility customer with growing demand not solely dependent on AI datacentres.

Without a genuinely transformative AI product that can command prices reflecting actual compute costs, the capital cycling through chipmakers, hyperscalers, and frontier labs has no exit other than a correction. Nuclear investors who have anchored their business cases to data centre demand projections made at the peak of that cycle should be doing the math on what their projects look like if those projections are halved.

Like this post. Tokens of appreciation are free and help us to bring you more great content.

The Book of Mirdad by Mikhail Naimy

I have another life. Outside of energy journalism and advocacy I am an ER doctor. The other night, I had an interaction with an elderly patient that unexpectedly brought my two lives together. He was in his late 70s. He’d lost his house, was living out of his car and was drinking more than he should. He was in rough shape.

I asked him what he used to do for a living.

“Draftsman at Ontario Hydro.”

I probed further. Turns out his career included drawing up blueprints for every one of Ontario’s nuclear power plants. I told him I was interested in nuclear power; he understandably but rather depressingly interpreted “interested” as “anti”.

“Yeah, a lot of people don’t like it,” he said.

I clarified my position, thanking him for being part of the great generation who’d helped to build the infrastructure that underpins our health and prosperity to this day.

He was taken aback. It took a few seconds but his eyes lit up with pride and a sense of rediscovered dignity that shone through his matted hair and unwashed clothes as he lay vulnerable on that emergency room stretcher.

Subscribe now

Before Computer Aided Design (CAD) arrived in the 1980s, draftsmen stood at drawing boards and used pencils, compasses, rulers, and protractors to translate engineering intent into buildable reality. They specified not just what each system needed to do but exactly where every pipe run, cable tray and penetration would sit in three-dimensional space, how it would connect to everything around it, what clearances it needed and how a tradesman standing in front of it with tools in hand would actually build it.

The drawings conducted a symphony of mechanical, electrical, and civil disciplines. If two systems conflicted, someone who understood both the design intent and the physical reality had to catch it at the drawing board before it became an expensive problem in the field.

The 16 reactors that now supply roughly half of Ontario’s electricity were built from hundreds of thousands of such drawings.

My generation struggles to build even modest infrastructure projects: The Toronto Eglinton Crosstown Light Rail Project began in 2011 and only went into service in February of this year. A series of technical problems and associated cost overruns meant that a 19-kilometre light rail line took 15 years to open. We seem to have forgotten how to build the infrastructure we need to renew and grow our cities.

In contrast our parents’ and grandparents’ generations performed miracles. Between 1966 and 1993 Ontario’s power demand nearly tripled, from 51 TWh to 135 TWh. Engineers and tradespeople managed to keep up by constructing 20 large CANDU reactors between Pickering, Darlington and Bruce nuclear generating stations, all in just 27 years. In the current moment we look to China with a mixture of awe and unease as they build highways, bridges and power plants at what feels like lightning speed. We once moved at that pace.

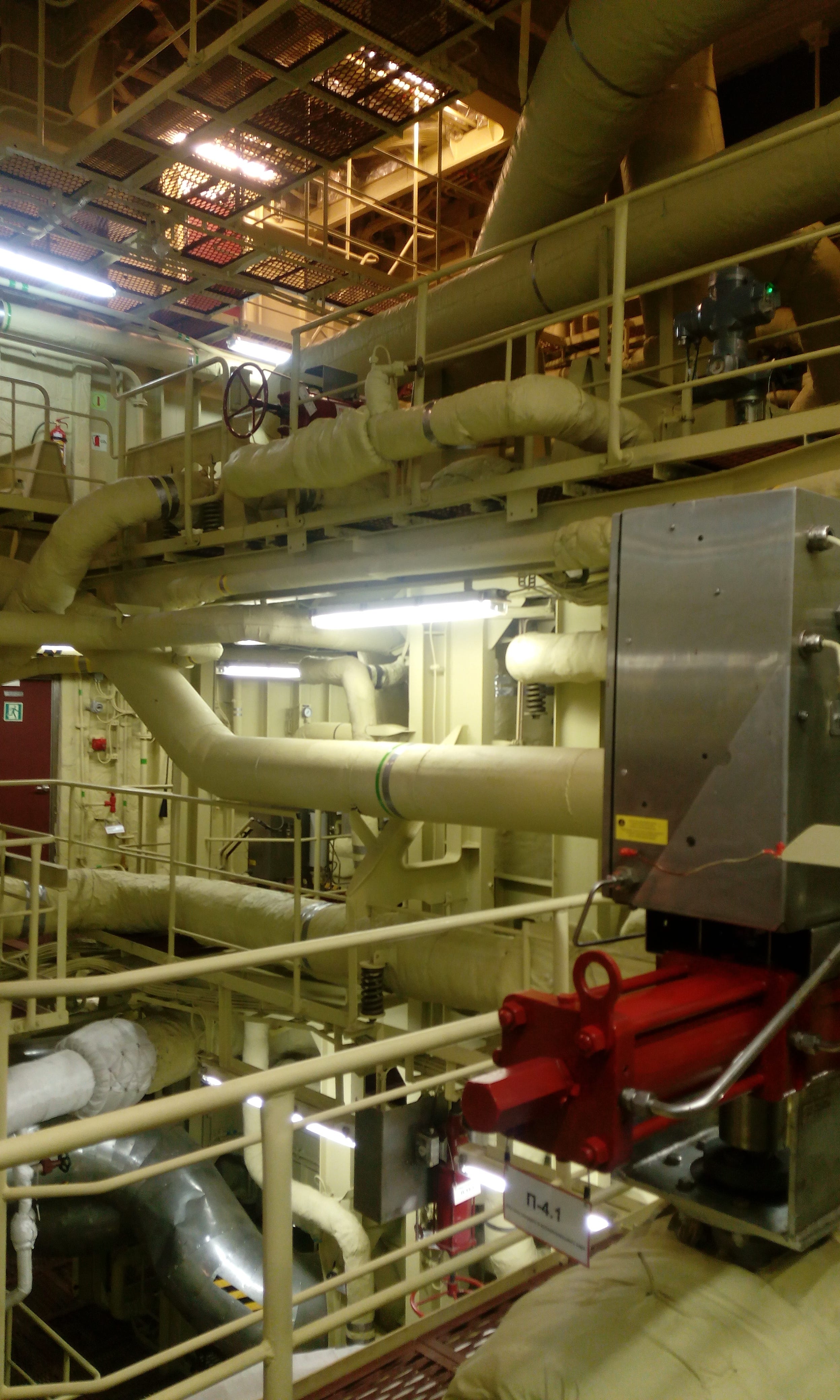

To visit the nuclear stations drafted by my patient, as I have done over the last 8 years, is to be struck both by their monumental size and the sheer volume of electricity they generate. Today these reactors produce power sufficient for 10 million households, all from four buildings the size of modest shopping malls. This energy base has underpinned our productive economy, enabling booming auto and steel sectors and the manufacturing base of Canada’s most industrialized province.

In that ER hallway, speaking about more than just his worn down body, I saw reflected in this man’s aging eyes the harsh hospital lights powered mostly by nuclear energy: literally, the fruits of his labour.

Our society seems finally to have reached a political consensus that we should not be tearing down what my friend and energy historian Emmet Penney refers to as our industrial cathedrals built for us by this great generation: edifices like our nuclear power plants at Pickering, Darlington and Bruce.

Share

The champions of that kind of vandalism have been decisively defeated. Just this week Avi Lewis, the newly crowned Leader of Canada’s left wing New Democratic Party, once the historic party of labour representing the interests of workers like my patient, now the party of urban elites, renounced his previously firmly held position favouring nuclear phaseout.

I’m glad to have played my role in these battles as co-founder and President of Canadians for Nuclear Energy. From 2020-2024 against what we were told were impossible odds, we led the successful campaign to save and refurbish the 2000 MW Pickering B nuclear station, which was drafted by my patient and had been slated for decommissioning in 2025. The result? The preservation of 7200 direct and indirect jobs and 15% of Ontario’s electricity production for another 30 years. The power plant will last at least 80 years and outlive the now grey haired environmentalists who made it their live’s work to tear it down.

It was an honour to provide clinical care for this man and satisfying that in my strange moonlighting career as a nuclear energy advocate I had also cared for and preserved his legacy.

As I grow into my mid forties and spend the best parts of my days trying to instill the values and lessons I’ve gathered into my 7 year-old son, I have become more sentimental when thinking of my elders and their contributions. Beyond displays of gratitude we owe them something deeper.

It starts with ensuring that our children and grandchildren understand and steward their inheritance, never take it for granted and draw inspiration to pick up their tools to leave their mark, continuing our never ending struggle against entropy and decay, to build healthy, wealthy societies worthy of our ancestors’ toil.

Like this post and share it, consider it a blueprint for intergenerational gratitude.

Share

The gas turbine emerged only in the 1930s. It is the most recent and the last prime mover. It has subsequently become the undisputed champion of global aviation and increasingly a dominant source of dispatchable electricity on grids around the world. Demand for gas turbines is now surging as AI data centres require rapid additions of baseload power.

John Barber patented a recognizable gas turbine cycle in 1791, describing a compressor, a combustion chamber, and a turbine wheel in sequence. John Brayton worked out the thermodynamic cycle that still bears his name in 1872. By the time Frank Whittle ran his first jet engine prototype in 1937, engineers had been sketching versions of the same concept for 65 years.

A gas turbine is, at its core, a device that compresses air, adds fuel and combusts it to produce extremely hot gas to spin a turbine. As engineers push the thermodynamic limits through hotter temperatures the engineering reality is that the hot gasses leaving a modern combustor are well beyond the melting point of the alloys from which the turbine blades are made.

The compressor in a large commercial engine reaches pressure ratios above 40:1, requiring blade geometries machined to tolerances measured in microns across components spinning at thousands of revolutions per minute. In aviation applications the containment structure must be light enough to fly and strong enough to survive a blade release without sending a fragment through a fuselage.

The extreme safety and reliability requirements in aviation and power generation impose a slower pace in innovation cycles reminiscent of the nuclear industry. In the end the gas turbine’s limits are defined by the cumulative materials and manufacturing knowledge required to operate at the edge of its thermodynamics. These factors determine who can build it, and why it is one of the few technologies that the West still decisively dominates, for now.

The following essay is based on a conversation on the Decouple Podcast with Dr. David Helmer, a veteran of GE Global Research and the American Society of Mechanical Engineers (ASME) K-14 gas turbine heat transfer committee.

The impetus for the development of the gas turbine

What finally shifted the gas turbine from blueprints to a functioning engine was the pressures of a World War in which aviation had become increasingly central. Through the 1930s, piston engines remained the only practical option for powered flight, and their limitations were becoming a military liability.

Piston engines struggle at higher altitudes, where thin air starves combustion and power drops sharply. They are mechanically complex, with hundreds of reciprocating and rotating parts subject to vibration, wear, and failure. Their power-to-weight ratio, while adequate for the propeller aircraft of the era, left little room for the performance gains that military planners were demanding: greater speed, higher altitude, longer range. Frank Whittle in Britain and Hans von Ohain both recognized that the piston engine had reached a ceiling that the Brayton cycle could break through.

The early engines were extraordinary in concept and crude in execution. Whittle’s W.1, which powered the Gloster E.28/39 on its first flight in May 1941, produced 860 pounds of thrust and had a service life measured in dozens of hours before its primitive nickel alloy components failed. The materials problem, which would come to define the entire subsequent history of the technology, had to wait.

What the war years established, beyond the basic feasibility of jet propulsion, was the industrial and institutional foundation that would separate the countries that could build serious gas turbines from those that could not. Britain transferred its early jet technology to the United States during the war which seeded GE and Pratt & Whitney’s programs and gave American manufacturers a running start they have still not yet relinquished. Germany’s early expertise withered due to the destruction of industrial infrastructure, postwar restrictions on German military aviation and the migration of engineers into allied programs after the war. They only recovered in 1960-70’s but this time in the heavy frame gas turbine power generation market.

The know-how embedded in these technology transfers was only partly captured in drawings and specifications. Much of it lived in the hands and judgment of engineers and machinists as tacit knowledge.

The material science miracles of the modern gas turbine

The central engineering challenge of the gas turbine is that it operates in conditions that should destroy it. Hot gas leaving a modern combustor reaches around 1,500 degrees Celsius. The nickel superalloys used in turbine blades begin to lose structural integrity at temperatures several hundred degrees below that. Engineers have spent decades developing systems to keep them alive: internal cooling channels machined into the single crystal turbine blade itself, thermal barrier coatings and the superalloys doped with rhenium that extend the temperature range the metal can tolerate before creep and fatigue set in.

The design philosophy imposed by the extreme conditions within the engine has no real parallel in other high-stakes engineering domains. A turbine blade in service is always degrading or in the parlance of the industry “experiencing distress.” It cannot however fail catastrophically. The first turbine stage can be “mostly missing,” burned back by inadequate cooling or a material defect, and the engine will often still fly for many more flight cycles until measured degradation crosses a defined tipping point. The system is designed to tolerate continuous partial failure of its most stressed components because pushing to the edge of material limits is the only way to achieve the power density, fuel efficiency and longevity that modern aviation, and power generation demand.

This approach, coupled with the incredibly high safety stakes involved in commercial aviation, requires extensive evaluation. That risk management focus imposes a conservative innovation cycle well familiar to those knowledgeable about nuclear power. A modification to a commercial jet engine requires bench testing of the component in isolation, then stand testing under representative operating conditions which sometimes includes the rigors of the famous chicken gun and blade out scenario. Next is flight and endurance testing for hours accumulation, and finally aircraft recertification if the change affects airframe performance.

The gap between the GE90 and its successor the GE9X is roughly 25 years, a near irreducible time required to validate changes in a system where GE applies 6 sigma quality standards across its engine programs or fewer than 3.4 defects per million.

For reference SpaceX which has moved at lightning speeds in its rocket development is able to accept an engine failure rate of roughly 1% across its launch program.

Gas Turbines go Terrestrial

When a gas turbine leaves the aircraft and gets bolted to the ground, some of the engineering constraints relax. Weight stops mattering and bird ingestion becomes a smaller problem but precision engineering around performance and reliability still matters. Unlike a jet with relatively short duty cycles, a utility turbine may be asked to run continuously for weeks, while every small loss in efficiency compounds into fuel cost and every excess maintenance outage becomes lost revenue.

The most interesting design option that became available to terrestrial gas turbines, however, was the potential to use their extremely high quality waste heat which averages 550 degrees Celsius. A gas turbine in simple cycle operation, running alone without any additional heat recovery, converts fuel to electricity at thermal efficiency in the low to mid 40s percent. Unlike an aircraft, where that heat is simply dumped into the ambient air, on the ground it can be routed into a heat recovery steam generator, which uses it to boil water and drive a steam turbine in a second, separate power generation cycle.

Early combined cycle plants existed decades before, but the concept only became commercially transformative in the 1980s and 1990s as improved materials, higher turbine inlet temperatures, blade cooling, digital controls, and increasingly sophisticated combustion management pushed gas turbine performance high enough to make the economics compelling. Combined cycle plants could now exceed 50 percent thermal efficiency and eventually move past 60 percent, allowing natural gas to compete directly with coal for sustained baseload electricity generation rather than merely serving as an expensive peaking fuel.

At the same time, deregulated electricity markets were expanding across North America and Europe, rewarding technologies with lower upfront capital costs, shorter construction schedules, and operational flexibility. Combined cycle gas turbines fit that environment unusually well.

They were efficient enough to run continuously, could ramp up and shut down far more easily than coal or nuclear, and avoided fuel costs entirely when offline, an important advantage in volatile merchant power markets. Environmental pressure on coal was also rising due to concerns over sulfur dioxide, particulates, mercury, and eventually CO2 emissions, areas in which natural gas is a demonstrably cleaner alternative to coal.

GE, Siemens Energy, and Mitsubishi Heavy Industries spent the late 1990s and early 2000s expanding manufacturing capacity aggressively around the assumption that the world was moving toward a gas dominated electricity system built on combined cycle gas turbines. Annual heavy duty gas turbine orders reportedly reached 120 to 140 gigawatts globally in the early 2000s.

Then a perfect storm hit. The 2008 financial crisis crushed electricity demand growth across much of the OECD, wind and solar rapidly absorbed incremental generation growth and the merchant power boom had already saturated the American market with relatively new gas plants. Global heavy-duty turbine orders fell to roughly 30 to 40 gigawatts annually by the mid-2010s, a collapse of more than two-thirds from peak.

The consequences were severe: massive layoffs, factory underutilization, write-downs, collapsing margins, and an investor confidence collapse that fed the broader GE crisis of the late 2010s. Under Larry Culp, GE eventually broke itself into 3 separate companies: GE HealthCare, GE Vernova, and GE Aerospace.

Today GE Vernova, Siemens Energy, and Mitsubishi face another major positive demand shock driven by AI data centers and electrification, with delivery queues stretching toward the early 2030s. This time none of them are expanding recklessly recognizing the possibility of an AI bubble, a strategic stance somewhat akin to the newfound capital discipline in the U.S. shale patch that evolved after its most recent price collapse.

The gap is being filled by companies like FTAI power which is currently taking CFM56 engines off retired commercial aircraft, converting them for ground-based power generation, and selling that capacity to data centers that cannot wait for purpose-built equipment.

Why the West is Still Dominant in Gas Turbines

Commercial jet engine manufacturing is one of the most concentrated industries on earth. GE Aerospace, Rolls-Royce, Pratt & Whitney and France’s Safran produce essentially all of the turbofan engines powering large commercial aircraft.

Fighter jet engines operate under a different set of constraints: shorter service lives, no six sigma safety requirement, and performance prioritized over durability. Both Russia and China have developed credible military engines on that basis, but the jump from a capable fighter engine to a certified commercial turbofan is a different engineering problem entirely.

So why has that dominance proven so durable despite decades of well-resourced attempts to break it? The answer has several mutually reinforcing layers.

First is tacit knowledge; the accumulated manufacturing process understanding, inspection infrastructure, and decades of operating data required to demonstrate 6 sigma reliability simply cannot be extracted from a blueprint or a reverse-engineered component.

Secondly, certified batches of the doped superalloys required for hot section components are sourced from a small number of qualified suppliers whose relationships with the leading manufacturers took decades to build.

Lastly, the precision machine tools required to produce single crystal turbine blades to micron tolerances are themselves a specialized product made by only a handful of manufacturers, with German toolmakers historically prominent among them.

Behind it all sits a century of accumulated operating hours and failure data that the leading manufacturers have built into their design and certification processes. The gap China, for example, faces is having to reconstruct every one of those layers simultaneously.

The terrestrial gas turbines market is similarly concentrated in the Western bloc. Siemens Energy and Mitsubishi Power compete effectively in the heavy frame market alongside GE. The materials demands are less extreme and the certification requirements less stringent but neither Russia nor China has yet produced a competitive large combined cycle turbine without technology transfer or joint venture arrangements with one of the established Western or Japanese leaders.

Russias Gas Turbine woes

The Russian case illuminates what happens when a high-performance industrial capability like gas turbines is simultaneously hit from multiple directions. The deterioration predates the 2022 invasion of Ukraine by decades, beginning with the Soviet collapse and the economic chaos that followed. The engineering talent base that had sustained Soviet aviation and power generation programs dispersed, with experienced engineers leaving for better-paid work abroad or moving into unrelated sectors as defense and industrial budgets collapsed.

The materials problem compounded the talent problem. Russia’s ability to maintain supply relationships for specialized parts, never strong by Western standards, eroded through the 1990s and 2000s as the industrial base contracted.

Then came the precision machining problem. Germany was Russia’s primary supplier of the high-precision machine tools required to produce turbine components to the tolerances modern engines demand. That relationship was embedded in a broader economic interdependence: Russian gas flowing west, German industrial equipment flowing east. Post-2022 sanctions put an end to that special Ost-Politik relationship.

GE’s withdrawal from Russian power generation maintenance under threat of sanctions compounded the crisis at the operational level. GE had engineers on the ground maintaining the most capable turbines running on the Russian grid, many of them originally supplied through the Siemens joint venture arrangements. When those engineers left, the knowledge and tooling they brought with them also disappeared.

The Russian grid is now running aging equipment with a degraded maintenance capability, shortening component life further and creating a compounding reliability problem. Recent adaptations by Russia to overcome sanctions pressure include turning to Iran which has a small but self sufficient gas turbine industry.

The West still dominates. When will the rest catch up?

The gas turbine waited nearly 150 years from theory to practice to join the pantheon of prime movers because the materials and manufacturing precision it required didn’t exist. Its arrival reorganized the world: global aviation, just-in-time supply chains built on air freight, and the most efficient heat engine ever built for generating electricity.

That the Western bloc and Japan still decisively control this technology after nearly a century is the outcome of compounding advantages in materials science, precision manufacturing, tacit institutional knowledge, and certified failure data accumulated across millions of operating hours.

China’s “Two Engines” programme, launched in 2013 and backed by sustained state investment, has not yet closed that gap in either commercial aviation or heavy-frame combined cycle turbines. Whether it eventually does will matter as much to the future balance of industrial power as it does for the semiconductor or battery supply chain contest currently dominating policy attention.

The AI demand surge has arrived into this constrained supply environment with considerable force. CCGT plant costs have roughly tripled over the last 3 years, order books stretch toward the early 2030s, and the gap is being filled in part with jet engines from retired aircraft converted for ground-based power generation. Whether the demand wave will persist long enough to justify genuine capacity expansion, or correct as the 1990s boom did, is the question that manufacturers must judge.

Gas turbines represent an accumulated industrial inheritance which took nearly a century to come within small percentages of theoretical maximum efficiencies. The queue is long in part because the capabilities of those who have mastered the last prime mover are exceptionally rare.

For more on David Helmer visit his website https://www.nttwconsulting.com/

Like this post to keep us pushing the edge of our material limits.

The first part of this analysis published last week established why uranium behaves unlike any other commodity: no real-time price discovery, demand that arrives in waves separated by years of buyer silence, and a cyclical pattern sustained across 6 decades by a secondary supply wedge that has now been exhausted.

Today we examine both sides of the ledger simultaneously, because the supply story and the demand story are not independent.

They are pressing against each other in ways the aggregate global supply-demand charts do not capture. The geopolitical fracturing of the market means the relevant question is no longer whether there is enough uranium in the world. There probably is. The question is whether there is enough in the western supply chain, and that is a considerably more uncomfortable place to look

.

What’s structurally different on the supply side

The absence of secondary supply changes the mathematics of the uranium market in a way that has not yet been fully priced into conventional analysis. When the next demand surge arrives, there is no inventory wedge to release.

The price signal that would previously have been dampened by a flood of government stockpile material or down-blended warheads will now have to travel all the way to primary producers, who will have to respond by sinking capital into new mines that take years to permit, build, and bring to full production. That lag between price signal and supply response is the structural feature that distinguishes this cycle from every predecessor.

Cameco’s position within that structure is deliberate. The company still has 30% of its licensed, permitted production capacity either in care and maintenance or operating below full rate, held in reserve explicitly because sufficient long-term contracting has not yet arrived to justify restart. Isaac was direct about this: there is no build-it-and-they-will-come model in uranium.

Producers commit capital after securing forward demand, not before. Cameco’s Millennium deposit and other Athabasca-adjacent assets remain in the ground as inventory, pounds with a balance sheet value that appreciates as the price environment improves, available for development when the contracting signal justifies it. The discipline is a deliberate strategy of matching production decisions to marketing outcomes rather than running mines at capacity and hoping the market absorbs the output.

Kazatomprom has arrived at the same position by a harder road. Having learned during the post-Fukushima bear that maximizing volume destroys the value of the national asset it is supposed to steward, Kazakhstan’s state producer now runs a contracting-first strategy that mirrors Cameco’s. The production target reductions that initially looked like a sulfuric acid supply problem, output guidance cut 10 to 15% at first and now closer to 25%, are better understood as a capital allocation decision dressed in operational clothing.

The sulfuric acid shortage is real with phosphate fertilizer production competing for available supply, and the constraint genuinely biting into production volumes that Kazatomprom had already sold forward. Building a new sulfuric acid plant takes 18 to 24 months and costs $200 to $300 million. Kazatomprom has done exactly this before and the engineering knowledge exists.

The decision to fund and begin construction came as contracting conditions improved through 2023, not at the moment the shortage first appeared. The plant is now under construction and expected online in 2026. That it was conceived and financed alongside a strengthening contract book, rather than purely in response to an operational emergency, is the tell.

What settles the supply discipline question is Kazatomprom’s 2026 guidance, which has nothing to do with acid. The company announced a further roughly 10% production cut for 2026, stating explicitly that current prices and the existing level of uncovered demand are not sufficient to incentivise a return to full output.

New Athabasca Basin development offers genuine upside against this tightening but carries first-of-a-kind risk that promotional materials for junior developers tend to understate. NextGen Energy’s Rook One project anticipates production of around 30 million pounds per year, which would be transformative for the western supply picture if it materializes on schedule.

But Cigar Lake’s mining method was built on decades of institutional accumulation by a company that had already operated McArthur River and learned the hard way what fractured sandstone and unconformity-hosted ore bodies do when water management fails. The freeze engineering, the jet-boring system, the radiation handling protocols for 15% ore grades: none of this existed as received knowledge before Cameco developed it.

A new operator in a different geological setting, without that institutional base, faces engineering challenges with no established playbook. Isaac described the dynamic precisely: junior uranium projects tend to attract elevated valuations before they have entered what he called the valley of development, the long and capital-intensive period between exploration promise and operational reality.

Cameco’s own reserve and resource pipeline contains around one billion pounds, all adjacent to existing infrastructure and already on the balance sheet. Any external acquisition has to clear that internal hurdle rate. At current junior valuations, very few external projects do, and the moment when they will is the moment those projects have moved through the valley and been repriced accordingly. There is a significant incumbent advantage.

The geopolitical dimension of the supply picture adds a further layer of tightening, one that aggregate global supply-demand charts tend to obscure entirely. Uranium has always been a highly trade-dependent commodity; for most of the industry’s history, around 90% of uranium production came from countries with no civilian nuclear power program, while around 90% of demand came from countries with little or no domestic uranium production. The system worked because no one worried much about where the uranium came from. The unipolar exception to the rule made that comfort possible. Emerging multipolarity is challenging what in retrospect was a naive assumption.

Share

Multipolarity and a fracturing market

The standard supply-demand analysis of the uranium market operates at the global aggregate level: total pounds produced, total pounds consumed, projected deficit or surplus. That framing was adequate for a world in which uranium flowed freely across borders toward whoever offered the best price and utilities had no preference for origin. That world is gone, and the aggregate framing now obscures more than it reveals.

The uranium market is splitting into two increasingly separate procurement spheres. On one side sit US, European, Japanese, and South Korean utilities buying uranium that can pass ESG screens, government security reviews, and shareholder scrutiny.

On the other sit Chinese state enterprises and Rosatom export clients building reactors and fueling them through supply chains largely invisible to western price reporting and largely inaccessible to western buyers. The question that matters for uranium investors is not whether there is enough uranium in the world. There probably is. The question is whether there is enough in the western supply chain, and that is an increasingly different and more uncomfortable question.

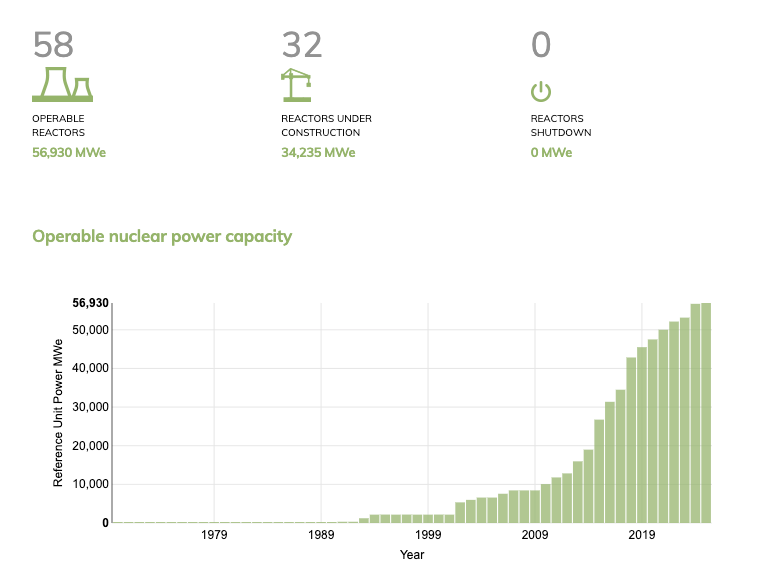

China’s nuclear ambitions alone reframe the demand picture in ways the aggregate numbers do not capture. China currently operates around 62 reactors and has roughly 34 more under construction, with stated government targets pointing toward 150 GW of installed capacity by 2035, roughly triple today’s fleet. That uranium demand is being served through a supply architecture running parallel to the western term market: bilateral offtake agreements with Kazakhstan and Uzbekistan, African production assets acquired by Chinese state enterprises, and processing arrangements that often route material through Russian infrastructure. None of this volume shows up in western spot or term prices as demand. It disappears from the pool of available western-origin supply without generating a visible price signal in the markets western investors watch.

The ownership map of global uranium production makes this dynamic more acute than the geography suggests. Kazatomprom is state-owned. Uranium One, which holds significant Kazakh production stakes, is owned by Rosatom. CNNC controls Rössing in Namibia, with output largely committed to Chinese offtake, and Husab, also among Namibia’s larger producers, is similarly Chinese-controlled.

Namibia looks like a western-friendly source until that ownership layer is examined. Niger’s Somair mine was effectively removed from the western supply chain by the 2023 coup. The geographic map of uranium production and the geopolitical map of uranium availability are not the same map, and confusing them produces dangerously optimistic supply assessments.

The spot and term prices that western investors watch are prices in the western procurement sphere. As western-origin supply tightens relative to western demand, those prices will increasingly reflect western-origin scarcity rather than global aggregate adequacy. The fracture is not symmetric, and the side bearing the greater adjustment cost is the side that spent the post-Cold War decades assuming global commodity markets were a permanent and neutral feature of the energy landscape.

What’s structurally different on the demand side

The demand transformation driving this bull has two distinct layers that are worth separating before examining how they interact. The first is the reversal of the post-Fukushima western phaseout. The second is a class of demand that did not exist in any previous uranium cycle. Together they are pressing against a supply base that is simultaneously tightening for the structural reasons described in the previous section.

Russia’s invasion of Ukraine in February 2022 was the demand-side inflection point. Before the invasion, energy security was a minor consideration in power planning; after it, energy security became the dominant concern. Nuclear’s profile changed accordingly. A technology that was sunsetting as a legacy baseload asset in increasingly deregulated western grids was suddenly being re-examined as a mature, dispatchable, carbon-free power source that does not depend on fuel imports from geopolitically unreliable suppliers.

The irony that Russian enrichment services remained deeply embedded in western fuel chains long after the invasion made the point more viscerally than any policy paper could. Belgium reversed its phaseout. Japan began restarting reactors that had sat idle since 2011, with a government target of returning 30 or more units to service. The United States passed legislation extending production tax credits for existing nuclear plants and strengthening support for new construction, while several European governments that had treated nuclear as a managed decline reclassified it as critical infrastructure.

The reactor life extension wave matters enormously for uranium demand because it converts what had been scheduled demand destruction into sustained long-run consumption. A reactor expected to retire in 2030 that instead receives a subsequent license renewal to 2050 adds 20 years of uranium conversion, enrichment, and fabrication demand. Given the relatively small fleet of global reactors, each reactor is individually responsible for roughly 0.2% of global demand. Multiplied across the US fleet, where subsequent license renewals are now the norm rather than the exception, and across Europe and Japan, the aggregate addition is substantial.

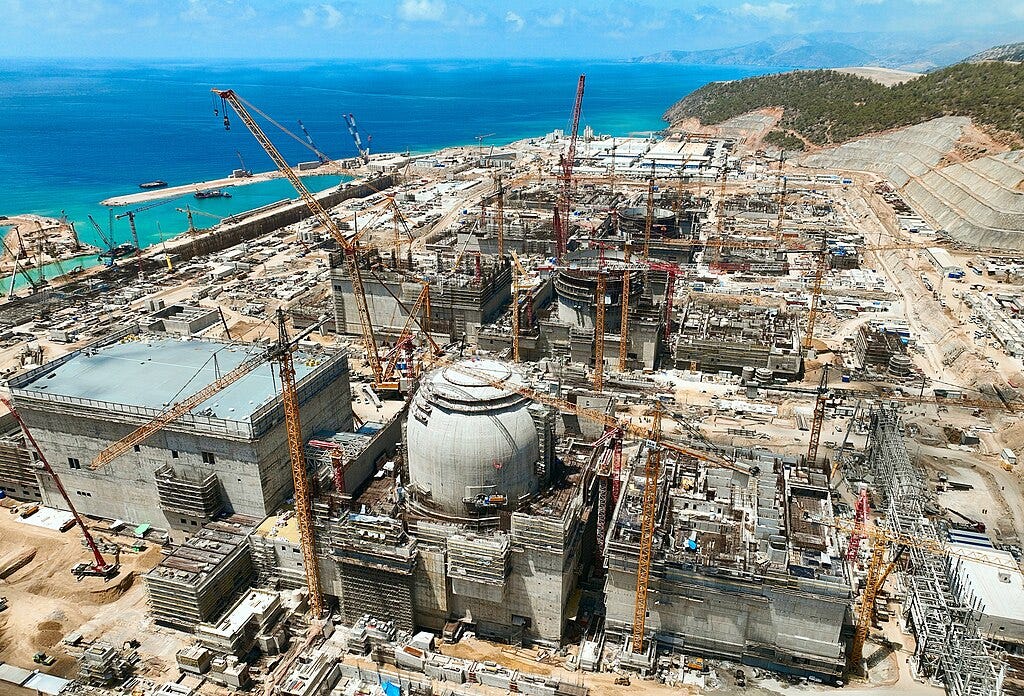

Roughly 70 reactors are currently under construction globally, a figure not seen since the 1970s construction wave, and the uranium demand from those reactors is being contracted years before the plants begin operating. The contracting signal is already building in the term market even though the physical consumption is still years away.

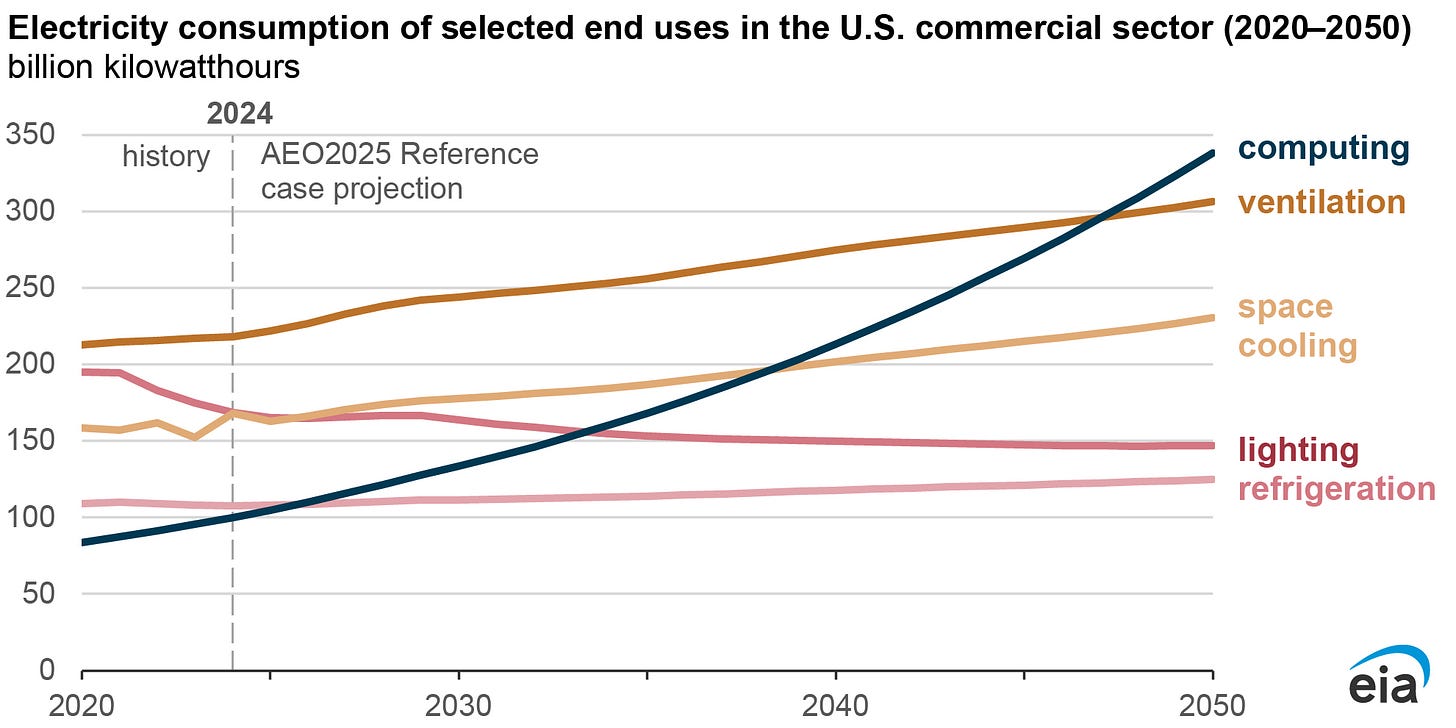

Then there is the data center and artificial intelligence demand signal, which did not feature in uranium investment theses as recently as three years ago. Microsoft’s agreement with Constellation Energy to restart Three Mile Island Unit 1, Amazon and Google signing nuclear power purchase agreements, and a broadening field of technology companies explicitly seeking firm 24-hour carbon-free baseload to power compute infrastructure have introduced a class of buyer into the nuclear power market with no historical precedent.

These buyers carry deep balance sheets and a demonstrated willingness to sign long-duration contracts to secure power supply certainty, and their demand is structurally incompatible with intermittent generation: a data center cannot tolerate the output variability of wind and solar without storage infrastructure that does not yet exist at the required scale and cost. Nuclear is the only mature technology that satisfies both the carbon and the reliability constraint simultaneously. The data center signal is still early but it is layering onto an already tightening picture rather than driving it independently.

The procurement sequencing laid out in Section 1 gives a precise read on where western utilities currently sit within all of this. Conversion prices are at historic highs; the western conversion market, dominated by Cameco’s Port Hope facility and Orano’s Metropolis Works, has essentially no spare capacity and is fully contracted well into the next decade.

Enrichment is similarly tight: after the effective sanctioning of TENEX, Russia’s enrichment export arm, western utilities were left with Urenco and Orano as their primary options, both running at high utilization, and new enrichment capacity takes 10 or more years to permit, finance, and construct. Fabrication contracted, enrichment contracted, conversion contracted. The uranium contracting wave has not yet fully arrived. When it does, it will hit a primary supply base deliberately held in partial restraint, with no secondary supply available to buffer the price signal.

What Cameco’s Vertical Integration Signals

Cameco’s growing vertical integration spans the full western nuclear fuel cycle by design. The 1988 merger of two Canadian Crown corporations created a company that ran from Athabasca Basin mining through milling, refining, and CANDU fuel fabrication from the outset. What has changed over the subsequent three decades is the deliberate extension of that integration into the light water reactor fuel cycle, which accounts for roughly 92% of the world’s operating reactors, culminating in the Westinghouse acquisition completed with Brookfield Asset Management in 2023.

That acquisition is best understood as demand creation. Between what Cameco handles for pressurized heavy water reactors and what Westinghouse handles for light water reactors, around 65% of western world fuel bundles pass through a facility owned by one of the two companies. Every AP1000 that Westinghouse sells and builds is 80 to 100 years of upstream demand for uranium, conversion, enrichment, and fabrication. The logic is circular in the most productive sense: building reactors creates the long-run demand that justifies investing in the upstream supply chain to serve them.

In the fracturing market described in the previous section, Cameco’s ownership structure is itself a competitive asset in a way it was not a decade ago. Western utilities under government pressure to demonstrate supply chain security are not indifferent to the fact that a long-term contract with Cameco is a contract with a Canadian-domiciled, privately owned company whose assets sit in Saskatchewan and Ontario, jurisdictions with stable rule of law and no plausible scenario in which production gets diverted to a state strategic priority. That provenance premium is real and growing as geopolitical sorting accelerates.

Cameco’s Athabasca Basin operations rest on institutional knowledge that cannot be acquired quickly regardless of capital availability: freeze engineering, jet-boring protocols, radiation management at ore grades with no parallel elsewhere in the western world. That knowledge lives in a small workforce operating in one of the most remote industrial environments on the planet, and it is not easily replicated. NexGen and Denison are competing for the same scarce pool of experienced operators and engineers that Cameco has spent decades cultivating.

The labour market in northern Saskatchewan is not elastic. You cannot import this expertise from a copper mine or a conventional uranium operation in Kazakhstan or Namibia. The tacit knowledge embedded in Athabasca Basin operations is specific to that geology, that ore grade, and those extraction methods, and it accumulates slowly through direct experience rather than capital deployment.

Each new deposit presents its own first-of-a-kind engineering problem: McArthur River and Cigar Lake sit 55 kilometres apart and require fundamentally different extraction strategies, and there is no reason to expect the next generation of deposits present less novel mining engineering challenges.

The physical moat and the human capital moat reinforce each other. These barriers do not appear on a balance sheet, but they are the reason Cameco’s assets command the strategic premium they do, and they are the standard against which junior developer promises should be measured.

The company with the deepest operational knowledge of western uranium supply and the most granular view into western utility contracting is the one holding 30% of its licensed capacity in reserve, waiting for the long-term contracting signal to fully arrive. That patience is the clearest available signal that the uranium bull has not yet reached the point at which the smart money feels compelled to rush.

A more boring bull market, maybe

The long-term uranium contract price has been moving steadily upward for three years without a significant reversal, grinding methodically in one direction rather than spiking on a single supply shock or sovereign buying program the way previous bulls did.

That grinding reflects something no previous uranium bull possessed: two major incumbent producers running explicit supply discipline simultaneously, no secondary supply available to buffer a demand surge, a geopolitical environment pushing western utilities toward a narrower pool of origin-appropriate suppliers, and a demand base being rebuilt on foundations more durable than a single policy announcement.

The structural conditions for a disorderly blow-off top, the pattern that ended every previous uranium bull, are less present in this cycle than in any prior one. Kazatomprom now understands that flooding the market destroys the value of a national asset it cannot replace. Cameco has demonstrated through a decade of curtailments and patient contracting that it will not produce into a weak market.

The secondary supply shock absorber that historically amplified both the upswing and the collapse is gone. And the geopolitical fracturing of the market means a Kazakh production surge is less likely to land in the western spot market than it would have in 2012, because the offtake architecture routing Kazakh material toward Chinese and Russian end users is now more contractually entrenched and more politically durable than it was during the last bear.

The residual tail risks are real. A nuclear accident remains the industry’s defining vulnerability, though it would now be in a world where climate security, energy security, and national security have become the explicit pillars of power sector planning in every major western economy.

Governments that reversed phaseout decisions on energy security grounds are less likely to reverse course again, and the generation of reactors now operating embody safety improvements that make a Fukushima-scale event substantially harder to replicate.

The more immediate uncertainty is timing. The uranium market ultimately depends on utilities bringing forward demand, and that timing is not controllable by producers. Conversion and enrichment contracting already reflect the tightened supply picture.

When uranium contracting fully catches up, the price signal will reach producers holding capacity in reserve for exactly that moment. Whether that resolves in an orderly repricing or a violent catch-up move depends on how quickly the last domino falls and how much new primary supply can be brought online in response.

What this cycle has that its predecessors lacked is a structural foundation underneath that uncertainty and that is what makes it worth understanding on its own terms.

Like this post to help balance supply with surging demand for Decouple Media content.

The standard explanation is that nuclear power is back. After a decade of retreating political support following Fukushima, governments across the western world have rediscovered that a 24-hour, carbon-free, energy-dense power source is not something you can replicate with wind turbines and battery storage. Reactor life extensions, phaseout reversals, a Chinese nuclear construction boom, and corporate power purchase agreements from data centre operators hungry for firm baseload have all landed within a compressed window. The demand story is real.

But demand alone does not explain why this bull has behaved so differently from its predecessors. Previous uranium cycles also had credible demand stories. The 2005-2011 bull had a nuclear renaissance narrative, a supply shock from the Cigar Lake mine flooding and China’s sovereign contracting program driving long-term prices. It still collapsed.

Understanding why this cycle may not follow the same script requires understanding something more fundamental: uranium is a commodity unlike any other, governed by market mechanics that have no real parallel in oil, gas, or industrial metals. The history of uranium investing is largely a history of analysts importing mental models from those markets and being destroyed by them.

Grant Isaac, President and COO of Cameco Corp and a former dean of the Edwards School of Business at the University of Saskatchewan, laid out that case in a recent conversation on Decouple. What follows draws on that interview as its primary analytical frame.

Why Uranium is an Unusual Commodity

The single most counterintuitive fact about the uranium market is that it has, in Grant Isaac’s framing, “basically zero fundamental in-year demand.” Every reactor currently operating will load its next fuel bundle from uranium that has already been procured. No utility anywhere on the planet is going into the market today to buy uranium it needs in the next 12 to 18 months. That material is already sitting in a warehouse, in a conversion facility, or moving through the enrichment and fabrication queue.

This inverts every intuition imported from oil markets. When oil demand rises, refiners buy more crude. When natural gas gets tight, utilities burn through spot supply and prices spike within weeks. The feedback loop between physical demand and price is immediate and visible. In uranium, that feedback loop is broken by design.

Utilities treat nuclear fuel as a long-lead procurement item. It is closer in spirit to steam generators or a reactor pressure vessel, ordered years in advance through carefully negotiated bilateral contracts, than buying natural gas. Global uranium demand currently runs around 175 million pounds per year. What passes for a spot market amounts to roughly 50 million pounds traded per year, of which utilities account for perhaps 10 million pounds of discretionary buying: outage adjustments, inventory top-ups, opportunistic purchases when price dips.

The real market is the bilateral term contract market, negotiated out of public view, and the price it produces can only be seen in the rear-view mirror rather than a windshield. It takes a week of negotiations to surface the spot price and a month of transaction volume to establish the term price. There is no real price discovery: no Bloomberg refresh, no live tick, no forward curve with the liquidity of an oil futures market. The uranium price is always, to some degree, a historical artifact.

This structure produces a distinctive and punishing cyclical pattern. Utilities do not bring forward demand to the market on a predictable annual schedule. They can go well below replacement contracting for years, drawing down existing inventory and long-term contract coverage, before returning en masse. Historically when they return, they all tend to arrive simultaneously, and the resulting demand surge hits a supply base that has had no signal to expand.

The uranium cycle runs 10 to 12 years on average, against something like potash’s 18 months, because the inventory buffer is deep and the procurement horizon long. A reactor running today has enough fuel in the core for 18 months and likely has one or two strategic reloads on site. European utilities have historically held roughly two years of forward inventory; Asian utilities typically hold three years or more.

A nuclear plant could theoretically run through a complete fuel cycle, reload from strategic inventory, and run another full cycle without a single uranium delivery arriving at the gate. No other commodity consumer operates with that kind of structural insulation, and it is precisely what enables buyer strikes lasting years and makes uranium demand, when it finally returns, arrive all at once.

Utilities do not contract for uranium in isolation either. They work backward through the fuel cycle: securing fabrication capacity first, then enrichment, then conversion, then uranium. You need to know where the uranium is going before you contract for it. This sequencing means uranium contracting always lags the broader nuclear procurement cycle. When conversion prices are at historic highs and enrichment contracting is strong, as both are right now, uranium demand is still building toward its own contracting surge. The uranium market is, in a structural sense, the last domino.

Share

A Primer on Uranium Production

Not all uranium is created equal, and the method by which it comes out of the ground shapes much of its cost structure, its flexibility as a supply source, and its geopolitical character. There are three primary production methods worth understanding before examining the current supply picture.

Open-pit mining is the simplest and historically the most throttleable: costs load heavily into variable rather than fixed, making it easier to idle when prices fall. Most of Africa’s uranium output has come from open-pit operations. Underground hard-rock mining carries enormous fixed infrastructure costs, which is precisely what makes Canada’s Athabasca Basin’s extraordinary ore grades necessary to justify the investment.

In situ leaching, or ISL, is what the late Bob Steane, Cameco’s longtime chief operating officer, called “plumbing, not mining.” No shaft is sunk, no ground is excavated. Injection wells push a lixiviant, a leaching solution, typically sulfuric acid or caustic soda through a bounded underground sandstone formation. The solution dissolves uranium from the host rock, gets pumped back to surface, and the uranium is precipitated out chemically. Capital requirements are a fraction of a conventional mine, the operation scales by drilling more wells and laying more pipe, and because you are working with permeable sandstone geology rather than hard basement rock, ISL can be economical at ore grades that would send a conventional miner packing.

Kazakhstan’s geology is almost perfectly suited to it: enormous bounded sandstone formations at manageable depths, with none of the freeze challenges or water management complexity that define Athabasca operations, and at a scale that makes every other ISL jurisdiction look like a pilot program. A large US ISR project produces around 200,000 pounds per year against global annual demand of roughly 175 million pounds. Scale is the entire economics of mining, and Kazakhstan has the denominator the US does not.

Then there is the Athabasca Basin. Picture it as a stone bowl: competent granite basement rock forming the bowl itself, fractured sandstone filling it. That sandstone holds enormous volumes of water that communicate across the entire formation through the fractures. The fracturing is also what concentrated the uranium in the first place: Over millions of years, oxidizing groundwater leached uranium from the overlying sandstone and carried it downward in solution. At the unconformity, where those oxidizing waters met reducing conditions in the basement rock, the uranium precipitated chemically and accumulated in extraordinary concentrations. However, the same geology that created the orebody makes extracting it so punishing.

McArthur River sits where a geological anomaly allows most mining to take place in competent basement rock adjacent to the ore. Cameco drives freeze curtains outward from the granite into the surrounding sandstone, creating barriers against water inflow, then uses blasthole stoping with remote-operated scoop trams handling the highest-grade material to manage radiation exposure.

Cigar Lake, just 55 kilometres away, presents a completely different problem: the ore sits at the top of a clay funnel at the unconformity and the geology makes working from above impossible. All operations are conducted below the ore body. Cameco bulk-freezes the entire ore zone from the surface, then bores upward into the frozen material using high-pressure water jets, collecting the resulting uranium slurry through steel pipes feeding into processing circuits below. In both cases without the freeze, the operation does not exist.

The ore grades are what make this extraordinarily complex mining engineering worthwhile. Cigar Lake averages around 15% uranium by mass, having peaked at 18% early in its mine life. McArthur River runs 7 to 8% now. The global average uranium ore grade is under 0.1%. Individual ore passes at Cigar Lake have been recorded at 70% uranium. That grade advantage is the economic justification for every dollar spent on frozen ground, remote operations, and decades of institutional learning about water management in fractured sandstone.

The concentration of production that results is striking. Ghawar, the largest conventional oilfield ever found, supplies around 6% of global oil. Cigar Lake alone supplies 14% of global uranium. McArthur River at full licensed capacity adds another 10 to 13%. Two mines in the same basin in northern Saskatchewan, both accessible only by winter road, account for roughly a quarter of all primary uranium production on earth.

That concentration also explains why the IAEA’s Red Book figure showing Australia with the world’s largest uranium resources is less reassuring than it appears: a resource is uranium believed present based on geological evidence, while a reserve is what remains after asking whether the ore can be extracted at today’s prices and sold at a margin. When that model is applied, the global supply picture narrows considerably. Large numbers in the Red Book are not the same as commercially-available pounds.

A history of uranium cycles

The uranium market has a pattern, and it has repeated with enough consistency that understanding it is the prerequisite for evaluating any claim that this time is different.

Every bull market in uranium history has ended the same way: either a demand destruction shock or a supply flood killed it, and in both cases the ensuing bear market was then sustained and deepened by a vast overhang of secondary supply that took decades to work through. It is the fact that the overhang is now gone that is the structural break. But to appreciate why it matters, you have to see how it functioned across 6 decades of cycles.

The originating myth is Eisenhower’s Atoms for Peace speech and Lewis Strauss’ claim of nuclear power “too cheap to meter.” This seeded an expectation not of hundreds of reactors but thousands.

On the strength of that expectation, uranium was explored for, discovered, and produced at scale well before the demand existed to absorb it. Around 650 reactors eventually came into operation globally, not the 2,000 or more that had been projected, and the surplus from that miscalculation would shadow the uranium market for the next 6 decades as “secondary supply” (defined more broadly as material from stockpiles, military programs, and reprocessing) competed with freshly mined uranium.

Three Mile Island in 1979 and Chernobyl in 1986 compounded a demand collapse that had already begun: reactor orders had peaked in 1974 and were in freefall with more than 120 US reactor orders ultimately cancelled. Public opposition hardened across western Europe, and utilities with contracted material they no longer needed sold into a market with nowhere for the pounds to go.

Then the Cold War ended and a new source of secondary supply entered through the megatons-to-megawatts program, which down-blended 500 metric tonnes of Russian highly enriched uranium into low-enriched uranium and fed it into western civilian power markets over 20 years.

The US Department of Energy sold its own UF6 inventory into the market during the same period. Between military stockpile liquidation and the original overproduction overhang, primary uranium mining was competing against its own past for three decades. Primary production has not matched annual uranium demand in any year for the past 30 years. The market ran on inventory.

The 2000s brought the first bull market that looked like it might escape this pattern. Natural gas prices were rising, George W. Bush was at Calvert Cliffs announcing a nuclear renaissance. Generation III+ reactor designs were moving from paper to licensing and even record breaking construction schedules in Japan’s extraordinary ABWR buildout. Uranium moved from around $10 per pound in 2003 toward a $136 per pound peak in 2007, but the spike was driven less by actual demand contracting than by supply shock anxiety.

In 2003, a water inflow at McArthur River reminded the market that mining has risks that liquidating inventory does not. In 2006, the Cigar Lake development project flooded before it had produced a single pound; it was supposed to come online by 2009, and after the flood some in the market began to wonder whether Cigar Lake was simply unmineable. That fear, not a fundamental shift in contracting, drove the price to its 2007 peak.

Then in the summer of 2010, something demand-driven happened. China arrived in the term market and contracted 152 million pounds of uranium with Cameco, Kazatomprom, and Orano: nearly a year’s worth of total global demand, with deliveries running from 2015 into the early 2020s. Traditional western utilities, watching the scale of sovereign Chinese buying, suddenly recalculated their own forward exposure and tried to go through the contracting door simultaneously. The price was heading toward another high when, in March 2011, a tsunami hit the Japanese coastline and disabled the Fukushima Daiichi plant.

Japan shut down all 50 of its operating reactors, removing roughly 10% of global uranium demand almost overnight. Japan had already contracted years ahead for uranium it now did not need, and that material began finding its way back into the spot market.

Kazatomprom, operating at low marginal cost through ISL and carrying the production volumes it had built up during the bull, kept producing regardless. With no contracting discipline and no floor under which it would reduce output, Kazakhstan jammed surplus pounds through the spot market continuously.

The price collapsed from around $80 per pound to a trough of $17.75, the level at which Cameco finally curtailed MacArthur River and Key Lake in 2018 after a series of earlier partial reductions, by which point Cameco had 70% of its production shut in.

The company bought cheap spot material to fulfil its contracted sales portfolio and limited losses on the spread, even as care-and-maintenance costs at the idled operations ran $7 to $9 million a month. The spot material it was purchasing was largely Kazakh in origin, the same overproduction that had broken the price in the first place.

Kazakhstan’s behavior during this period carries a lesson the market has since absorbed. By producing at maximum volume through a collapsing price environment, Kazatomprom succeeded in becoming the world’s largest producer of a commodity it had completely devalued. The dividend it owed to the Kazakh state shrank in proportion to the price it had helped destroy.

The parallel to a Gulf petro-state that pumps aggressively into a falling oil market and discovers it has liquidated a national asset at the bottom of the cycle is fitting. Saudi Arabia took several such cycles to internalize the value of spare capacity and price management. Kazakhstan absorbed one catastrophic bear market and drew the correct conclusion faster. Its strategy today is indistinguishable from Cameco’s: contract first, produce after, treat in-ground uranium as inventory with value rather than as a cost to be minimized by maximizing throughput.

What every cycle in this history shares is the secondary supply wedge functioning as both cushion and amplifier. On the way down, secondary supply floods the market and extends the bear beyond what primary economics alone would produce. On the way up, the existence of that potential secondary supply caps the price signal that would otherwise incentivize new primary investment. For 6 decades the wedge was always there. That is no longer the case.

The Cold War stockpiles are gone, the megatons-to-megawatts program concluded in 2013, and utility inventories, while still meaningful, are working stocks rather than the vast strategic overhangs of earlier eras. The market emerging from this bear is the first in the modern history of the industry that has to be balanced by primary production alone.

The market entering this bull is the first in the modern history of the industry that has to be balanced by primary production alone, from producers who have learned, through painful experience, exactly what happens when they do not exercise discipline over their own output.

Next week, the second part of this analysis examines what that structural shift actually means in practice: how the two largest uranium producers in the world are now running explicit supply restraint simultaneously, why the geopolitical fracturing of the global uranium market is creating two separate procurement realities rather than one, and why the demand picture building against this constrained supply base is different in kind from any previous nuclear renaissance story.

The pattern that ended every prior uranium bull is structurally less available in this cycle. Understanding why requires understanding what has changed on both sides of the ledger at once.

Like this post or we’ll shut down the comment section until sentiment improves.

X-Energy was listed on the Nasdaq under the ticker “XE” on April 24th, raising $1.02 billion with shares surging 30.9% on debut to give the company a valuation of $11.9 billion.

The pitch is Dow Chemical as anchor customer, Amazon as both lead equity investor and holder of power purchase commitments for more than 5 GWe, and Centrica as a UK utility partner, all anchored to an 80 MWe pebble-bed high-temperature gas-cooled reactor.

X-Energy is a 916-person development-stage company promising rapid construction of high reliability reactors fuelled by proprietary TRISO fuel which is roughly 10 times more expensive to fabricate than conventional light water reactor fuel. For a deep dive on that topic, see Decouple’s interview with Michael Seely below.

It has no construction experience, has never operated nuclear reactors, and is yet to produce commercial fuel. Yet it is priced as though the hardest engineering problems in one of nuclear’s least mature reactor classes are already solved.

The current AI-driven moment of nuclear euphoria creates the conditions where this is possible. In the absence of a sustained tempo of nuclear construction in the West, narratives trump empiric reality and reactor concepts that are genuinely interesting science projects get priced as commercial products well before the performance record justifies it.

The embedded assumption in X-Energy’s $11.9 billion valuation is that American startup dynamism can compress what has been for China, the world’s most capable nuclear industrial state, a 50-year institutional journey into a single first-of-a-kind construction project.

In sectors where design, capital, and IP are dominant, that assumption is often correct. China’s pebble-bed program, however, illustrates why even “advanced nuclear” is not one of those industries.

Share

The German Origins and Chinese Technology Transfer of the HTGR

The pebble-bed concept originated with Rudolf Schulten at the Jülich Research Centre in Germany in the 1950s and 1960s. Germany built and operated the AVR and THTR-300 before political and economic pressure killed the HTGR program in the aftermath of Chernobyl.

China then absorbed 30 years of German engineering knowledge through formal technology transfer. This included a design review by Siemens/Interatom of the Chinese prototype HTGR, the HTR-10 in 1994. They have subsequently spent the next 3 decades building on it.

After 5 years of construction the 10MWt prototype reactor achieved criticality in 2000. Construction of the 80MWe commercial demonstration HTR-PM began in 2012, 38 years after basic research started at Tsinghua University.

It would be a mistake to treat those 38 years as a universal law of pebble bed development. For most of that period, especially prior to the 2000s, the program ran at the pace of a modestly funded national laboratory inside a much less capable economy with considerably more pressing industrial priorities than an experimental reactor concept. The China that initiated pebble bed research in the 1970s bore little resemblance to the nuclear industrial state that completed the HTR-PM in the 2010s.

A more concentrated, well-capitalized effort could plausibly move through the design and testing sequence faster, but the historical precedents for that kind of speed, the US Navy reactor programme and the AEC-era national laboratories were state-mobilized at a scale and institutional depth that a private startup has yet to replicate.

The Technology Readiness Level and Capacity Factor problem

The pebble-bed high-temperature gas-cooled reactor is a precise example of the gap between scientific promise of “advanced nuclear” and the commercial maturity of conventional water cooled reactors. Approximately 650 commercial PWRs and BWRs have operated since the 1950s, accumulating 18,000 reactor-years of operational experience.

Against that baseline, exactly 5 pebble-bed HTGR cores have ever operated: 2 pilot-scale research reactors, one German and one Chinese and 3 commercial demonstration-scale cores. Those were Germany’s short lived THTR-300 at 120 MWe (1983-1989) and a pair of 80MWe HTR-PM modules at Shidaowan, which reached commercial operation only in 2023.

Commercial demonstration scale pebble-bed HTGRs have thus accumulated only 12 reactor-years of operation to date. X-Energy’s customers are being asked to assume that its reactor technology will automatically share the 90%+ capacity factors that the light water reactor fleet has obtained through 18,000 reactor years of learning and optimization.

Dow and Amazon need high availability and the Xe-100’s central marketing claim is that continuous online refuelling delivers exactly that: no scheduled outages, dispatchable baseload and therefore high capacity factors from day one.

The best way for a lay person to make sense of the pebble-bed online refuelling concept is a giant gum ball machine. The pebble-bed HTGR continuously recirculates hundreds of thousands of fuel spheres through the reactor core, approximately 2000 per day, through a burnup measurement station, and back into the top of the core. This process must function with exceptional reliability as a continuous industrial operation rather than a periodic maintenance event.

As a comparison, the only other commercial reactor type that refuels continuously on a daily basis is the CANDU, which shuffles approximately 15 fuel bundles per day through a well-understood mechanical sequence refined across a fleet of reactors over 50 years. CANDU online refuelling still ranks among the more demanding operational challenges Canadian operators face.

The HTR-PM experience suggests this is harder to sustain than the design predicts. These refuelling difficulties may contribute to the fact that the Chinese plant entered commercial service derated 20% below its design thermal rating and reached only around 20% capacity factor in its first 2 years, advancing to around 50% by 2025.

Critically, China’s engineers entered the HTR-PM’s commercial demonstration phase carrying over 20 years of hard operational data from the HTR-10 research reactor. Problems like fuel handling anomalies, pebble flow irregularity, graphite dust management, helium leaks that manifested at 10 MWt research scale informed the commercial system’s design before a single pebble moved through it.

X-Energy has no equivalent operational foundation. Its fuel handling system has been modelled and tested at sub-scale, and it proposes to move directly from those results to a commercial build at Dow’s Seadrift facility.

The OPEX-CAPEX trade off

The 9 year construction record of the HTR-PM carries a specific warning for the X-Energy investment thesis. The business case for a low-pressure advanced reactor with expensive TRISO fuel, depends on offsetting high operating costs through faster, cheaper construction.

A pressurized water reactor must keep its coolant liquid at around 155 atmospheres, demanding thick-walled pressure vessels and elaborate emergency cooling systems that dominate capital costs and slow construction.

Despite its far lower power density and therefore relatively larger core, a helium-cooled pebble-bed reactor operates at lower pressure with fuel designed to retain fission products passively. The nuclear island should therefore in theory be simpler and faster to build.

Here a construction environment comparison matters as much as the reactor design. China’s construction sector since the 2010s is amongst the most capable nuclear building environments that have ever existed. Chinese builders have been simultaneously erecting conventional PWRs in under 6 years at 2 to 3 times the Western pace, drawing on deep supply chains, and a trained nuclear construction workforce. In that environment, the HTR-PM still took 9 years to build and a further 2 years to commission before entering commercial operation.

X-Energy will build in the contemporary American nuclear construction environment. That environment produced the only 2 AP1000 units completed in America in the 21st century at Vogtle, which came in at roughly 3 times the original budget and 7 years late, under cost-of-service regulation that insulated the project from market consequences throughout.

There is no equivalent rate-base backstop for Dow Chemical. The labour scarcity, the supply chain atrophy, and the absence of a standing nuclear construction workforce are structural features of the American sector, not problems that startup capital resolves. China’s HTR-PM first-of-a-kind timeline, built inside the contemporary world’s strongest nuclear construction infrastructure, is therefore a best case for X-Energy rather than a like-for-like comparison.

The bold claim made by X-Energy CEO Clay Sell in the present tense that “We make it easy to build nuclear power plants” will certainly be put to the test. Extraordinary claims require extraordinary evidence and that evidence has yet to be produced.

The Limits of American Startup Dynamism

X-Energy’s optimism relies on the assumption that American entrepreneurial dynamism will trump Chinese state development of advanced reactor technology.

This dynamism clearly works where iteration cycles are short, failure is recoverable, and the feedback loop between experiment and result is measured in months: shale drilling, rocketry and software are the cardinal examples.

SpaceX can destroy many prototypes on a single launch pad, absorb the data, and fly again within months. However, even an “advanced” nuclear reactor takes years to build with each reactor requiring its own seismically qualified civil works equivalent of a launch pad. In addition, its components must operate without failure for years and breaking things at the commercial reactor stage is not an option.

The iteration cycles, the failure intolerance, and the manufacturing precision of nuclear requirements impose longer timelines and slower iteration. This is what China’s HTGR program illustrates and no amount of venture or retail capital changes that.

But surely a peppy startup can move faster than a state run program in China?

The Western image of China as a cumbersome mass manufacturer of cheap goods rather than a technology leader is desperately out of date.

The Australian Strategic Policy Institute’s Critical Technology Tracker found China leading in just 3 of the technologies it tracked during 2003 to 2007. By 2024 that figure was 57 of 64, with nuclear explicitly among them. The country X-Energy is being benchmarked against, implicitly or otherwise, is not the China of 2003.

This is due to aggressive industrial policy and state capacity organized within a hybrid political economy. America’s nuclear reactor technology development dominance with the PWR/BWR similarly leaned heavily on robust state involvement to nurture the technology through its early development.

What China has built in pebble-bed HTGR technology over the last 5 decades is the capacity to cycle continuously from materials research through fabrication to operational deployment and back, accumulating compounding institutional learning at each pass.

X-Energy proposes to move from blueprints to commercial reactors at Dow’s Seadrift plant in under a decade, and according to Amazon’s commitment, envisions 5GW of capacity across the US by 2039.

X-Energy is a genuinely interesting technology company working on a compelling reactor concept. However, the entire history of pebble-bed HTGR development argues against the idea of leap-frogging the pilot and demonstration reactor stage and proceeding directly to a commercial build.

China ran the HTR-10 for over 2 decades before turning on its commercial scale demonstration reactor and is only now upsizing from its 2 module configuration to a fully commercial 6-pack, the HTR-PM 600 in the hopes of improving the small reactor’s challenging economics.

X-Energy has no equivalent to the HTR-10 or the HTR-PM. The comparison that ultimately matters is not how long China's program took in calendar years, but what China brought to its commercial demonstration that X-Energy does not: 2 decades of dedicated research reactor operational data, the world's most capable nuclear construction sector, and cost-of-service regulation backstopping the learning curve.

$11.9 billion is an immodest price for a firm that, by its own timeline, proposes to do something more ambitious than what China attempted, with less preparation and in a more difficult construction environment.

The American and European reactor construction booms of the 1970s and 1980s have run their course. Western utilities, saturated with capacity after decades of rapid industrial build-out, have stopped ordering reactors. Chernobyl has done its political damage.

The French Messmer programme has delivered 54 reactors in roughly 15 years, but Paris is now operating a mature fleet, and not expanding it. In the United States all reactor orders placed after 1973 have been canceled. The word most commonly attached to nuclear construction, on both continents, is “pause.”

Japan is an exception. It is the world’s second largest economy dependent on imports for 90% of its energy needs. Driven by energy security concerns it has developed a national target of 50% nuclear electricity by 2030. Japanese utilities have continued building at scale as the West has stood down.

TEPCO, the Tokyo Electric Power Company, operates large multi-unit sites at Fukushima Daiichi, Fukushima Daini, and the world’s largest nuclear generating site, Kashiwazaki-Kariwa. It has brought a systematic industrial discipline to the task that its Western counterparts have largely abandoned.

At Kashiwazaki-Kariwa, units 6 and 7 come online. They are ABWRs, 1350 MWs each and the world’s first Generation III reactors. The first of a kind (FOAK) unit is built in 38 months of nuclear construction and costs roughly a third less than unit 5, a seventh-of-its-kind standardized BWR5 Mark II, built at the same site by the same construction crews, essentially simultaneously.

This stellar result sets the benchmark for the EPR designers at Framatome and the AP1000 team at Westinghouse. Both programmes publicly aim for 36-month construction schedules. As Krellenstein observes, this prompts a reasonable inference: if the Japanese can build a FOAK Gen III reactor in 38 months with 1990s digital tools, why couldn’t the West?

The ABWR appeared to prove that the obstacles plaguing nuclear construction in the 1970s and 1980s were not intrinsic to the technology. They were interpreted primarily as problems of document management, design coordination and supply chain integration, precisely the problems that the information technology revolution of the 1990s was supposed to have solved.

Share

A Controlled Experiment

When Olkiluoto 3 began construction in 2005 as the first EPR, the Western nuclear industry had the same computers, the same CAD software, the same building information modelling tools, and the same AutoCAD and Primavera and Navisworks that Japan had used to build Kashiwazaki Kariwa 6 and 7.

Commodity laptops were faster than anything available when TEPCO planned its first ABWR. Adobe Acrobat was on every engineer’s desktop. Radio frequency identification (RFID) inventory management became standard practice in manufacturing supply chains across the developed world.

However, results in the West differed markedly from the Japanese experience. Finland’s Olkiluoto 3 took 18 years from construction start to grid connection. The Vogtle AP1000 units in Georgia, the only AP1000s completed in the United States, ran roughly 7 years late and billions over budget, bankrupting Westinghouse in the process.

The EPR at Flamanville in France, begun in 2007, achieved grid connection only in 2024. These projects were assembled after a long pause, dependent on teams, supply chains, and regulators lacking recent experience in delivering nuclear megaprojects.

Digitalization was necessary for Japan’s impressive achievement, but it was only one variable in the stack. Japanese nuclear construction continuity into the 1990s conserved a workforce with recent build experience, project managers who had closed out large units, and a supply chain still qualified and synchronized to nuclear specifications.

Kashiwazaki Kariwa 6 and 7 were successive iterations of an ongoing construction program. Japan demonstrated pre-construction discipline, an integrated supply chain, the utility as developer model, and above all spent more than a decade on pre-construction design and constructability work.

The 1978 Tokyo Meeting

The ABWR originated in a TEPCO feasibility study commissioned in 1978, 13 years before construction began at Kashiwazaki-Kariwa. TEPCO brought together every major boiling water reactor developer in the world: General Electric, Hitachi, Toshiba, the Italian firm Ansaldo, and the Swedish firm ASEA, which had independently developed BWR technology without a GE licence, deploying it at Forsmark, Ringhals, and Oskarshamn.

Such cooperation was deliberately radical for an industry organized around vendor competition. TEPCO was paying its vendors to make their existing designs obsolete in order to secure the next one.

The premise underlying their assignment was expressed in one question: if you could redesign the boiling water reactor from scratch, drawing on everything the global BWR fleet had learned about construction and operation, what would you change?

That meeting produced the conceptual design that eventually became the ABWR. Its underlying philosophy was simple: build what the utility could actually construct, validate, operate, and understand, using proven components and methodologies available at the time, and eliminate complexity wherever it did not buy proportionate safety or performance.

This is quite different from the philosophy that produced the AP1000, which emerged primarily from US government-funded research into advanced passive safety concepts. The AP1000 is revolutionary in its passive safety architecture. The evolutionary ABWR made design decisions driven primarily by the needs of a utility aiming to build at scale.

The Design Philosophy

The ABWR containment building is a squat cylinder of reinforced concrete, shorter than the turbine building on the same site. Height is both a key driver of cost and an enemy of seismic resilience. Japan’s geology demanded a short, stiff structure.

The free volume of the ABWR containment is roughly 1/5th that of an equivalently sized PWR, 450,000 cubic feet, compared to 2.5 to 3 million cubic feet in an equivalent pressurized water reactor. Most of this reduction in containment volume is intrinsic to boiling water reactor design: with the elimination of steam generators, pressurizer, hot legs, or cold legs. However, the elimination of external recirculation pumps reduced containment size further relative to other BWRs.

Perhaps the most revealing design choice of the ABWR is the reactor internal pump, or RIP. To understand why, it is worth recalling what came before.

Boiling water reactors benefit hugely from recirculation flow. In a BWR, water in the core is both coolant and neutron moderator. Steam bubbles, which are roughly 100 times less dense per unit volume than liquid water, weaken moderation and reduce reactor power. Controlling the void fraction in the core (reducing steam bubbles) is therefore a primary mechanism of power control.

The way to do this is to drive recirculation flow through the core: pushing water through the fuel at high velocity sweeps bubbles away and increases moderator density. An extraordinary illustration of the importance of recirculation flow is the fact that its flow rate dwarfs the feed water flow rate, that is the water returning to the reactor pressure vessel from the turbine condenser, by a factor of 5-7.

Early BWRs accomplished this with large external recirculation loops: pipes carrying reactor water out through the vessel wall, through pumps, and back in at the bottom. GE’s BWR3 through BWR6 product lines replaced those loops with jet pumps: 2 external recirculation pumps driving high-velocity jets into a Venturi throat, with surrounding water entrained by the Bernoulli effect, multiplying the flow without multiplying the large-diameter pipe penetrations. Most operating BWRs in the United States today possess this configuration.

The ABWR went further. Drawing on technology pioneered by ASEA on the Swedish fleet at Forsmark, designers eliminated external recirculation entirely, replacing it with 10 RIPs mounted on the bottom skirt of the reactor pressure vessel. The RIP motors sit outside the vessel; the impellers are on the inside, driven through the lower skirt. There are no recirculation loop pipe penetrations. The only fluid penetrations below the midpoint of the nuclear fuel are the RIP penetrations themselves, which are far smaller in diameter than the large recirculation piping they replaced.

The resultant safety gain is real: recirculation line breaks contributed significantly to large break loss-of-coolant accident probability in earlier BWR designs. The ABWR eliminates that category of event entirely. But more importantly, as far as construction is concerned, is the simplification of the reactor building layout.

Removing the recirculation loops removes a substantial volume of large-diameter, nuclear-quality piping from the containment building, along with all the associated weld inspections, seal packages, and QA documentation. Every weld eliminated is a weld that cannot introduce a defect, cannot require a repair, and cannot become an inspection item for the regulator.

Operational consequences are equally significant. Each of the 10 RIPs is individually controlled by a variable frequency drive. By increasing pump speed and raising moderator density uniformly across the core, the reactor can move from 60% to 100% power in roughly 2 minutes without moving a control rod.

Krellenstein notes that this ramp rate is comparable to a combined-cycle gas turbine. Because the power change spreads evenly across the core, it avoids the local “hot spots” in neutron activity that happen when control rods are pushed in from specific locations.

The late-cycle “xenon pit” problem, which normally limits a reactor’s ability to ramp power up and down near the end of its fuel cycle, is less restrictive in the Advanced Boiling Water Reactor. Its internal recirculation pumps increase moderation in a way that preserves enough reactivity margin to keep adjusting power smoothly right up until the final coast-down period.

Thus, in a single piece of hardware, RIPs constitute a safety improvement, a construction simplification, a maintenance reduction, and an operational flexibility gain. That combination is the physical manifestation of ABWR’s pragmatic design philosophy.

The Original Large Modular Reactor

The ABWR is a large modular reactor. That framing matters because modularity is currently marketed as a defining advantage of small modular reactor designs, as though off-site prefabrication become available only below a certain nameplate capacity. The ABWR demonstrated otherwise at 1,350 megawatts.

Every unit ever built, including the Lungmen plants in Taiwan, was constructed on a bargeable site, with a large crawler moving directly from the barge slip to place the entire bottom section of the containment as a single piece onto the foundation. The fabrication shops producing those modules were inside the same “Zaibatsu” vertically integrated conglomerates as the design organizations, so the integration between what was designed and what could actually be shipped and placed was well understood.

The modularization schema was deliberately flexible, which turned out to matter more than the degree of modularization on any given unit. The first ABWRs were more stick-built, with prefabrication increasing on the third and fourth plants as construction teams learned what the approach could and could not do. When the hydraulic control units, initially modularized as a single prefabricated room, proved harder to execute that way than anticipated, the teams pulled back and stick-built them instead.

In a Western programme governed by fixed contract milestones and adversarial relationships between the utility, the architect-engineer, and the vendors, that kind of adjustment generates claims and schedule impacts. At Kashiwazaki-Kariwa it generated a revised work package, because TEPCO owned the design and bore the consequences of getting it wrong, which meant it also had the authority to fix it without litigation.

Four Hours Sharpening, Two Hours Cutting

The ABWR’s extraordinary built time was largely due to pre-construction planning. 13 years of design development, regulatory engagement, supply chain preparation, and digital pre-construction work occurred prior to nuclear concrete being poured.

By the time Kashiwazaki-Kariwa 6 broke ground, the design was finalized. Every cable tray, every pipe penetration, every weld sequence, every construction work package had been resolved in the digital model. Worker congestion through the construction sequence had been reduced. Concrete pours had been scheduled to the seasons to meet weather requirements. The entire warehouse inventory was managed by RFID. QA travellers and field work packages were transmitted to Palm Pilots on site rather than managed through paper binders.

From rock inspection to commercial operation, every subsequent ABWR built in Japan was completed within roughly 40 to 50 months. The 4 Japanese ABWRs operational by 2006 were built at a staggering rate of approximately 28 megawatts per month of construction time, or roughly 1 MW per day. For sake of comparison Vogtle Unit 3 was only 9 MW/month and the Flamanville EPR 8 MW/month.

The standard aspiration of nuclear construction improvement is a learning curve story: the FOAK is hardest, and each subsequent unit gets cheaper and faster as the builder learns. The ABWR bucked that trend. Its FOAK was a third cheaper than the seventh of a kind predecessor it replaced. The learning happened in the context of an active build program and 13 years of construction-informed design work before ground was broken, not in the field afterward.

In contrast the AP1000 and EPR were not merely unfinished designs when they entered the field, they were attempting to compress the Japanese pre-construction process into the construction schedule itself. They paid for every unresolved interference and every incomplete work package in real time, with tradespeople standing idle and interest during construction sky rocketing.

The failure to export the ABWR

In 2003, Finland’s utility Fortum selected the EPR over the ABWR for Olkiluoto 3. The EPR slightly underbid the ABWR, and from the perspective of a utility making a 2003 decision, the choice was not obviously wrong.

Kashiwazaki-Kariwa 6 and 7 were already operating as reference plants, but the industry had not yet absorbed what its benefits were. The prevailing and seemingly reasonable assumption was that the industry could now expect Gen III construction performance in the 36-to-38-month range. Olkiluoto 3 was supposed to be the proof point for the EPR just as Kashiwazaki-Kariwa had been for the ABWR.

The Olkiluoto 3 result is now part of a sorry historical record: 14 years late and roughly 3 times the original budget.

Would these outcomes have been partially avoided if The ABWR had been built in Finland or the United States? The ABWR had genuine advantages that the EPR and AP1000 lacked at first pour. The Lungmen units, 2 ABWRs built in Taiwan, that although never allowed to operate for political reasons, were built to ASME codes and represented a direct analogue to a Western regulatory environment.

The ABWR was the first reactor ever certified under the NRC part 52 framework. As mentioned above, the modularization scheme was more flexible than the AP1000’s rigid modular architecture, which contributed significantly to field execution problems at Vogtle.

Toshiba’s withdrawal from the South Texas Project in 2018 represented a financial failure, not a technical one: unpromising market conditions and an inability to find investors after the shale gas revolution collapsed merchant power economics were the spoilers. Hitachi’s suspension of the Wylfa Newydd ABWR project in Wales in 2019, after it had completed the UK Generic Design Assessment in 2017 and spent roughly £2 billion on development, was due to a deficiency in the financing structure, and not the reactor design or its licensing record.

Does the US need competition in large reactor technologies?

As mentioned in the introduction to this essay the U.S. Department of Energy has begun exploring alternatives to the AP1000. To the DOE, Westinghouse and its majority owner, the private equity firm Brookfield Asset Management, are moving too slowly. Utilities, for their part, want cost-overrun insurance that the current federal financing framework does not provide, and Westinghouse’s 2017 bankruptcy from Vogtle cost overruns is not a distant memory for anyone being asked to sign a new contract. Reporting by Alex Kaufman in March 2026 describes active engagement with GE Vernova Hitachi Nuclear Energy on potential deployment of the Advanced Boiling Water Reactor, alongside separate outreach to South Korean counterparts regarding the APR-1400.

The case for competition has precedent within the US nuclear industry itself. In the 1990s and 2000s, steam generator replacement outages across the operating fleet initially required roughly 200 days. Over successive projects, that window was compressed to approximately less than 30 days.

The improvement came from repetition across a series of similar projects combined with direct competition between Bechtel and Steam Generator Technologies (SGT). Utilities could observe divergent performance in real time. Schedules could no longer be defended as fixed physical constraints. Each iteration forced contractors to explain delays in operational terms rather than attributing them to inherent complexity.

A similar dynamic is visible in current reactor construction programmes abroad. China maintains parallel large reactor supply chains, building Chinese AP1000 units alongside the Hualong One. This structure keeps cost and schedule performance legible across competing designs and organizations.

The technical basis for introducing competition in the United States already exists. The ABWR holds a completed design certification in the United States, with multiple reference units constructed and operated. The remaining constraint is institutional rather than technological.

Does GE Vernova have the capability to build both large and small modular reactors?

The most important constraint on an ABWR revival is organisational capacity. GE Vernova through GE Hitachi Nuclear Energy, which holds the ABWR certification, operates with roughly 1,400 to 1,500 employees globally and is already fully committed to first of a kind BWRX 300 deployments in Tennessee and Ontario.

Those programmes require sustained focus across licensing, supply chain formation, and site execution. A large reactor programme would introduce a parallel effort with distinct engineering, procurement, and regulatory demands.

This reflects a structural shift. The organization that developed the ABWR and built the BWR5 and BWR6 fleet operated at larger scale within an industry that was building continuously. Today’s entity is smaller, more focused, and aligned around small modular reactor deployment, with capital and strategy directed toward the BWRX 300 and a reduced physical footprint following the sale of Vallecitos, GE’s historic BWR development site in California.

Alex Kaufman reports that the company has limited interest in reactivating the ABWR. An organisation of this size is unlikely to be able to sustain two separate reactor programmes simultaneously. The case for competition in reactor procurement remains, but it depends on whether any developer has the scale and execution capacity to deliver it.

Focusing on the wrong problems

The Western nuclear debate is hyperfixated on novel reactor designs as the solution to its decades-long struggle to build nuclear on budget and on schedule. The hope seems to be that a technological breakthrough or a novel concept will create a demonstrably superior reactor that will reverse decline and restore competitiveness with China.

Modularity, passive safety, novel coolants, TRISO fuel: these grab the headlines and drive funding cycles. Reactor design is no doubt a part of the equation. Modularity done well reduces field labour. Passive safety systems can eliminate backup diesel generators, reduce concrete and steel use and simplify cabling.

The ABWR however, illustrates that in nuclear the most consequential design gains often come from seemingly mundane construction and operations informed improvements rather than novelty. Nuclear technology iterates slowly and mature light and heavy water designs have taken 40+ years to arrive.

History however is clear that design alone, however well-conceived, is a relatively small portion of the ingredients that determine whether a reactor programme succeeds. Light water reactors despite significant design differences between PWRs and BWRs for instance have all converged on similar ranges of capacity factors, economic performance and construction schedules. There has not been a clear winner.

As the ABWR experience illustrates, what seems to really matter to successful deployment is design completion prior to construction and delivery by a competent project development organization, operating inside an industrial ecosystem that is active and staffed with experienced people at every level from project managers to tradespeople.

The West is currently disadvantaged after decades of relative inactivity within a broader shift in political economy towards deindustrialization and financialization. Supply chains have atrophied and experienced professionals are mostly retired.

As a result the Western nuclear renaissance, when it comes, will likely be a crawl before it learns to run again. Early projects will disappoint when measured against Japan’s record from the 1990s or China’s contemporary construction timelines. The central challenge of revival will involve sustaining political and financial commitment in spite of those disappointments while maintaining a laser focus on the lessons the ABWR experience has taught us.

Listen to the full conversation with James Krellenstein on the Decouple podcast.

Ten RITM-200 reactors have been manufactured since 2012 for five Project 22220 icebreakers, with eight already operating on the Northern Sea Route aboard the icebreakers Arktika, Sibir, Ural, and Yakutia. The RITM-200S is the FNPP optimized variant

As previously discussed on Decouple, rather than emerging from a clean-sheet SMR program the RITM descends in an unbroken line from the first generation of Russian nuclear submarines through three further generations of icebreakers accumulating over 400 reactor years of operation.

The mine these reactors will serve is not a marginal resource play. The Peschanka field within the Baimskaya licence area contains Joint Ore Reserves Committee (JORC) standard resources of 9.9 million tonnes of copper and 16.6 million ounces of gold, with annual ore processing capacity projected at 70 million tonnes. There is no grid, gas pipeline, or hydroelectric resource within reach, and diesel at this scale and remoteness is not a serious economic option.

Why Not Gas Turbines?

The choice of nuclear over gas turbines was not purely a matter of Arctic physics. Russia is no stranger to building gas infrastructure north of sixty; however, its large-capacity gas turbine industrial base has never been genuinely domestic.

High-capacity units above 100 MW were sourced overwhelmingly from Siemens, GE, and Alstom through licensed technology, joint ventures, and direct imports. The vulnerability of that arrangement became visible well before 2022. Siemens halted deliveries to Russian state-controlled entities in 2017 after four of its turbines were illegally diverted to Crimea in breach of EU sanctions. Then, after February 2022, GE stopped all servicing of its Russian-installed base under expanded US sanctions prohibiting engineering services.

Russia’s first genuinely domestic high-capacity gas turbine, Rostec’s GTD-110M, reached its inaugural commercial installation only in October 2024; serial production capacity of four units per year is not expected until 2028. At the scale required by Baimskaya, no sanctions-proof gas turbine solution existed or was imminent when the power contracts were drawn up.

Nuclear offered complete vertical integration within the Russian state system, spanning reactor design, fuel fabrication, hull construction, and the refuelling logistics chain at Atomflot, with no real Western sanctions exposure. The higher upfront capital cost was the price of autarky, and given the trajectory of Western sanctions policy, it was the rational price to pay.

The FNPP hulls are Chinese, built by Wison Heavy Industries at its Nantong yard, selected through competitive tenders on cost and schedule grounds over Russian and South Korean alternatives. Domestic yards run simultaneously at capacity on the Project 22220 icebreaker program.

Unlike Wison’s Zhoushan entity, sanctioned by the US Treasury for its work on Novatek’s Arctic LNG 2 project, the nuclear hull contract was placed with Wison’s Nantong facility, a legally and operationally distinct yard within the same corporate family. The Nantong facility’s supply chain, financing, and labour pool sit outside the transactional surface which Western sanctions were designed to reach. Thus no dollar-clearing bank, Western component supplier, or counterparty with secondary sanctions exposure are required.

Western Maritime Nuclear Myopia

Rather than carefully studying the Russians, the undisputed leaders in maritime SMRs, Western commentators tend to track NuScale’s regulatory milestones, Core Power’s fundraising announcements, or the latest molten chloride fast reactor rendering.

NuScale and Canadian firm Prodigy Clean Energy have proposed housing up to 12 NuScale Power Modules on a single marine facility, a concept that scales to 924 MWe on paper. Yet as former Decouple guest Aleksey Resvoi has pointed out, this proposal must contend with NuScale’s 20-meter tall “sky scraper” integral power module and containment vessel, which presents obvious stability problems aboard any hull experiencing real sea conditions.

An analogy which illustrates the difference in integral steam generator design philosophy between NuScale and the RITM is the maintenance gap between the American M1 Abrams and the Russian T-72. The Abrams is a genuine engineering achievement but runs on a 1,500-horsepower gas turbine which cannot be meaningfully repaired outside a depot, and whose filters clog in mud.

The T-72 runs on a diesel engine that a regimental workshop can overhaul. Soviet designers drew the line between crew-level and specialist maintenance differently, and drew it much further forward.

NuScale’s helical coil steam generators are thermodynamically clever, achieving compact geometry and high heat transfer surface area inside the integral vessel. They are, however, challenging to access and maintain.

The RITM uses replaceable steam generator cassettes with an explicitly designed 20-year service life, shorter than the reactor pressure vessel’s 60-year rating by intent. This accepts a modest thermodynamic penalty in exchange for cassettes that can be more easily extracted and replaced during scheduled maintenance. Major overhauls are conducted at Atomflot, Rosatom’s purpose-built nuclear fleet-servicing base in Murmansk, the only non-naval facility in the world with the infrastructure to handle operating maritime reactors.

Core Power has gone further into novelty territory here, partnering with TerraPower and HD Hyundai to pursue TerraPower’s Molten Chloride Fast Reactor (MCFR) for marine application. The MCFR proposes to use liquid chloride salt as both fuel and coolant, to operate at fast neutron spectrum, and to run at higher temperatures than conventional reactors. It has progressed from a non-nuclear integrated-effects test, running pumped-salt operations in a laboratory in Everett, Washington, towards a non-power critical experiment at Idaho National Laboratory targeted for approximately 2030.

Molten salt chemistries are corrosive, require exotic materials, and have never been operated continuously at commercial scale in any environment, let alone one subject to rolling, pitching, and wave slamming.

Pragmatism Wins the Day

The engineers who built the RITM understood that every design decision had to survive contact with the Arctic. They were not optimizing for thermodynamic elegance, waste minimization, or fuel cycle closure.

Russia kept iterating on light water because light water is proven. They now have 400 battle tested reactor-years of maritime operating history having harnessed the same design bureaus, test loops, materials laboratories, and institutional memory within a state-directed vertically integrated industrial system.

The West, while nostalgically clinging to narratives of nuclear energy dominance, keeps betting that start up culture and conceptual novelty will leapfrog its competitors’ steady investment, continuous deployment and iteration of proven technologies.

The RITM embodies everything Western policymakers say they want from an SMR: modularity, serial production, flexible deployment across marine, barge, and land-based applications, and a demonstrated fuel cycle.

With eight reactors already operating in Arctic conditions and 8 more under construction or fitting out, Baimskaya is the proof-of-concept that makes Rosatom’s FNPP export pitch credible in a way unmatched by any current Western maritime nuclear proposal.

The Floating Nuclear Power Plant Revolution may not be televised, but it will be Russian.

Imagine a technology that could take the most feared byproduct of nuclear power and transform it into fuel: burning the long-lived actinides that make spent fuel a supposed million-year liability down to fission products that decay to background radiation within a few centuries.

All of this while extracting enough energy from the 95,000 metric tons of nuclear waste sitting in pools and dry casks across the United States to power the entire country for 150 years.

That technology has been demonstrated. At Idaho National Laboratory, the Experimental Breeder Reactor II (EBR-2) ran for 30 years on metallic fuel cycled through an attached electrochemical reprocessing facility, closing the loop in exactly the way the vision describes: spent fuel in, fresh fuel out, waste reduced to a centuries-scale rather than geological-scale problem. The physics and engineering has been proven at pilot research scale. It has however failed to scale.

What did scale commercially looks considerably different. La Hague, the world’s largest reprocessing facility, has operated for the better part of a century. France built it not out of a romantic attachment to the closed fuel cycle but out a perceived energy security necessity: Almost no domestic fossil fuels, and, in the postwar decades, uranium supply chains that looked dangerously thin.

French reprocessing works. It has extended the country’s uranium utilization, deferred the need to mine fresh uranium by putting depleted enrichment tails and recovered plutonium back to work as MOX fuel, and given Paris a degree of fuel cycle independence that looks increasingly valuable as the theme of energy security once more rises to prominence with the Iran war and the closure of the Strait of Hormuz.

What French reprocessing does not do is meaningfully reduce the volume of material destined for deep geological disposal. But the La Hague program is not EBR-2. It is a pragmatic industrial process operating within the constraints of thermal reactor physics, and those constraints are severe. The gap between what France actually achieves and what the closed cycle promises is the central story of nuclear reprocessing, and it begins with understanding what is actually sitting in those spent fuel pools.

Subscribe now

What Spent Fuel Actually Is

When uranium fuel completes its working life in a reactor, it leaves behind a material of remarkable complexity. A fresh fuel assembly loaded into a pressurized water reactor contains uranium enriched to roughly 5% U-235, the fissile isotope that sustains the chain reaction, with the remaining 95% being U-238, which does not fission under thermal neutron bombardment but plays its own important role. Over the course of 18-24 months in the reactor core, several things happen simultaneously.

The uranium-235 is progressively consumed, splitting into fission products: a zoo of mid-weight atoms, many of them intensely radioactive, which accumulate in the fuel and increasingly poison the neutron economy in the reactor. Separately, some of the uranium-238 absorbs neutrons and transmutes into heavier elements. The most significant of these is plutonium-239, which is fissile and begins contributing meaningfully to the reactor’s power output. By the time a fuel assembly is discharged, roughly half of the energy being generated comes from this in-situ produced plutonium rather than from the original uranium-235.

What emerges from the reactor is therefore not simply depleted uranium. It is approximately 95% uranium, mostly uranium-238 with perhaps 1% uranium-235 remaining, around 1% plutonium spread across several isotopes of varying usefulness, and 3 to 4% fission products.

The fission products are what make spent fuel so radiologically hostile: short-lived but intensely radioactive isotopes generating substantial decay heat and penetrating gamma radiation. The barrier to reloading the spent fuel is primarily that the fission products have made the neutronic environment unworkable and the physical handling of the fuel intolerable. Reprocessing is, at its core, the project of separating the still-useful heavy metals from this contaminating matrix.

Share

The Manhattan Project’s Civil Legacy

The motivation for developing that separation capability did not originate in civilian power generation. Plutonium-239’s properties as a weapons material, chiefly its relatively modest critical mass compared to highly enriched uranium and its producibility from abundant uranium-238, made its extraction a military priority from the earliest days of the American atomic program.

The Hanford site in Washington State was separating plutonium for the Fat Man bomb before a single civilian reactor had generated a watt of commercial power. PUREX, the plutonium-uranium redox extraction process that remains the dominant reprocessing technology today, was a product of that program.

The civilian rationale came later, and it was genuinely compelling given what was known at the time. Postwar estimates of global uranium reserves suggested severe scarcity. If nuclear power was to provide a substantial fraction of the world’s energy, a once-through fuel cycle would exhaust available uranium within decades.

Reprocessing and breeding, in which fast neutron reactors would produce more fissile material than they consumed, appeared not merely attractive but necessary. Scientists at the Chicago Metallurgical Laboratory, working through the physics with the tools available to them, were not wrong to conclude that closed fuel cycles were the only path to long-term nuclear viability.

What they could not know was that uranium would prove far more abundant than early surveys suggested. As exploration intensified, reserves expanded dramatically, and the economics of fresh fuel remained stubbornly favorable relative to the cost of recycling.

When Jimmy Carter banned commercial reprocessing in the United States in 1977, framing it as a nonproliferation measure, the ban was already pointing at a technology that market forces had largely sidelined.

The commercial record made this plain. West Valley in New York, the only U.S. reprocessing plant that ever operated, ran from 1966 to 1972 before shutting down; the estimated cost of upgrades needed to meet newer regulatory requirements rose above $600 million, making restart uneconomic.

Barnwell in South Carolina was partially constructed but never operated: the 1977 policy reversal interrupted construction, and a subsequent GAO review found little commercial interest in completing it given a weak nuclear outlook, unresolved federal policy, and high costs.

The GE Morris plant in Illinois never operated as a reprocessing facility at all; cold testing revealed the technology was more complex than anticipated, the plant would have required extensive modification, and it became a spent-fuel storage site instead. When Ronald Reagan reversed Carter's ban in 1981, the commercial response was revealing: nothing happened. No reprocessing industry emerged. The economics had already delivered the verdict that a rowdy policy debate had obscured.

Inside La Hague

France is the exception that proves the rule, and La Hague is where that exception takes physical form. The largest reprocessing facility in the world, handling around 1700 metric tons of spent fuel per year (equivalent to roughly 17-20 full core loads) at peak operation, La Hague has been running in various forms since the late 1950s. Understanding what it actually does, step by step, is the only way to understand what commercial reprocessing can and cannot accomplish.

Spent fuel arrives in massive shielded transport casks, each containing perhaps a dozen fuel assemblies and weighing enough to require specialized rail or road transport. The assemblies must sit in cooling pools for months before processing begins, allowing the most intensely radioactive short-lived fission products to decay and reducing the thermal load to manageable levels. This waiting period involves a tradeoff that will become important later: the longer the fuel cools, the more certain isotopes decay into daughter products that complicate downstream handling.

When processing begins, the fuel assemblies are fed into a guillotine chopper: a hydraulically powered blade that slices the entire assembly, zircaloy cladding, ceramic fuel pellets and all, into segments roughly three centimeters long. This is the moment when cladding that has maintained a hermetic seal through 4.5 years of neutron bombardment releases in a single instant the fission gases that have been accumulating inside under pressure. Krypton, xenon, iodine and other volatile species must be captured and filtered rather than vented to atmosphere, and they constitute the first gaseous waste stream the process generates.

The chopped fuel segments then drop into boiling nitric acid. The acid dissolves the uranium dioxide ceramic and releases the heavy metals into solution while leaving the zircaloy cladding hulls behind as a solid residue. Those hulls, too contaminated by neutron activation and fission product migration to recycle economically, are compacted and stored as an intermediate-level waste stream.

What remains after the acid dissolution is a solution containing uranium, plutonium, fission products, and minor actinides all dissolved together. This solution is then contacted with tributyl phosphate dissolved in a kerosene like hydrocarbon solvent. Here is where the chemistry gets elegant: uranium and plutonium, unlike the fission products, preferentially migrate into the organic phase. By manipulating the oxidation states of uranium and plutonium relative to each other, exploiting the fact that they behave differently under different redox conditions, the process separates them into distinct streams with around 99.5 percent recovery efficiency. The fission products, stripped of the heavy metals they were mixed with, remain in the aqueous phase with almost no cross contamination.

Those fission products are then concentrated, calcined, and incorporated into borosilicate glass, poured into steel cylinders and stored at La Hague. If the fuel came from a foreign utility, France is contractually and legally obligated to return these cylinders to the country of origin, which has created its own geopolitical complications over the years with Japan and Germany. The uranium stream and plutonium stream depart the process separately, each carrying their own challenges.

What the Process Actually Reduces

It is worth pausing on a claim the reprocessing narrative tends to treat as settled: that PUREX substantially reduces the volume of waste requiring deep geological disposal.

The standard figure, repeated by the World Nuclear Association and the IAEA alike, is an 80 to 85 percent reduction in high-level waste volume compared to a once-through cycle. That number is technically defensible in one narrow sense. It compares the volume of vitrified fission product glass canisters against the volume of intact spent fuel assemblies, and since uranium makes up roughly 94 percent of spent fuel by mass, removing it does dramatically shrink the pile of material formally classified as high-level waste. But the comparison omits something important.

In a once-through fuel cycle, the depleted uranium tails from enrichment are a low-level waste problem at most. They are mildly radioactive, carry no fission products, and do not require geological disposal.

When France takes that material, mixes it with separated plutonium to fabricate it into MOX fuel, and irradiates it in a reactor, the depleted uranium that would never have required a deep repository has been converted into spent MOX fuel that under current conventions does.

In addition spent MOX fuel is several times more radioactive than equivalent spent LEU fuel, and its decay heat declines more slowly, meaning it occupies more effective repository space per assembly than the fuel it replaced.

Reprocessing generates multiple additional waste streams that intact direct disposal does not: compacted zircaloy hulls and hardware from fuel disassembly, low- and intermediate-level liquid wastes from the PUREX chemistry, contaminated resins and solvents, and solidified residues from effluent treatment. Each of these streams requires its own handling, conditioning, and disposal pathway.

The total volume of material requiring regulated disposal across all these categories exceeds what would have resulted from simply burying the original spent fuel assemblies whole. Reprocessing does not reduce the waste problem so much as it disaggregates and redistributes it across a more complex and costly management chain.

Standard PUREX also leaves the minor actinides, americium, curium, and neptunium, in the fission product waste stream rather than recovering them. These are the isotopes with very long half lives responsible for most of the radioactivity in the hundred-thousand-year timeframe that regulators believe make deep geological repositories a civilizational-scale engineering necessity.

What reprocessing in a thermal reactor cycle does avoid is one fresh mining cycle and one batch of enrichment tails: a real but narrow benefit, achieved at significantly greater expense and effort.

The Isotopic Trap

The plutonium stream that emerges from PUREX is not weapons-grade material, and understanding why illuminates one of the central constraints on the entire reprocessing enterprise.

Plutonium-239, the isotope produced when uranium-238 absorbs a single neutron, is fissile and desirable both for weapons and for fuel. But uranium-238 does not stop absorbing neutrons after producing plutonium-239. Successive captures produce plutonium-240, which is not thermally fissile and constitutes a neutronic burden; plutonium-241, which is fissile; and plutonium-242, which is not. The longer fuel remains in a thermal reactor, accumulating burn-up, the more the plutonium inventory shifts toward these higher isotopes.

A reactor optimized for weapons-grade plutonium production would discharge fuel after only a few weeks, with burn-up measured in single-digit gigawatt-days per tonne. A commercial power reactor runs its fuel to fifty or sixty gigawatt-days per tonne, producing plutonium that is substantially degraded from a fissile quality standpoint.

This isotopic degradation compounds with each reprocessing cycle. In a thermal reactor, plutonium-239 and plutonium-241 are consumed preferentially during irradiation while plutonium-240 and plutonium-242 accumulate.

After one pass through a MOX fabrication and irradiation cycle, the recovered plutonium contains a significantly higher fraction of non-fissile even numbered non-fissile isotopes. After a second pass, the material is approaching the point of limited utility in a thermal neutron spectrum. The twice-through-then-out cycle that France actually operates is not a policy choice made for lack of ambition; it reflects the physics of what thermal reactors do to plutonium.

The uranium stream carries its own complications. Reprocessed uranium (RepU) is not natural uranium. It contains uranium-236, a neutron absorber that reduces reactivity and uranium-232 which relatively quickly decays through a chain that produces thallium-208, an energetic gamma emitter that makes the material progressively more difficult to handle as it ages. To put it coarsely, instead of aging into a fine wine, reprocessed uranium deteriorates into mouldy grapes. Fabricating it into fresh fuel requires higher enrichment levels and handling radioactive feedstock on production lines designed for essentially inert natural uranium powder, demanding remote or shielded operations where direct human contact was previously routine.

At La Hague, the recovered uranium stockpile has grown for decades. France stores it in the hope of eventual use but has not found an economically or practically compelling route to deploying it at scale. It is the program’s largest stranded asset.

MOX: What the Plutonium Actually Becomes

The separated plutonium does have a destination. Mixed oxide fuel, combining recovered plutonium with depleted uranium tails from the enrichment process, is loaded into 15-20 of France’s fifty-four operating reactors. This is the practical expression of the entire PUREX enterprise, and it functions but with constraints that reveal the limits of the technology in a thermal reactor context.

Fresh LEU fuel contains roughly five percent uranium-235 as its fissile component, with uranium-238 making up the remainder. MOX fuel substitutes plutonium for that fissile loading, with the fissile plutonium fraction typically running between 4 and 8% depending on the isotopic quality of the recovered material and the desired burnup target. The depleted uranium carrier, with its negligible uranium-235 content, is essentially inert from a fission standpoint. From an energy density perspective, the two fuels are broadly comparable in a reactor core

.

The neutronic differences are real, however. Plutonium fission produces a shorter delayed neutron lifetime than uranium-235 fission. Delayed neutrons, the tiny fraction of neutrons emitted seconds after fission rather than instantaneously, are what make thermal reactors controllable on human timescales. A reactor core with a higher plutonium fraction responds more rapidly to reactivity perturbations, tightening the margins that operators and control systems manage.

France limits MOX loading to around 30% of any given core not because higher fractions are physically impossible, but because they would require operators trained and equipped for a reactor that behaves differently from every simulator they have used.

The AP1000 and EPR were designed with full MOX capability in mind, incorporating the additional control authority that a 100 percent MOX core demands, but that capability has not been commercially exercised.

A CANDU solution to the RepU problem? Natural Uranium Equivalent (NUE)

The accumulating stockpile of reprocessed uranium (RepU) at La Hague poses a difficult challenge. CANDU reactors, which run on natural uranium and use heavy water as both moderator and coolant, operate with such a thermally efficient neutron economy that they can sustain criticality on fuel enriched well below the threshold required for light water reactors. RepU, with its residual uranium-235 content of around one percent, sits above the natural uranium threshold and looks, at first glance, like a natural feedstock for a heavy water reactor. The advanced fuel CANDU reactor concept, pursued through a joint venture between Candu Energy Inc. and China National Nuclear Corporation attracted enough political weight to bring the Chinese Premier Li Keqiang and Justin Trudeau to the same signing table.

The concept has genuine logic. Canada possesses the reactor technology capable of using the material. China, which is expanding its commercial reprocessing capability will soon possess RepU in quantities that would otherwise sit indefinitely in storage. This RepU could be fashioned into Natural Uranium Equivalent fuel (NUE) by downblending it slightly with depleted uranium from enrichment tails to be used in CANDU reactors. Both parties saw the potential benefits. What the demonstration program revealed was how much difficulty lies between an appealing concept and a functioning fuel fabrication process.

The small-scale fabrication of the 24 NUE bundles manufactured for the demonstration irradiation was more difficult than foreseen. Specifically selected batches of depleted uranium were needed to match the batches of recycled uranium to achieve an equivalent weight percent uranium-235 to fabricate the pellets.

There were problems with dry blending the depleted uranium and recycled uranium for sintering the pellets, because the grain sizes of the uranium dioxide powder had very large variations. To overcome this issue, the material had to be dissolved in acid and put through a conversion process back to uranium dioxide powder, essentially reintroducing a wet chemistry step into a fuel fabrication process whose simplicity was part of the CANDU value proposition. The challenges with large-scale production were not resolved. NUE has not been used further in the Qinshan reactors.

The reasons reach beyond fabrication difficulty. A CANDU fueling machine loads individual bundles into pressure tubes that run horizontally through the reactor, with fresh and spent bundles moving through each channel during power operation.

A core loaded with RepU bundles of variable enrichment introduces neutronic asymmetries that the standard operating model was not designed to manage. The uranium-232 decay chain imposes a time pressure on using the material before it becomes too radioactive for conventional handling. Lastly the reprocessed uranium’s isotopic composition, variable across different source batches and different cooling histories, resists the kind of precise characterization that stable reactor operation demands.

Each obstacle individually might be surmountable; collectively, they have proven sufficient to stall the program.

The Fast Reactor Promise and Pyroprocessing

Everything described so far takes place in the thermal reactor world, where neutrons are moderated to low energies and the isotopic limitations of recycled plutonium become progressively more binding. The genuine closure of the nuclear fuel cycle, the version where ninety-five thousand metric tons of American spent fuel might theoretically power the country for a century and a half, requires a different neutron spectrum entirely.

Fast reactors, in which unmoderated neutrons sustain the chain reaction, can fission isotopes that thermal reactors cannot. Plutonium-240, the accumulating burden of every thermal reprocessing cycle, fissions readily under fast neutron bombardment. So do the minor actinides: americium, curium, neptunium, that constitute the long-lived hazard in spent fuel.

A fast reactor with a closed fuel cycle does not merely extend uranium utilization; it progressively burns down the transuranic inventory that makes geological disposal a deep-time engineering problem. The fission products that remain are genuinely short-lived on geological timescales, decaying to background levels within a few centuries rather than hundreds of thousands of years.

The reprocessing technology best suited to this vision is pyroprocessing rather than PUREX. Instead of dissolving spent fuel in nitric acid and manipulating liquid-liquid extraction chemistry, pyroprocessing dissolves metallic fuel in a molten chloride salt and applies an electrical potential across electrodes.

Heavy metals migrate electrochemically, leaving fission products behind. The process does not separate plutonium from uranium or other actinides for that matter. They all migrate together, which is simultaneously a proliferation advantage and an operational feature for fast reactor fuel cycles that want to keep them mixed. EBR-2 at Idaho National Laboratory ran for decades on metallic fuel with an attached pyroprocessing facility, demonstrating the integrated concept at a small research scale.

The gap between that demonstration and commercial deployment encompasses the entire history of fast reactor development. Despite heroic efforts by the USA, Japan, France, India, Russia and China, no fast reactor has achieved the reliability and economics of the mature light water reactor fleet. In fact the only fast reactors currently operating at all are two units in Russia, one in China and one in India, the PFBR, which achieved its 1st criticality on April 6th of this year after more than 20 years of construction.

The fuel required for pyroprocessing, metallic uranium-plutonium-zirconium alloy, is used in no commercial power plant anywhere in the world including those Russian, Chinese and Indian fast reactors all of which use MOX.

Pyroprocessing has been demonstrated in batches measured in kilograms, not the hundreds of tonnes per year that a meaningful contribution to spent fuel disposition would require. The economic structure of building new pyroprocessing capacity is significantly impacted by capital cost recovery. If built the early decades of operation will impose a heavy fixed-cost burden regardless of throughput. La Hague can offer relatively competitive reprocessing because its capital costs are long since written down; a new pyroprocessing facility would need to recover its full construction cost against a fuel market priced on the marginal economics of existing enrichment capacity. Oklo’s peak valuation of $21 billion reflects the market’s appetite for the narrative more than its assessment of the near-term industrial reality.

The Permanent Condition

America’s 95,000 metric tons of spent fuel await disposal. The physics and processes that make them potentially valuable is proven and has not changed. Uranium-238, transmuted to plutonium and cycled through fast reactors with pyroprocessing, could in principle extend the energy yield from existing fuel stocks by factors that dwarf what PUREX and MOX achieve in practice.

What the history of reprocessing demonstrates however, is that the distance between physical principle and economic reality is vast. As with many compelling solutions to vexatious problems the pilot program exists. Scaling and making a process commercially viable remain the core challenge determined in this case by isotopic decay chains, tight fabrication tolerances, material accounting protocols, and high capital costs amortized over small batches of fuel for reactors that have failed to become commercially viable.

France has run the world’s most ambitious civilian reprocessing program for the better part of a century and extended its uranium utilization by roughly 10% at the fleet level. This is a meaningful achievement but far from being transformative.

Nuclear energy lives permanently in this tension. It must bridge the gap between compelling narratives and the grinding cost and difficulty of the engineering.

Reprocessing has arrived at the destination the physics and economics permitted, which turned out to be considerably short of where the dream was pointing.

The complexity of conventional oil sits at the importer’s end in multi-billion dollar refineries which take years to build.

LNG is almost the opposite: its complexity sits at the exporter’s end, locked inside exquisitely engineered liquefaction infrastructure. On the importer’s side warming the liquid back to its gaseous state requires little more than running seawater over a heat exchanger.

The Germans demonstrated this at breakneck speed during the energy crisis of 2022. They built 5 floating storage and regasification units, essentially modified LNG tankers moored offshore. The fastest was stood up in under seven months.

Once regasified the pressure is managed, a pipeline is run to a combined cycle gas turbine, and voila you have electricity. Those power plants are assembled in 24 to 36 months from factory-built components with very low construction risk. They achieve close to 60 percent thermal efficiency, making them the most thermodynamically elegant large-scale power plants ever constructed.

The complexity on the production side is a different matter entirely. Each liquefaction train at Ras Laffan represents roughly $7 billion in capital investment. The process reduces its volume by roughly 600 times through cryogenic cooling, getting it down to the minus 162 Celsius threshold where it occupies a manageable volume for ocean transport.

Subscribe now

This is the asymmetry that explains why so many countries made what seemed like rational energy security bets on LNG. The capital burden on the importing side was manageable and the long term contracts relatively affordable. Supply during an era of open sea lanes and reliable contracts, looked stable.

Unlike crude oil, where pricing is anchored to deep, globally traded benchmarks and a highly liquid spot market, LNG remains structurally tied to long-term bilateral contracts necessary to cover the high capital cost of liquefaction facilities.

Today roughly 60% of global LNG volumes are committed under such contracts, leaving a relatively thin pool of uncontracted supply. Most cargoes are pre-allocated, so a country reliant on Qatari volumes cannot readily switch to Australian or U.S. supply at short notice. In a global supply crunch these buyers are pushed into the spot market, where competition for a relatively thin pool of uncommitted cargoes drives prices sharply higher.

Even as the U.S. brings new liquefaction capacity online, LNG supply remains slow to adjust. New trains are costly and can take close to a decade from initial planning to first cargo, leaving limited spare capacity to absorb sudden disruptions.

The 2022 European gas crisis offered a deceptive lesson. Germany solved it by building receiving infrastructure fast, which made LNG look resilient. That was however an importing problem, not a production problem. Global liquefaction capacity was intact and US production was surging. The receiving end of LNG bends to political will, tight timelines and emergency permitting. Destroyed liquefaction infrastructure does not.
